16

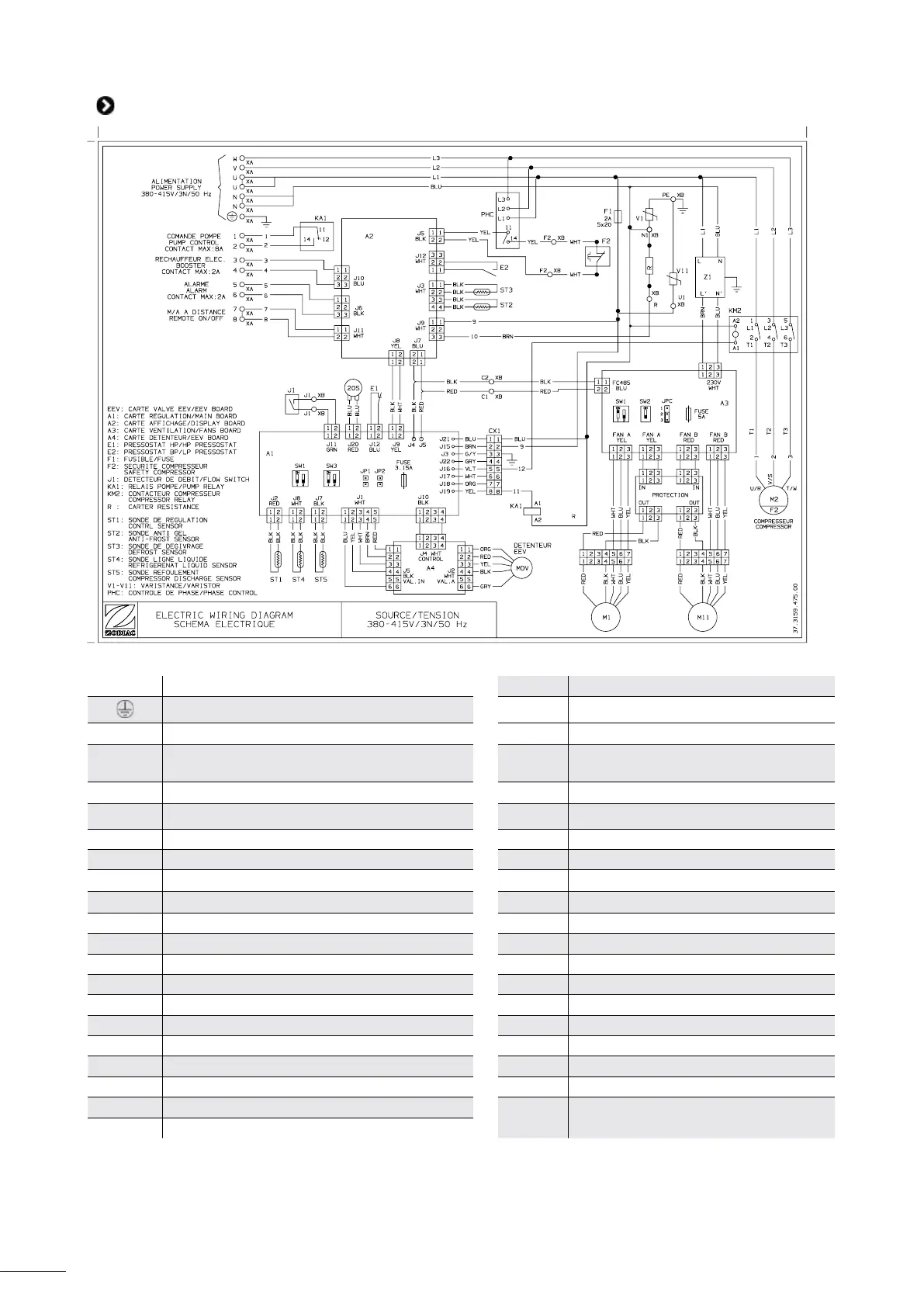

4.4 I Wiring diagram
U-V-W-N Power supply (380-415V/3N/50Hz) PHC Phase order controller
Earth R Compressor casing resistance
1-2 Pump command (8A contact maximum) ST1 Water regulaon sensor
3-4
Electric heater command (2A contact
maximum)
ST2 An-freeze sensor
5-6 Alarm command (2A contact maximum) ST3 Defrost sensor
7-8 Remote "on/o" contact ST4 Fluid line sensor
20S 4-channel valve coil ST5 Compressor backow sensor
A1 Regulaon board V1-V11 Varistor
A2 Display board Z1 Filter
A3 Venlaon board BLK Black
A4 Release board BLU Blue
E1 High pressure switch BRN Brown
E2 Low pressure switch G/Y Green/Yellow
F1 2A 5x20 electronic board protecon fuse GRN Green
F2 Compressor internal safety GRY Grey
J1 Flow controller ORG Orange
KA1 Pump relay RED Red
KM2 Compressor contact VLT Violet
M1-M11 Venlator motor WHT White
M2 Compressor motor YEL Yellow
MOV Electronic regulator
