14
2.5.3 Electrical connec on steps
• Iden fy the func ons to be connected and locate the posi on of the cable clamp, see “2.5.2 Iden fying
the func ons to be connected”.
• Check that the cables used comply with the intended use and with the regula ons in force.
• Iden fy the input for each desired func on at the bo om of the control box:
pH = blue
pH = blue
ORP = yellow

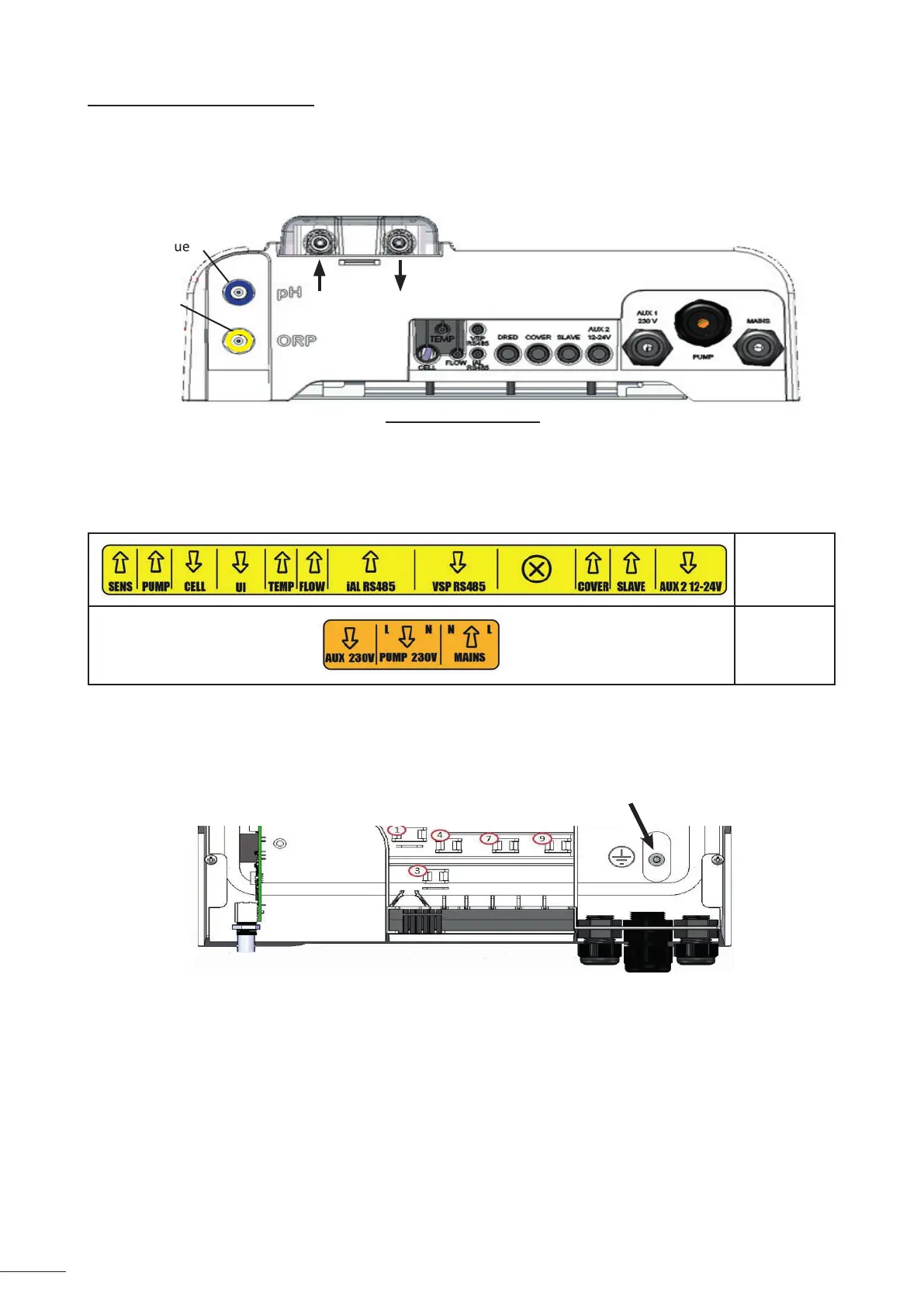

View from below of a control box with an installed module
• Pass the cable into the associated cable gland or pierce a hole in the PVC diaphragm (made of rubber) using
a screwdriver of an appropriate diameter.
• Iden fy the terminal block dedicated to the desired func on using the iden ca on zones:
Low-voltage
part
High-voltage
part
• Install a cable clamp (supplied) to mechanically hold the cable against the appliance's frame; the position
of the cable clamp is shown, see “2.5.2 Identifying the functions to be connected”.
• If the lter pump (single- or variable-speed pump) is connected to the chlorinator, it must be grounded
using the dedicated grounding stud by crimping an appropriately-sized lug for the wire (not supplied).
