Ei3 Saltwater Chlorinator | Installation Manual
Section 3. Plumbing
The cell must be plumbed in a position that is
accessible for maintenance and within 2 meters of
the controller. The cell should be the last piece of
equipment in the circulation system. The cell must
be installed horizontally, levelandwithcorrectflow
orientation, see Figure 3.
1. If you intend to plumb the cell on a bypass,
the bypass must be equipped with Isolation
valves, see Figure 3.
2. Plumb the cell inlet and outlet on vertical
lengths of 50 mm PVC pipe (if using 40mm
pipe, use the provided 40mm union adaptors).
The cell inlet and outlet ports are 11.5 cm
apart, see Figure 2. The inlet of the cell is
on the side closest to the electrical lead, see
Figure 4.
3. Glue the cell directly onto the pipes.
4. Double check cell orientation. The cell inlet is
closest to the cell electrical lead.
INLET
OUTLET
MENU
OK
BOOSTLOW
SALT INFO
3

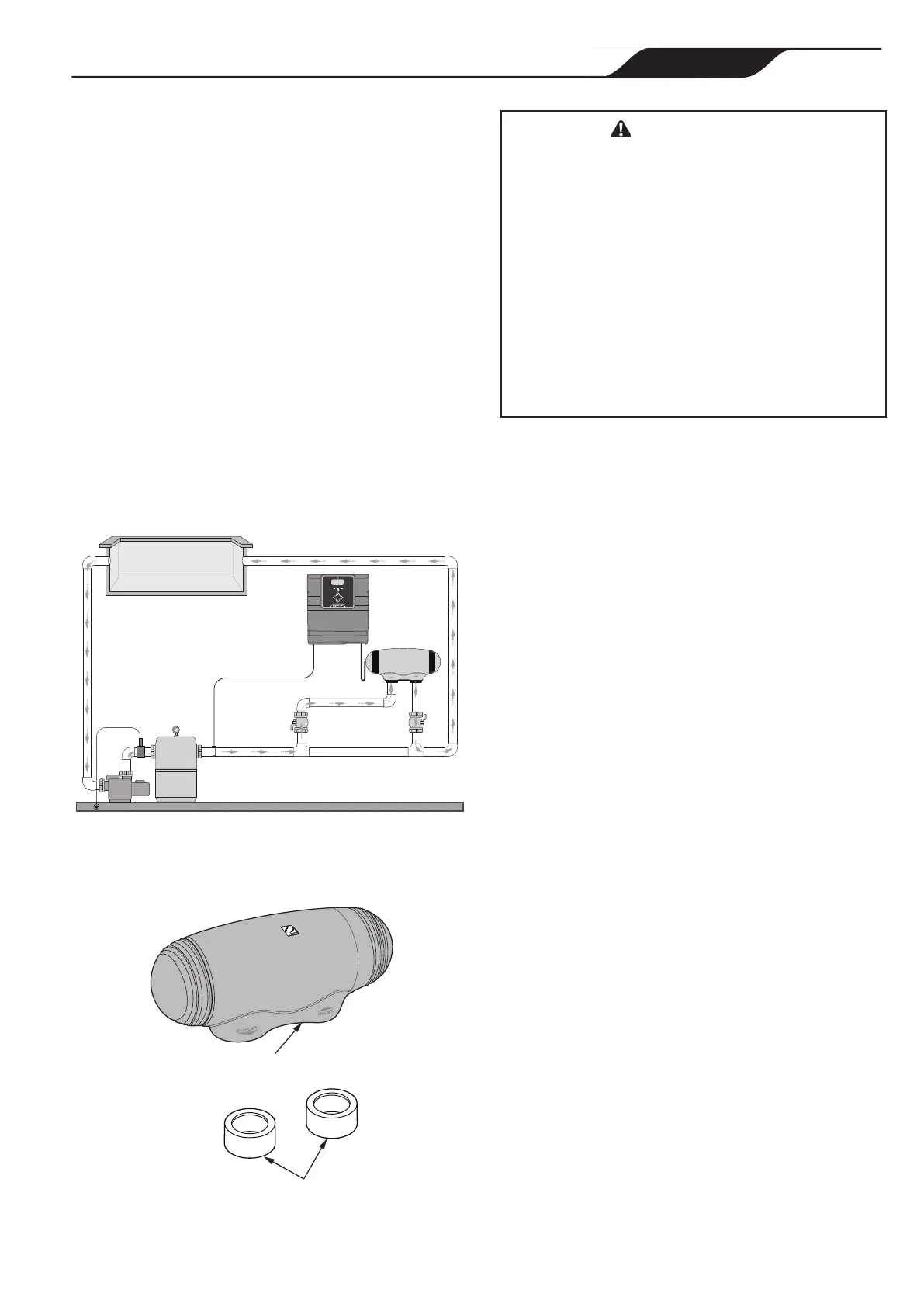

Figure 3. Plumbing Cell Only
Cell
Unions
Figure 4. Cell Plumbing Assembly
WARNING
• The cell must be installed horizontally and level.
Improper installation can lead to gas build up which
could result in equipment damage or serious injury.
• The cell must be the last piece of equipment on
the return line, see Figure 3.
• It is recommended in all installations that the cell is
installed on a bypass equipped with isolation valves,
see Figure 3.
• In order to avoid load loss, installing the cell on a
bypass is MANDATORY if system flow rated exceeds
300 Lpm, see Figure 3.
• If installing on a bypass, use a downstream check
valve instead of a manual valve to prevent improper
back flow into the cell.
