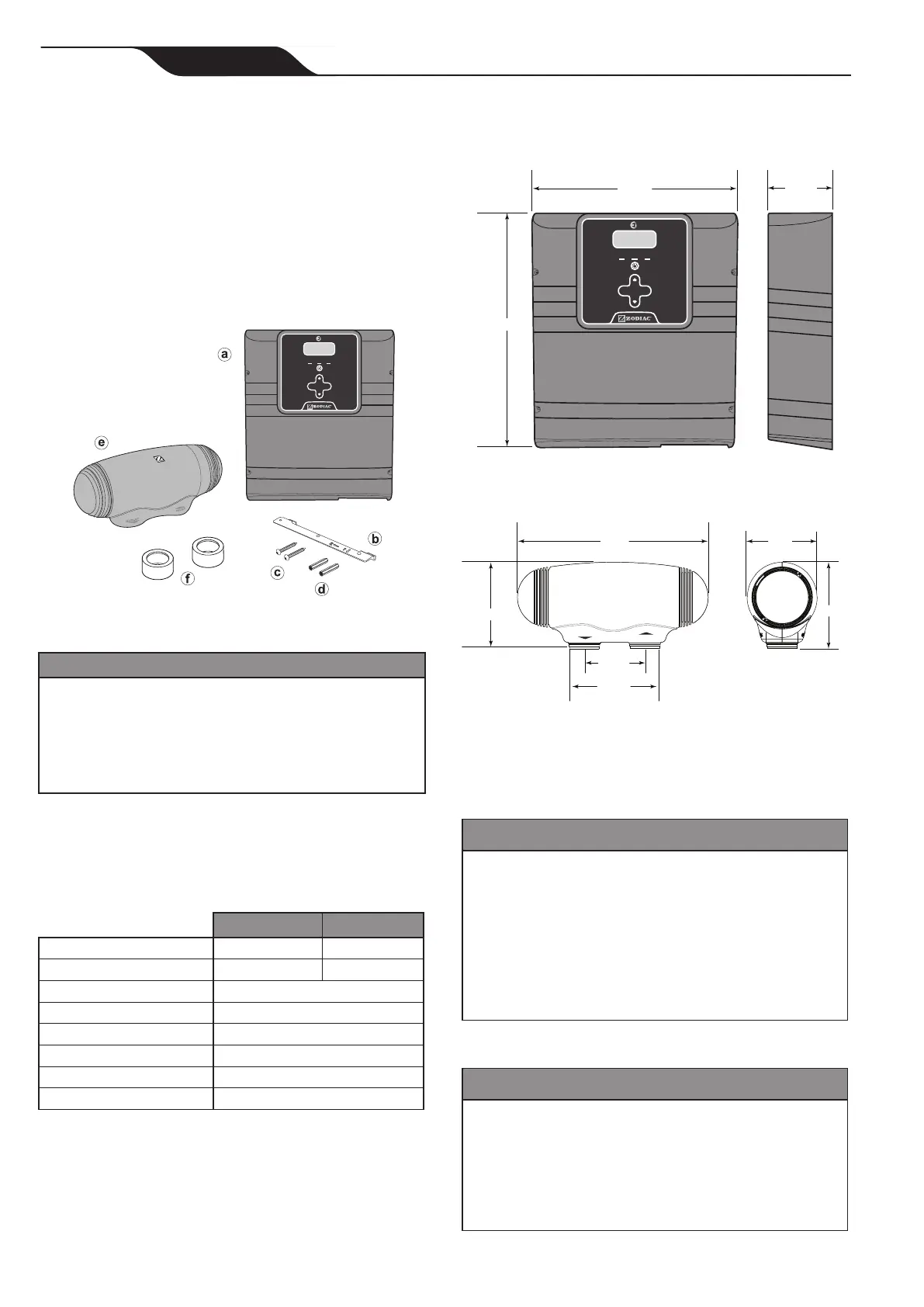

Ei3 Saltwater Chlorinator | Installation Manual
Section 2. System Overview
2.1 Contents
Before starting, check that you have the correct
parts as indicated in Table 1. If any parts are
missing or incorrect, please call your local distributor
or technical support at 1300 763 021 for assistance.
2.1.1 Salt Chlorinator System
MENU
OK
BOOST
LOW
SALT INFO
3
Ei3 Saltwater Chlorinator
a. Controller
b. Wall Mount Bracket
c. Wall Mount Screws Ø7 mm (X2)
d. Wall Mount Anchor (X2)
e. Electrolytic Cell
f. 50-40mm Reducers (X2)
Table 1. Salt Chlorinator System Contents
2.2 Specifications
2.2.1 Salt Chlorinator System
Ei3 24 Ei3 40
Nominal chlorine production 24 g/h 40 g/h
Nominal output amps 5.0 A 7.2 A
Required salt level 4000ppm
Power supply voltage 240 VAC - 50 Hz
Electric power 200 W
Protection index IP43
Flow through the cell Min. 80 Lpm
Operating water temperature 10°C - 40°C
Table 2. Salt Chlorinator System Specifications
2.3 Dimensions
2.3.1 Controller
31.5 cm
9.6 cm
36.4 cm
MENU
OK
BOOSTLOW
SALT INFO
3
Figure 1. Controller Dimensions
2.3.2 Cell
INLET
OUTLET
38 cm
11.5 cm
21.5 cm
11 cm
19.5 cm
19.5 cm
Figure 2. Electrolytic Cell Dimensions
2.4 Materials and Tools
2.4.1 Controller
Tools Needed for Installation
• Power Drill
• 7 mm Drill Bit - Hammer Drill Bit
(only necessary to drill into brick or concrete)
• Pencil or Marking Pen
• Flat Head Screwdriver
• Pozidriv Screwdriver
• Small Flathead or Slotted Screwdriver
2.4.2 Cell
Tools Needed for Installation
• PVC Cutter
• PVC Cement
• Pencil or Marking Pen
• Check Valve
• 50 mm PVC Pipe
