Tornado II & Tornado III Use, Care, and Installation Guide
TORNADO II &
TORNADO III
INSERT
PRO
Installation Instructions

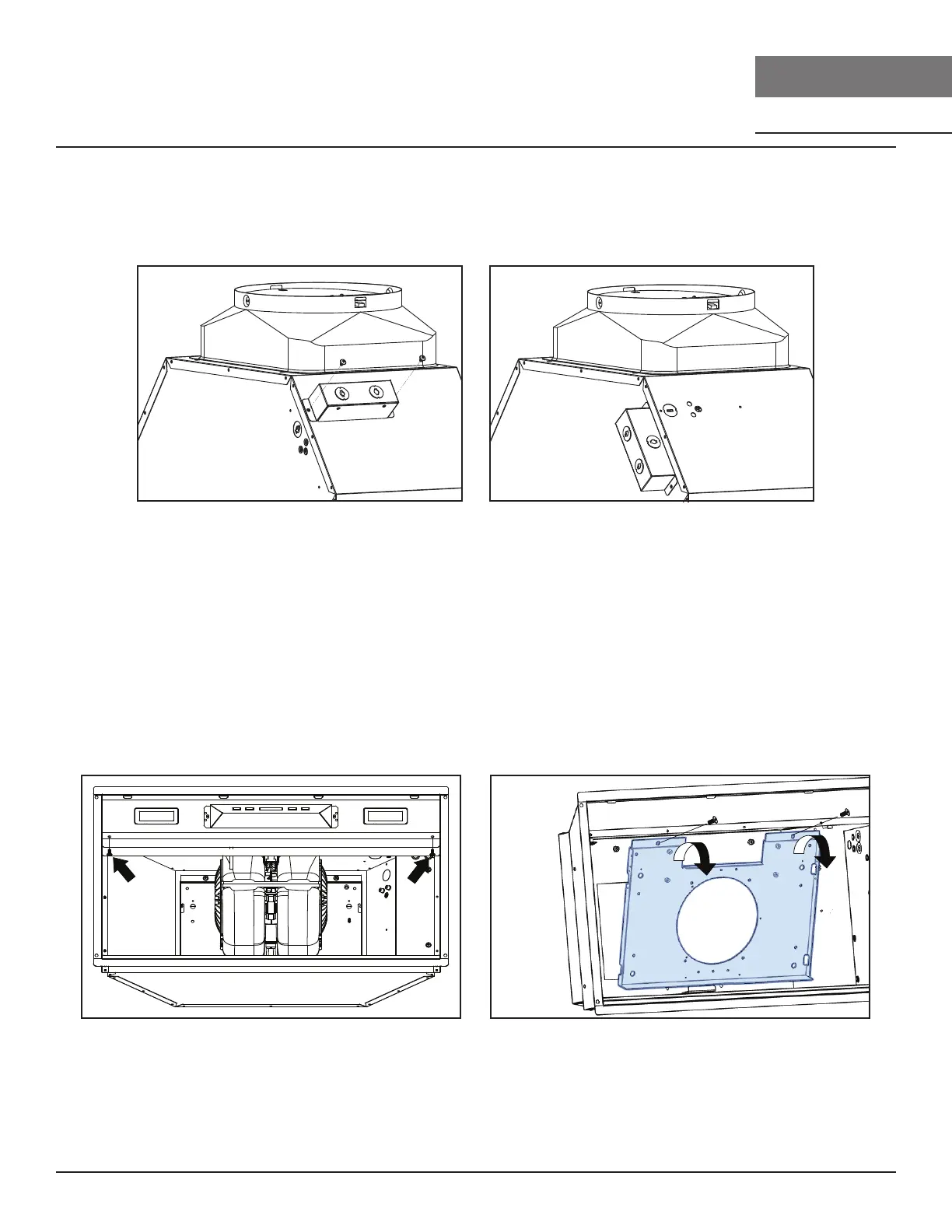

Repositioning the Electrical Box
The electrical box in the front can be repositioned to the top of the blower housing if additional
clearance is required during installation.
1. Remove the light panel by unscrewing (2)
screws.
2. Remove the single blower plate by
unscrewing (2) screws and removing the
plate o the holding bracket.
1. Remove the (2) screws from the
electrical box on top of the blower
housing.
2. Position the electrical box to the
side of the blower housing and
secure with (2) screws. Reroute the
wiring inside the hood for the new
electrical box placement.
AK83 Single & Dual Internal Blower Installation
Multiple blowers are compatible with AK83 only. CBI-290C, CBI-390A, and CBI-600A are single
internal blowers and PBI-1100B is a dual internal blower. For remote blower preparation instructions,
turn to page 16.
