9 | 100 EN
Instructions for use
ZEISS products are famous for outstanding optical performance, precision
engineering and a long service life.
Please observe the following instructions for use in order to obtain the best from
your thermal imaging camera and to ensure that it remains your constant companion
for many years to come.
Scope of supply
Product Order no.
Scope of supply
ZEISS DTI 6/20 527020-9901-000
DTI 6 Thermal imaging camera
Lens 20 mm or lens 40 mm
Neoprene strap
Carrying case incl. shoulder strap
USB cable
Optics cleaning cloth
Lithium-ion battery
Quick Guide
Safety notes
Warranty card
EULA document
ZEISS DTI 6/40 527020-9902-000
Installing/removing the battery
To change the battery, pull the grooved slide button (13) towards the tripod
thread (15), hold the sides of the cover and open the cover (14). The cover (14) is
permanently connected to the device by a hinge. The battery is inserted at an angle
with the contacts facing inwards towards the tripod thread (15). Then press the
battery completely into the compartment. Then close the cover (14) and let it snap
into place. When closing the cap, make sure that the red removal strap is not caught
between the seal and the cover. This ensures the seal tightness of the device.
TECHNICAL DATA 6/20 6/40
Optics
Focal length mm 20 / F1.0 40 / F1.0
Lens type Germanium
Detection range
(object size 1.8 m × 0.6 m; 2 p9-yd × 0.7 yd)
m (yd) 1,000 (1,090) 2,000 (2,180)
Subjective angle of view ° 40 (diagonal)
Field of view at 100 m (eld of view at 100 yd) m (ft) 38 (114) 19 (57)
Field of view ° horizontal x vertical 22 × 16 11 × 8.2
Optical magnication 1.5x 3.0x
Maximum digital zoom 10x
Zoom increments variable 0.1 – 1.0
Sensor
Sensor resolution px 640 × 480
Sensor pixel pitch μm 12
Frame rate Hz 50
Display
Display resolution px 1,024 x 768
Display type AMOLED
Electronics
Interfaces
USB: charging + data transfer
WLAN: data transfer
Bluetooth: data transfer
Battery Lithium-ion
Battery life h 6.5
External power supply 9 V /2 A, 12 V / 1.5 A (USB)
Internal memory GB 16
Video/image/live-streaming feature
WLAN frequency GHz 2.4
WLAN standard IEEE 802.11/b/g/n
Connection with other devices ZEISS Hunting app, USB
General
Ingress protection rating IP65 / IP67
Operating temperature range °C (°F) -20 / +50 (-4 / +122)
Charging temperature range °C (°F) 0 / +50 (+32 / +122)
Length × width × height mm (inch) 230 × 62 × 68 (9.06 × 2.44 × 2.68) 228 × 69 × 73 (7.36 × 2.72 × 2.87)
Weight g (oz) 690 (24.3) 755 (26.6)
Subject to changes in design and scope of supply due to technical improvements.
Observation with and without glasses
Thanks to the extendible eyecup (9), the thermal imaging camera can be used with
or without glasses. It oers a full eld of view in both cases.

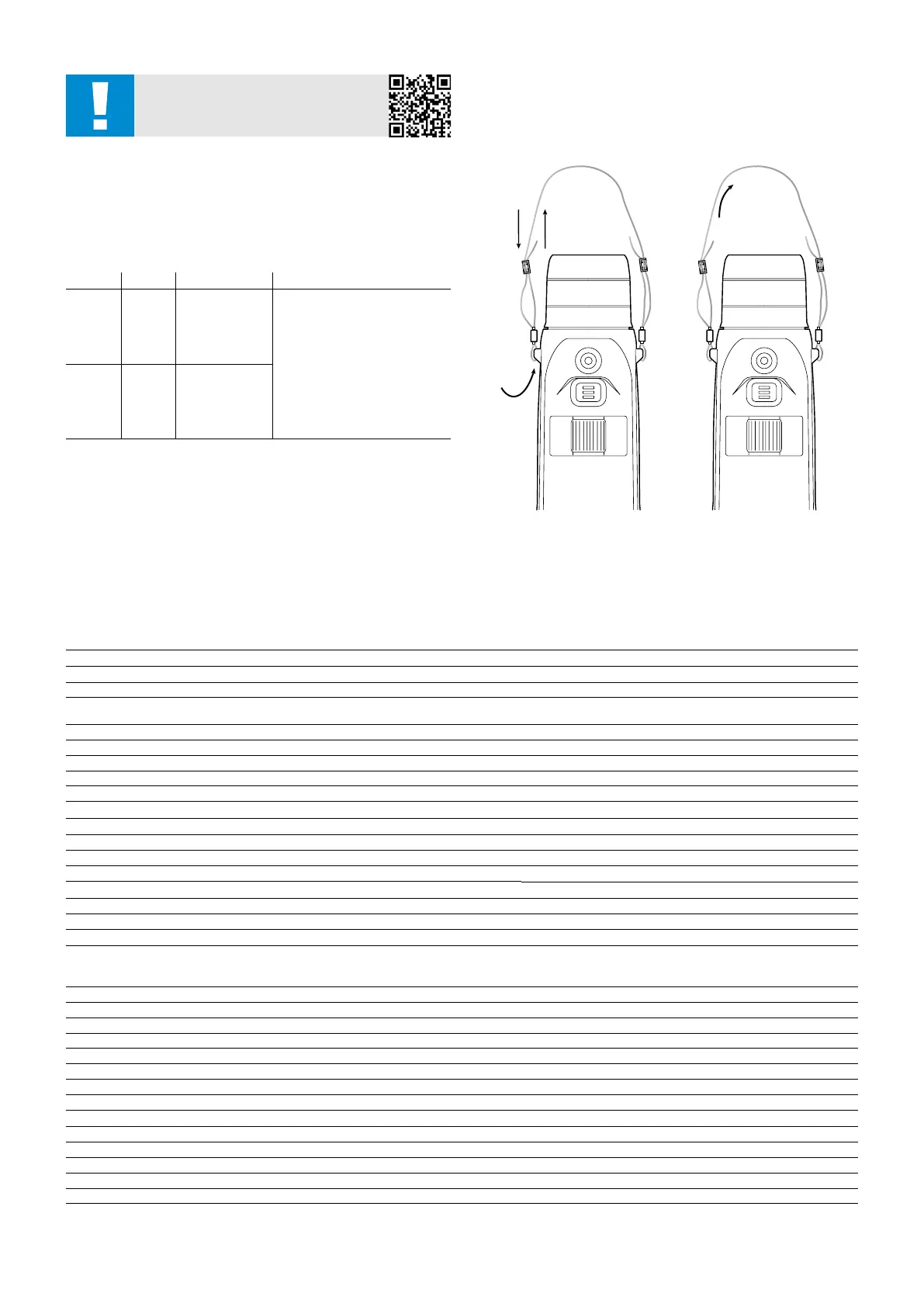

Attaching the carrying strap
WARNING!
Please note the safety instructions and regulatory information.
They can also be accessed at:
http://www.zeiss.com/hunting/manuals
