16 | 225 EN
([WHUQDO/RFNLQJ:LQGDJHIRU=(,66&RQTXHVW9[[
and 6-24x50
,I\RXU=(,66&RQTXHVW9ULıHVFRSHLVHTXLSSHGZLWKWKH([WHUQDO/RFNLQJ:LQGDJH
you can react quickly and easily to crosswinds and adjust the lateral drive accordingly
without removing the reticle adjustment.
The rotary knob (24) features a linear graduation. The distance from interval to
interval is one click which corresponds to 1/4 MOA. Click stops prevent unintended
adjustment.
If the ballistic values for an accurate aiming at 100 yds/m are known, the number
of required clicks can be directly calculated and noted to compensate for the wind-
related lateral deviation on the various distances.
Note: A stop in the external locking windage prevents downward adjustment past
WKHPDUN

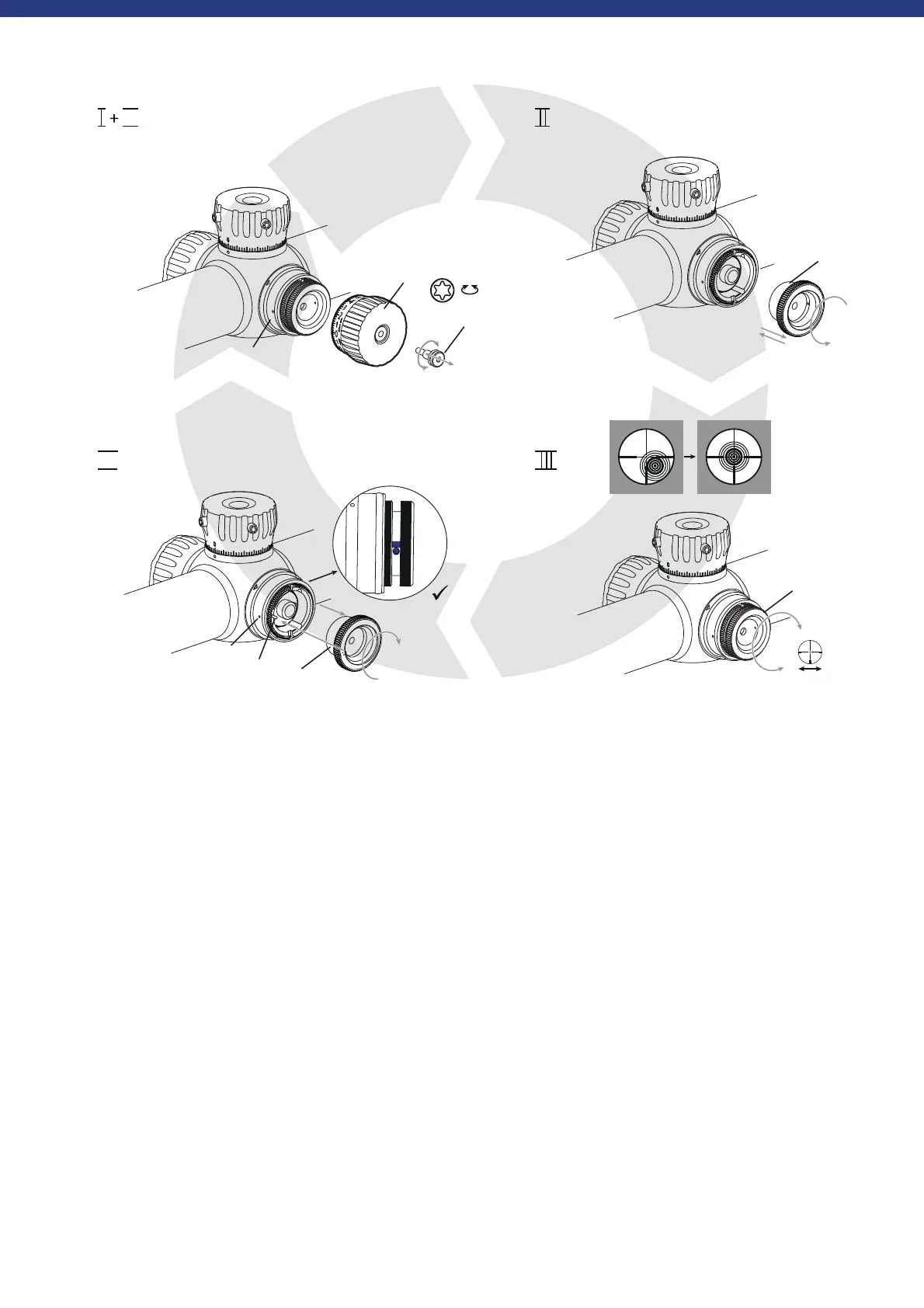

Firing the weapon with External Locking Windage:
Proceed as follows for a lateral shot correction past the zero mark:
External Locking Windage I Unscrew the screw (23)DQGSXOORĴ
adjustment knob (24).
External Locking Windage II Pull the driver (27) from the locking
mechanism, turn it counterclockwise (180°)
and push in. It is now possible to make
a correction in the desired direction again.
This can be performed directly with
the driver (27).
External Locking Windage III If the weapon shoots to the left,
it requires a correction to the right, in other
words turn the driver (27) counterclockwise.
If the weapon shoots to the right,
it requires a correction to the left, in other
words turn the driver (27) clockwise.
After the weapon has been aligned at 100 yds/m:
External Locking Windage IV Lift the driver (27) out of the locking
mechanism and set it so that the stop pin
of the driver (27) lies on the stop pin (31) of
the locking ring (32), as shown in Fig. IV.
External Locking Windage V Set the adjustment knob (24)VRWKDWWKH
mark is even with the index mark on the locking
ring (25). Take care not to damage the O-ring.
Retighten the adjustment knob (24) with the
screw (23).
IV
V
External Locking Windage 4-16x44 | 4-16x50 | 6-24x50
(23)
27
(27)
(27)
(31)
(32)
180°
(24)
(25)
T8
0,5 Nm
( ~ 0,37 lb fft)
