Basic Operation 2 - 5

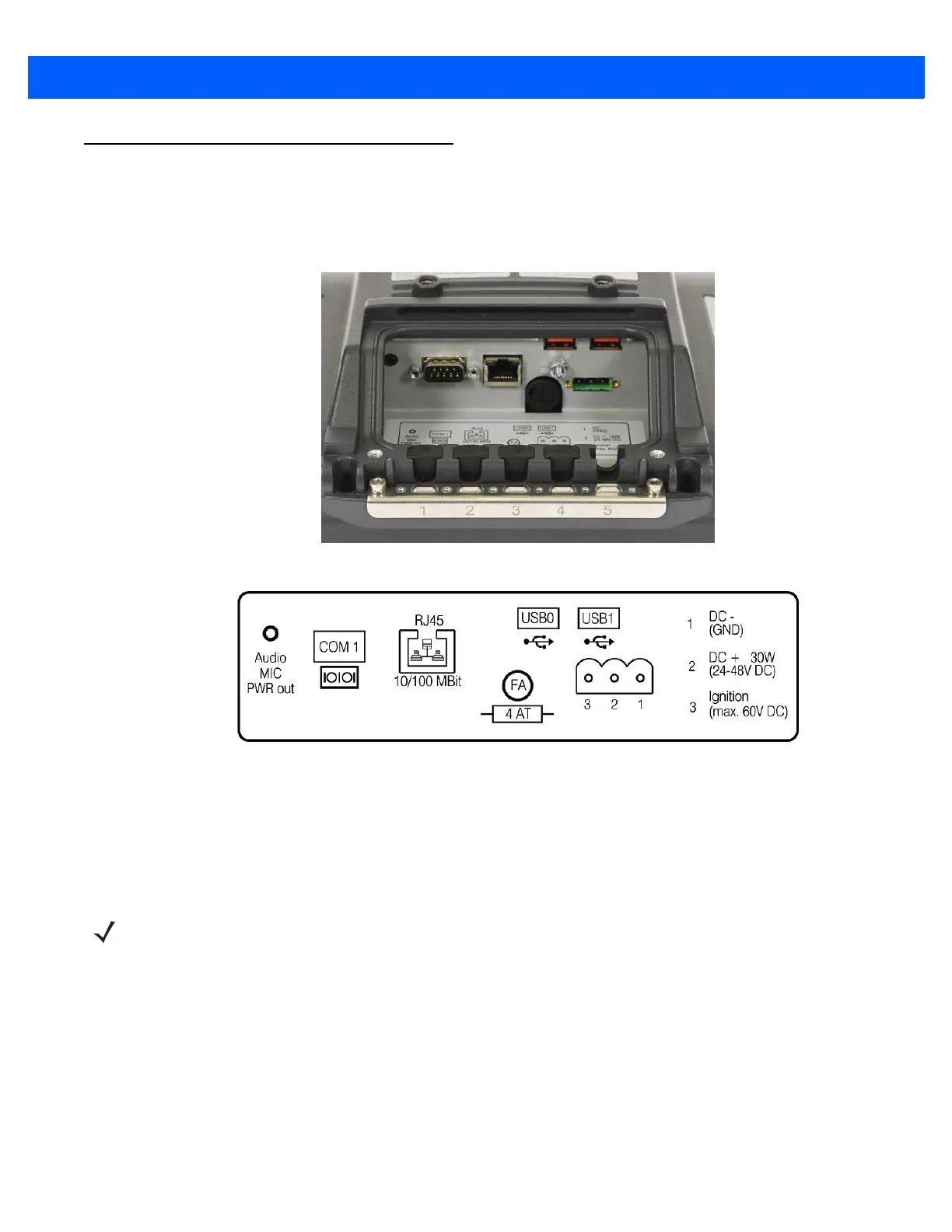

Connectors
Overview of External Connectors
Figure 2-5
Connectors overview
Figure 2-6
External connectors detailed view (example 24/48 VDC)
Adaptor Cables
Two types of adaptor cables are available for use with the 8585/8595. An extension power cable
(PN 13985–301) is available as an accessory. The power extension cable is connected to the vehicle on one
side and the adaptor cable on the other side. All cables can be used with every voltage. Zebra offers an ignition
and a screen blanking (display-off) adaptor cable. The external wire of the adapter cable must be connected to
the ground lug of the terminal and to the vehicle chassis.
The ignition adaptor cable is connected to the power input of the 8585/8595 only; the screen blanking cable
must be connected to the power input and COM1. If you require both the screen blanking and the ignition
options, you will need to contact Zebra personnel for assistance.
NOTE Refer to Wiring Vehicle Power to the 8585/8595 on page 3-3 for details about ignition and screen
blanking installation instructions.
If you require Pre-Regulator or UPS installation instructions, please contact Zebra personnel for
assistance.
