Screens
Rio3224-D3 Rio1608-D3 Reference Manual
16

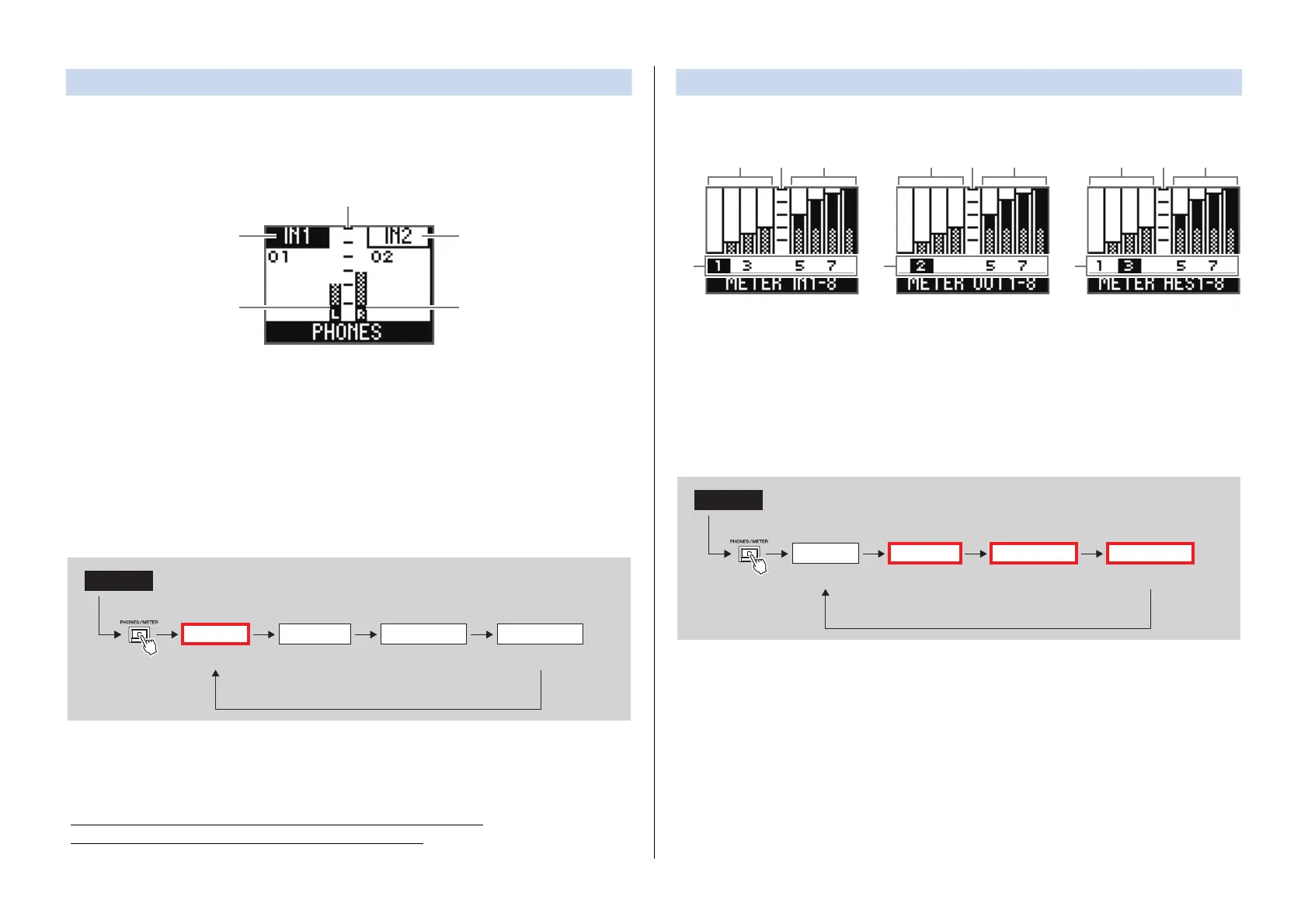

PHONES Screen
This screen enables you to switch the audio assigned to the PHONES OUT port.
You can select the L/R stereo source to be heard through the PHONES connector.
To achieve a monaural setting, assign the same source to the L ch and R ch, or set the R ch
to MONO. You can also select the last two channels of Dante INPUT as the source.
1 Channel number (L ch)
Displays the selected L ch number.
2 Channel number (R ch)
Displays the selected R ch number.
3 Level meter
Displays the selected L and R level meters.
4 Scale
From top to bottom: 0, −6, −12, −18, −24, −40 dB
While the home screen is displayed, press the [PHONES/METER] key to display the
PHONES screen.
Related link(s)
“Selecting the Channel(s) to be Assigned to the PHONES OUT Port
”
“Setting the Parameters for the Selected PHONES Source
”
METER Screens
The METER screens include METER IN, METER OUT, and METER AES (Rio3224-D3 only)
screens. Each screen displays a level meter.
1 Level meter
Displays the level meter for each channel.
2 Channel number
You can select the channel number by turning the encoder with switch. The selected
channel number is highlighted.
3 Scale
From top to bottom: 0, −6, −12, −18, −24, −40 dB
While the home screen is displayed, press the [PHONES/METER] key to display the
PHONES screen. Press the [PHONES/METER] key repeatedly to switch screens.
NOTE
• On the Rio3224-D3, pressing the [PHONES/METER] key repeatedly switches among the
PHONES screen, INPUT 1-8 screen, INPUT 9-16 screen, INPUT 17-24 screen, INPUT 25-32
screen, OUTPUT 1-8 screen, OUTPUT 9-16 screen, and OUTPUT AES 1-8 screen in this
sequence.
• On the Rio1608-D3, pressing the [PHONES/METER] key repeatedly switches among the
PHONES screen, INPUT 1-8 screen, INPUT 9-16 screen, and OUTPUT 1-8 screen in this
sequence.
2
4
1
33
PHONES METER IN METER OUT METER AES
HOME
INPUT 1-8
INPUT 9-16
INPUT 17-24*
INPUT 25-32*
OUTPUT 1-8
OUTPUT 9-16*
METER AES 1-8*
(*Rio3224-D3 only)
L/R display
31 1
2
31 1
2
31 1
2
PHONES METER IN METER OUT METER AES
HOME
INPUT 1-8
INPUT 9-16
INPUT 17-24*
INPUT 25-32*
OUTPUT 1-8
OUTPUT 9-16*
METER AES 1-8*
(*Rio3224-D3 only)
L/R display
