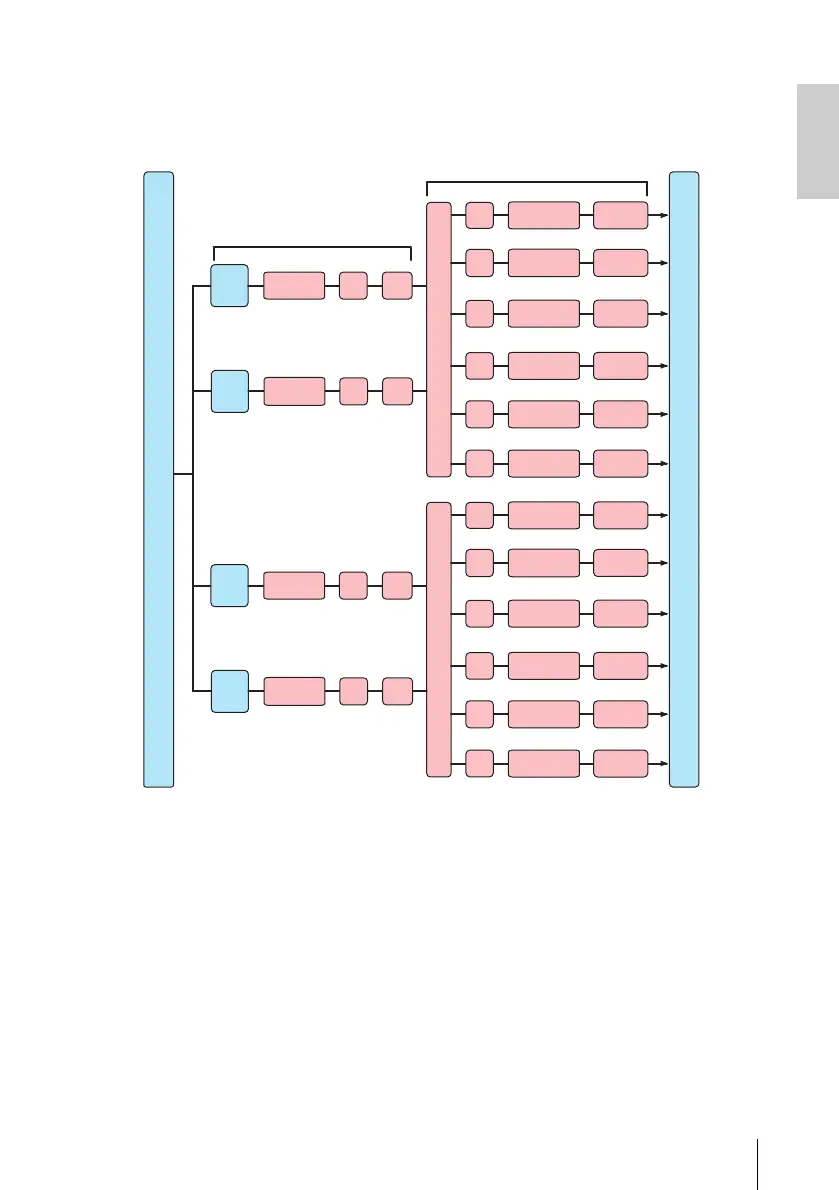

Contour Configuration Signal Flow (Crossover)
In Contour mode (crossover), the MY8-LAKE provides 4x12 crossover modules as shown in
the diagram below.
EQ
EQ
Delay
Crossovers
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
Gain
Polarity / Mute
EQ Delay
Gain
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
Input
Mixer A
Input
Mixer B
EQ
EQ
Delay
Crossovers
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
Gain
Polarity / Mute
EQ Delay
Gain
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
Input
Mixer C
Input
Mixer D
Input Routers 1-8
Output Routing
Module Input Section
Module Output Section
