10 MY8-LAKE Owner’s Manual
Contour/Mesa Configuration Signal Flow

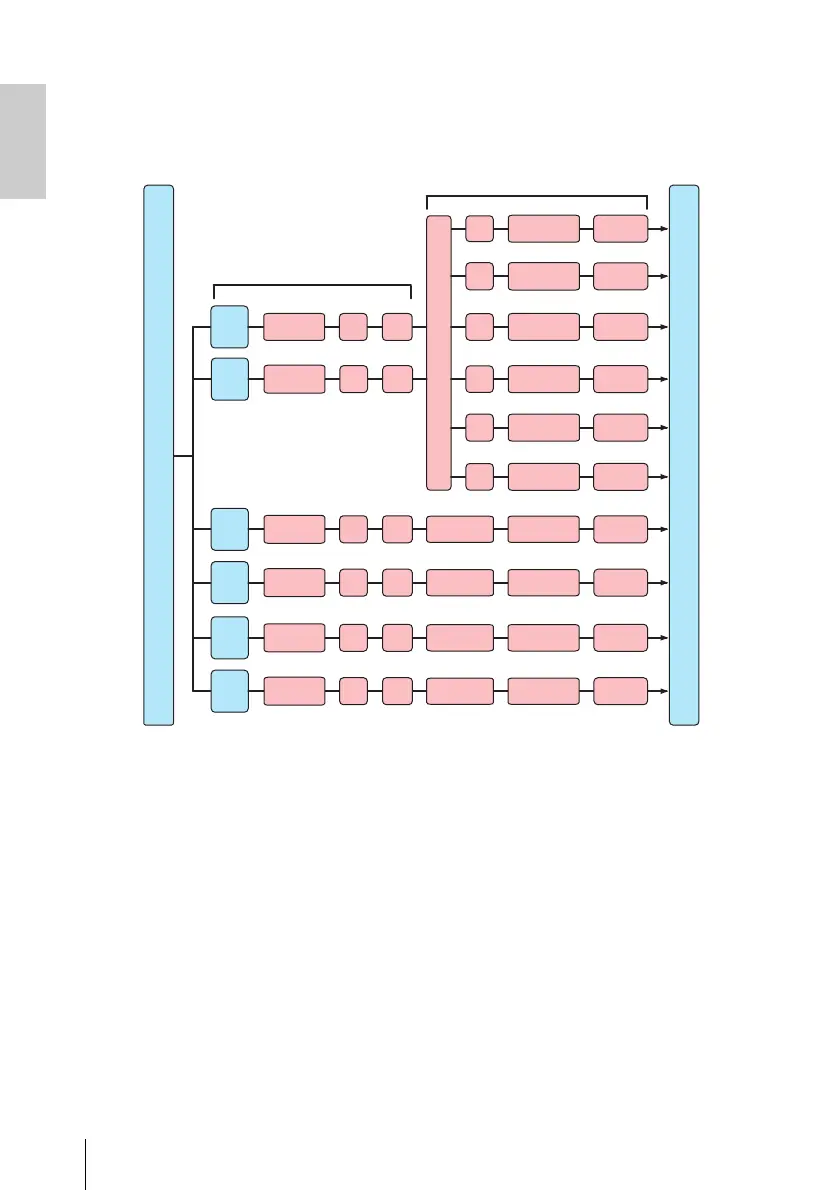

In hybrid mode (Contour/Mesa), the MY8-LAKE provides 2x6 crossover modules and 4x4
system EQ modules as shown in the diagram below.
Frames and Modules
The term “Frame” is used to represent a physical Lake device (e.g., the MY8-LAKE card).
The MY8-LAKE frame can contain two to eight audio processing units referred as “Modules.”
In Mesa mode (default) the MY8-LAKE Frame contains eight modules, labeled as modules
A – H. Each Mesa module provides a single channel of EQ, levels and dynamics processing
and only uses the module type of “Mesa EQ.”
In Contour mode the MY8-LAKE Frame contains up to four modules labeled A – D; in Contour/
Mesa mode there are up to six modules labeled A – F. The number of modules available in a
Contour or Contour/Mesa mode is dependent on the Contour module types in use.
Contour modules can be configured in many different ways, such as 2-, 3-, 4-, 5-, and 6-way
Classic Crossovers (Bessel, Butterworth, Linkwitz-Riley), 2-, 3-, and 4-way Linear Phase
Crossovers, or as full bandwidth Auxiliary Outputs. For a Contour module example, refer to the
section “XOVER Screen” later in the Quick Start Guide.
EQ
EQ
Delay
Crossovers
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
Gain
Polarity / Mute
EQ Delay
Gain
Polarity / Mute
EQ Delay
Gain
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
EQ
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
HPF/LPF
EQ Delay
Gain
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
HPF/LPF
EQ Delay
Gain
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
HPF/LPF
EQ Delay
Gain
LimiterMax
RMS/Peak
Gain / Delay
Polarity / Mute
HPF/LPF
Input
Mixer A
Input
Mixer B
Input
Mixer C
Input
Mixer D
Input
Mixer E
Input
Mixer F
Input Routers 1-8
Output Routing
Module Input Section
Module Output Section
