Part of ASSA ABLOYP/N YRD400-KF-0022 Rev ATrusted every day
9

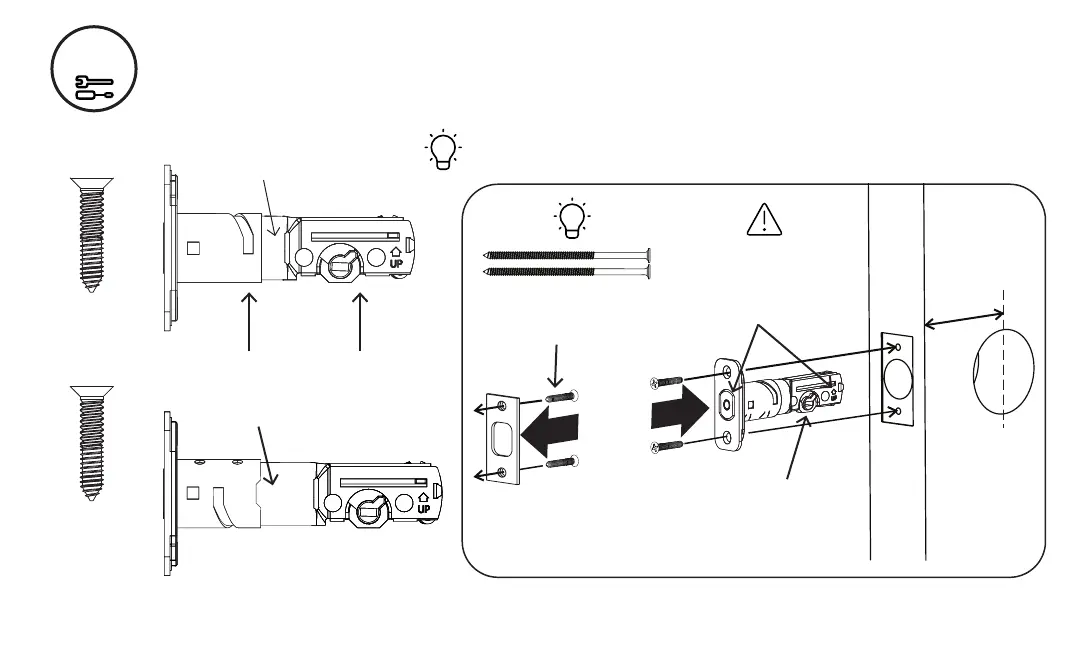

Install Deadbolt Latch and Strike Plate
3
*Correct deadbolt latch length is based on backset. Choose 2-3/8" or 2-3/4".
Door Checker measurements E and F can help you verify your backset measurement.
2-3/8"Backset, Out of Box
2-3/4" Backset, optional
*Backset
To Adjust:
Twist neck while holding body stable.
If the deadbolt latch is extended,
use your fingers or a small
flathead screwdriver to rotate slot
until deadbolt latch is retracted.
Security screws can be
used here, in place of the
small strike plate screws.
Deadbolt latch must be
in unlocked position. UP
arrow must face upwards.
Fr
ame
Door
Align
strike
with
deadbolt
latch
2-
3
/
8
2-
3
/
8
2-
3
/
4
x2
For Deadbolt
Latch
(Actual Size)
For Strike Plate
(Actual Size)
x2
