Verifying Bore Face Measurement for Exterior Keypad
4
Install the lock with the door open.
Do not close until all steps are completed.
Measurement G on the Door Checker will help
verify your bore face measurement.

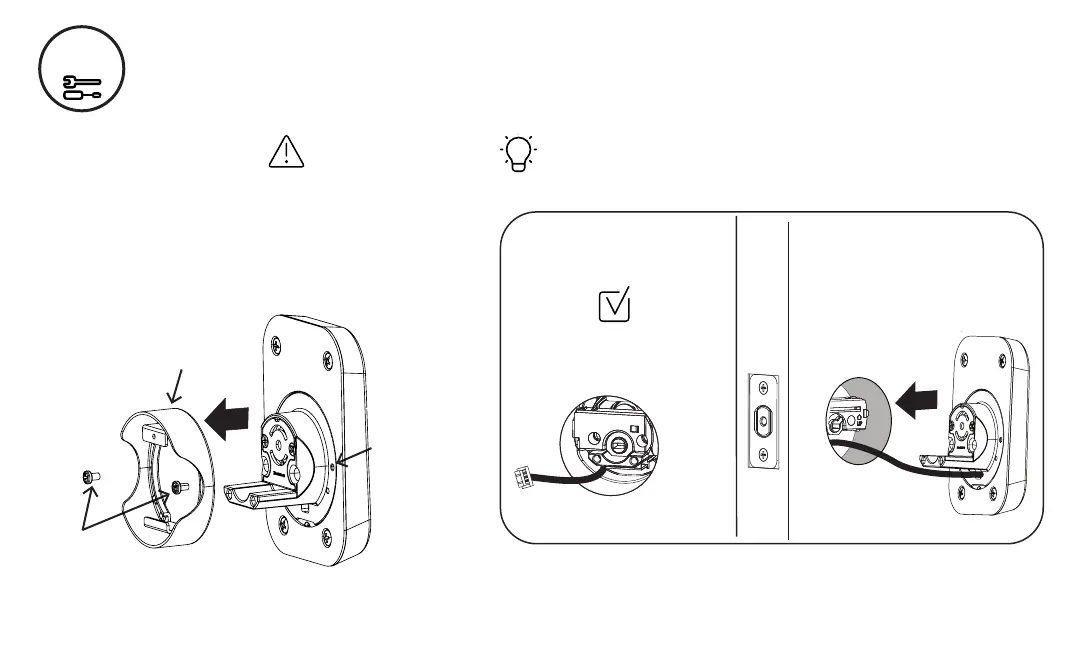

If hole is less than 2-1/8", remove adapter by
unscrewing the two screws on either side, using a
Phillips #2 screwdriver.
Inside of Door Outside of Door
2 screws
installed
here, one on
each side
Adapter
Screws
Top of Adapter
Once confirming your bore face measurement is correct, you are ready
to install the Mounting Plate and Keypad.
Feed keypad wire under
deadbolt latch.
