VR-5000 OPERATING MANUAL 37
Band Scope Operation
The Band Scope allows viewing of operating activity on channels above or below the
current operating channel in the VFO mode.
The display will indicate the relative signal strengths of signals on channels immediately
adjacent to the current operating frequency. A convenient “Channel marker” can be used to
zero in on one of the stations displayed; when you turn off the Band Scope, the VR-5000
will be set to the frequency set by the Channel Marker.
To activate the Band Scope
1. Set the radio to the VFO mode by pressing the
[
V/M
(
MW
)]
key, if necessary.
2. Press the
[
BS
(
BS SET
)]
key momentarily to activate the Band Scope.
3. When the Band Scope is activated, press the
[
M/S
(
SUB SET
)]
key; you cannow move
the Channel Marker.
This allows the Channel Marker to be moved anywhere within the programmed sweep
range. When the Channel Marker is set to a frequency that may be of interest, press the
[
COPY
(
REC
)]
key; the frequency will change to that set by the Channel Marker.
4. When the Band Scope is activated, you can change the Sweep steps, which may be
adjusted using the front panel keys.
To do this, press the
[
F
]
key momentarily, then press the
[
WIDTH
(
BS STEP
)]
key to
select the sweep step from the following selections:
MODE Steps
LSB/USB/CW 1.0 kHz (fixed)
AM-N/AM 1.0/5.0/9.0/10.0/20.0/25.0/50.0 kHz
WAM 1.0/5.0/9.0/10.0/20.0/25.0/50.0/100.0 kHz
FM-N 5.0/6.25/10.0/12.5/20.0/25.0/50.0/100 kHz
WFM 10.0/50.0/100/500 kHz
5. The Sweep range is can be changed, as well. To do this, press the
[
WIDTH
(
BS STEP
)]
key to select the sweep step as follows:
MODE Sweep range
LSB/USB/CW 100/300/500 kHz
AM-N/AM 0.1/0.2/0.3/0.5/1.0/2.0/2.5/5.0/10.0 MHz
WAM/FM-N 0.5/1.0/2.0/2.5/5.0/10.0 MHz
WFM 1.0/2.0/5.0/10.0 MHz

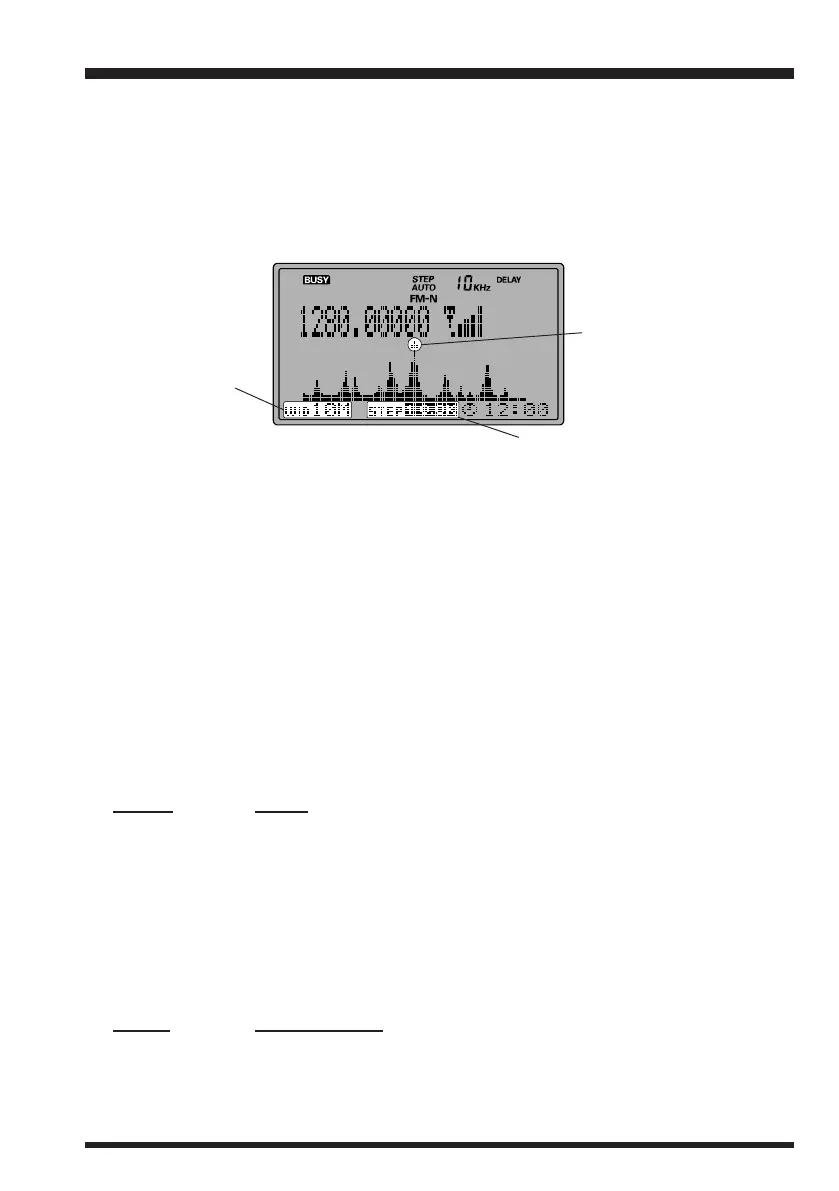

Sweep Range
Sweep Step
Channel Marker
