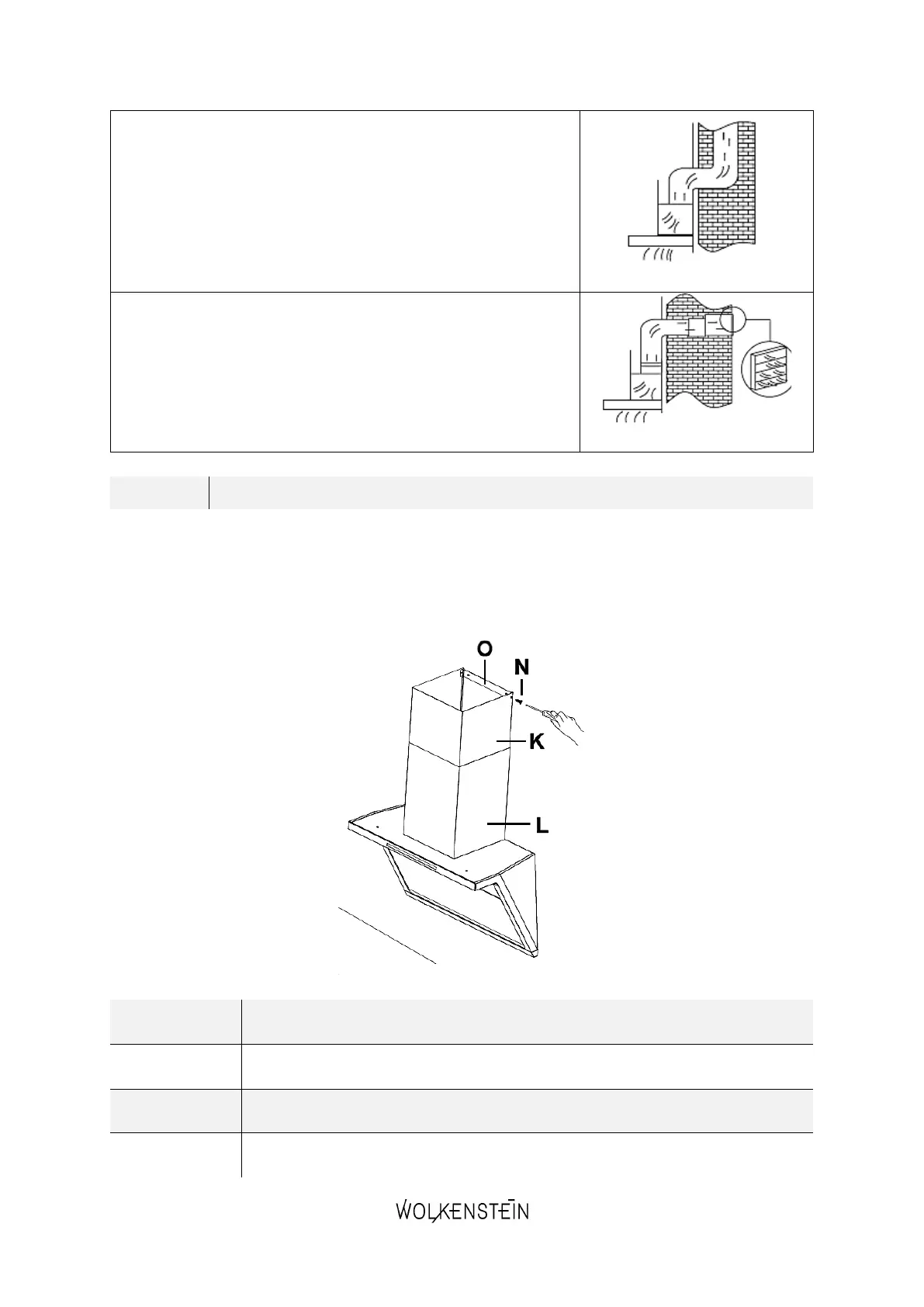

VERTICALLY: lay the exhaust hose to a roof cap*.
Fig. similar.
HORIZONTALLY: lay the exhaust hose to an exhaust
outlet equipped with an air grille*.
Fig. similar.
*
Article not included in the scope of delivery.
11. Pull out the upper chimney. Align the chimney according to the installed inner
chimney bracket (O / s. fig. below). Fix the inner chimney to the inner chimney
bracket (O / s. fig below) using two screws (N = ST 4*10 mm).
K
INNER CHIMNEY
L
OUTER CHIMNEY
N
SCREWS (ST 4*10 mm)
O
INNER CHIMNEY BRACKET
