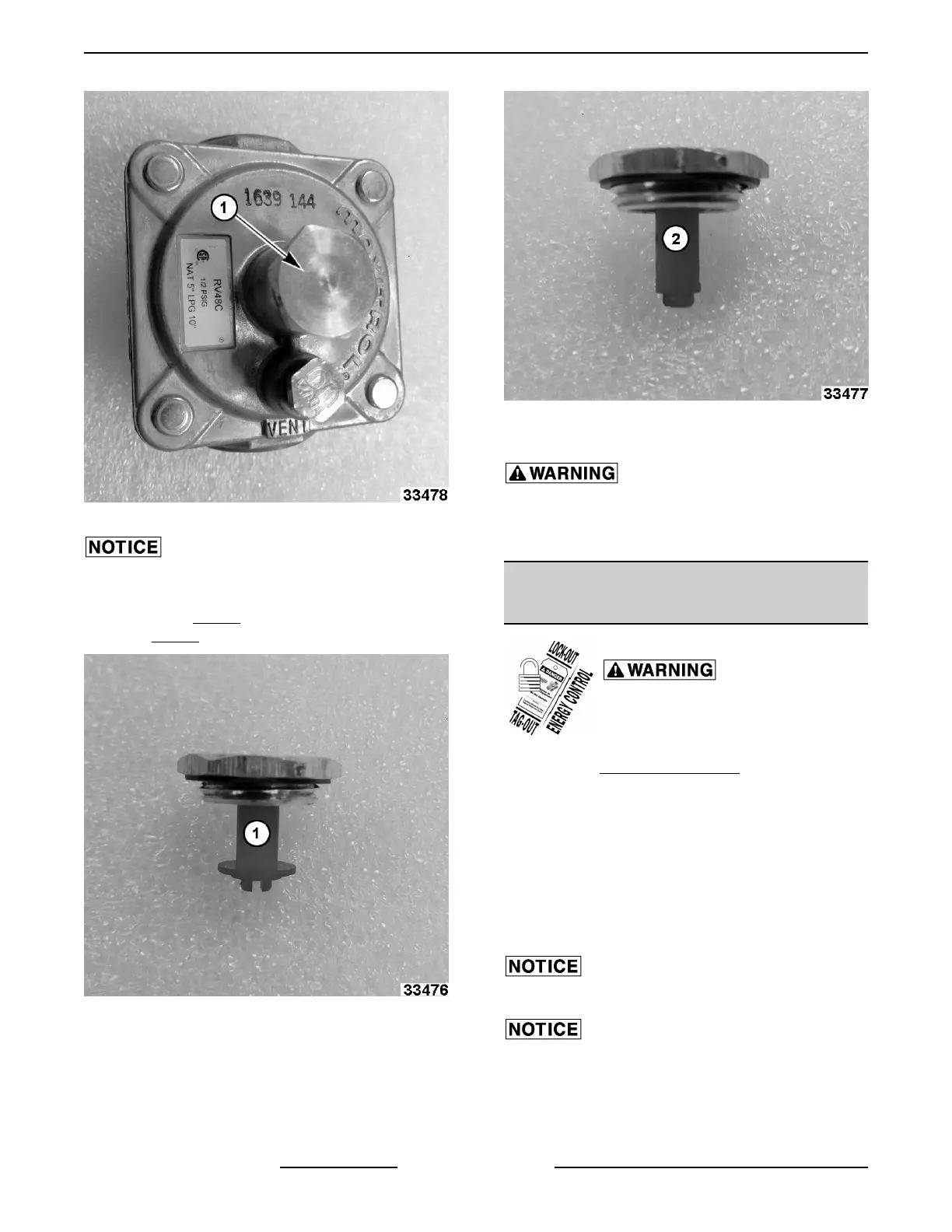

Fig. 39
Regulator piston is installed in different directions for
type of gas being used. Turn upside down to change
directions. 1, in Fig. 40, shows direction for propane
gas. 2, in Fig. 41 shows direction for natural gas.
Fig. 40
Fig. 41
3. Verify proper operation.
All gas joints disturbed during servicing must be
checked for leaks. Check with a soap and water
solution (bubbles). Do not use an open flame.
GRIDDLE PILOT ASSEMBLY AND
THERMOCOUPLE
Shut off the gas before servicing the
unit and follow lockout / tagout
procedures.
1. Remove MANIFOLD COVER.
2. Remove pilot assembly mounting bracket to
griddle burner box.
3. Remove pilot assembly mounting screws to
bracket.
4. If replacing pilot assembly, remove pilot tubing
and thermocouple frolm pilot assembly.
5. Reverse procedure to install.
Do not bend or kink capillary tube.
Verify orifice hood is aligned and centered with burner
assembly opening.
WX RANGE - 2. REMOVAL AND REPLACEMENT PARTS
F45992 (1123) Page 14 of 27
