wolfappliance.com | 9
Installation
Electrical Connection
WARNING:
For 48" (1219) models, each terminal block shall be
connected to an individual branch circuit.
Connections must be on separate circuits.

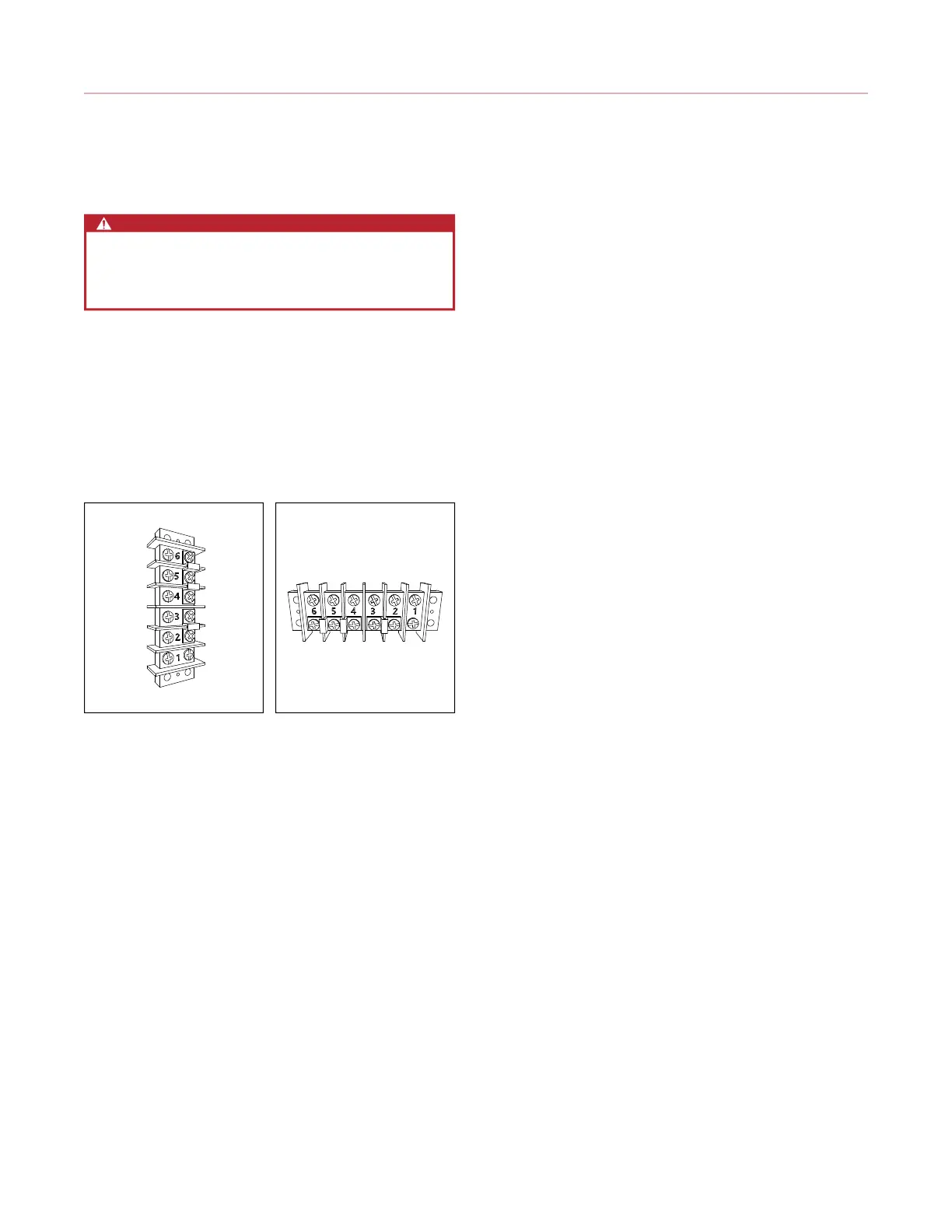

The terminal block(s) on the back of the range allow for a
3-wire or 4-wire installation. Remove the terminal block
cover(s) to expose the screws with corresponding
numbers. Route the wires through the strain relief and to
the terminal block(s).
Locate the circuit breaker labels in the literature kit and
place them on the appropriate breaker(s) at the circuit
panel.
Three-Wire Installation
1 Connect green/ground to position one.
2 Connect red/L2 to position three.
3 Connect black/L1 to position four.
4 Tighten the screws on the strain relief and install the
terminal block cover.
Four-Wire Installation
1 Connect green/ground to position one.
2 Connect red/L2 to position three.
3 Connect black/L1 to position four.
4 Install a wire nut on the white/neutral wire.
5 Tighten the screws on the strain relief and install the
terminal block cover.
All Models 48" Models Only
