the transmitted audio a few milliseconds after audio from the main sound reinforcement system speaker is
helpful. This will also help audience members who lip read.
Connecting to other Devices
The Analog LINE/MIC Input (XLR / 1/4") jack can be used with standard pro audio electronics such as standard
pro audio line level condenser microphones up to 15v or an analog line output from a mixer. The combination
jack accepts either XLR or 1/4” (TRS). This source must be configured in the menu before plugging the source
into the jack. If, for example, the MIC Input is selected, and a line level source is plugged in, it may be possible to
blow out the MIC input circuitry.
The Remote Antenna Connection can be used to connect a remote antenna to the FM+ C when the whip
antenna won’t be used (as in the case of rack-mounting) or when a larger coverage area is needed. See the
Williams AV’s 72 MHz Antenna Selection Install Guide for a full range of antenna and mounting options. NOTE:
The FCC requires this device to be used with approved, FCC 15.203 compliant antennas and be professionally
installed. Refer to Williams AV’s Antenna Selection Install Guide for compliant antennas for this product.
The Ethernet and Dante RJ-45 jacks can be used to connect the FM+ C to either a local network or directly to a
single computer or Dante device.

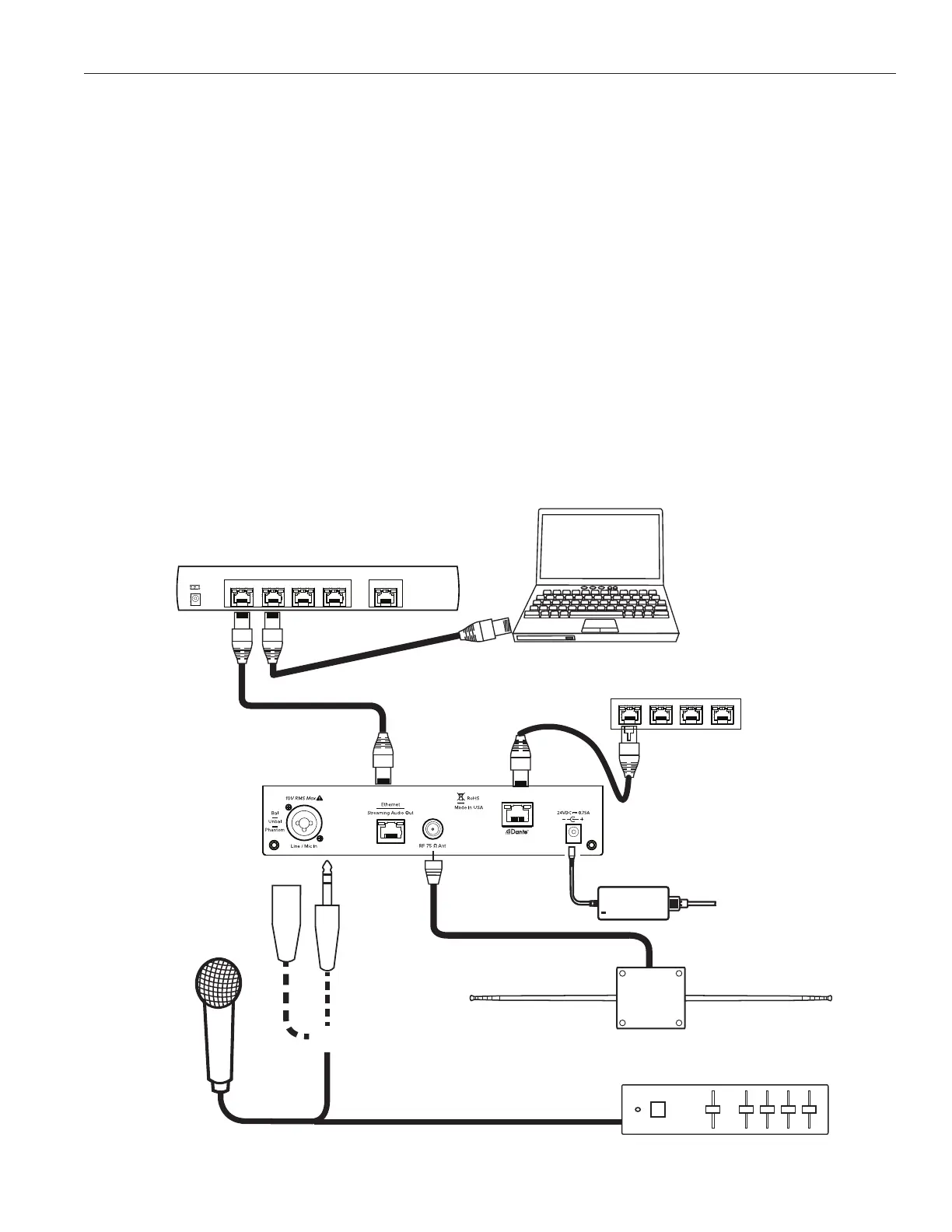

ANALOG
LINE/MIC INPUT
(XLR OR 1/4”)
BALANCED,
UNBALANCED,
OR PHANTOM.
REMOTE
ANTENNA
CONNECTION
(F-CONN, COAXIAL)
FM +
ETHERNET NETWORK ROUTER
ANALOG LINE
OUTPUT
(1/4” or XLR)
REMOTE
ANTENNA
CAT5e CABLE
MICROPHONE
(CONDENSER
OR OTHER)
ANALOG MIXER
TO AC
POWER
SOURCE
CAT5e
CABLE
LAPTOP (OR DESKTOP)
COMPUTER
REMOTE ANTENNA CONNECTION
OR CHASSIS MOUNT ANTENNA
CAN BE USED, BUT NOT BOTH AT THE SAME TIME
DANTE NETWORK (SWITCH)
DANTE AUDIO AND NETWORK
CONTROL CAN BE COMBINED
ON THE SAME NETWORK
IF DESIRED (NOT SHOWN).
