• Open the cover and lubricate the bearings.
• Ret the rollers in the reverse order as the
disassembly process.
OIL CHANGE
Change the oil after the rst 60 hours of operation. To do
this, you need to:
• Drain the waste oil. Place a used oil container under
the device and undo the screw (6). Wait until the oil
drains out. Tighten the screw.
NOTE: Waste oil must be disposed of in accordance
with local regulations.
• To pour fresh oil into the box, unscrew the oil ller
cap (4). Pour in the oil and close the ller cap.
SPARE PARTS
• 10280139 - Binder 2,5 mm
• 10280140 - Binder 3 mm
• 10280141 - Binder 4 mm
• 10280142 - Binder 4 mm
• 10280143 - Binder 8 mm
• 10530000 - glue for pellets
SOLUTIONS PROBLEMS
Problem Possible
cause
Action
Die / rollers
get stuck or
clogged.
Wrong pellet
mixture or a
wrong die for
the mixture
Stop the machine
and clean the die
/ rollers and, if ne-
cessary, modify the
mixture as descri-
bed in this manual
(see 10530000) or
reduce the amount
of mixture poured
in at once or select
the appropriate die.
Pellets are not
produced.
EN
15
NOTE !: The screws should be identically tightened. If
they are tightened too much, one of the rollers may stop
turning and / or the roller may become deformed. Also,
do not increase the pressure of the rollers by tightening
the screws in the event that the die is clogged.
LUBRICATION
NOTE: Bearings should be lubricated with bearing grease
every 8 hours of operation
• Lubricate the bearing on the main shaft with a grease
gun as shown in the gure below.
• Lubricate the roller bearings.
To prepare the rollers for greasing, follow these steps:
• Unscrew and remove the hopper and the top casing.
• Remove the rollers.
• Undo the screws as shown in the gure below.
26.10.2022
c) Press the mixture 80 to 90 times through the die,
until the granules coming out of the chute meet the
quality requirements.

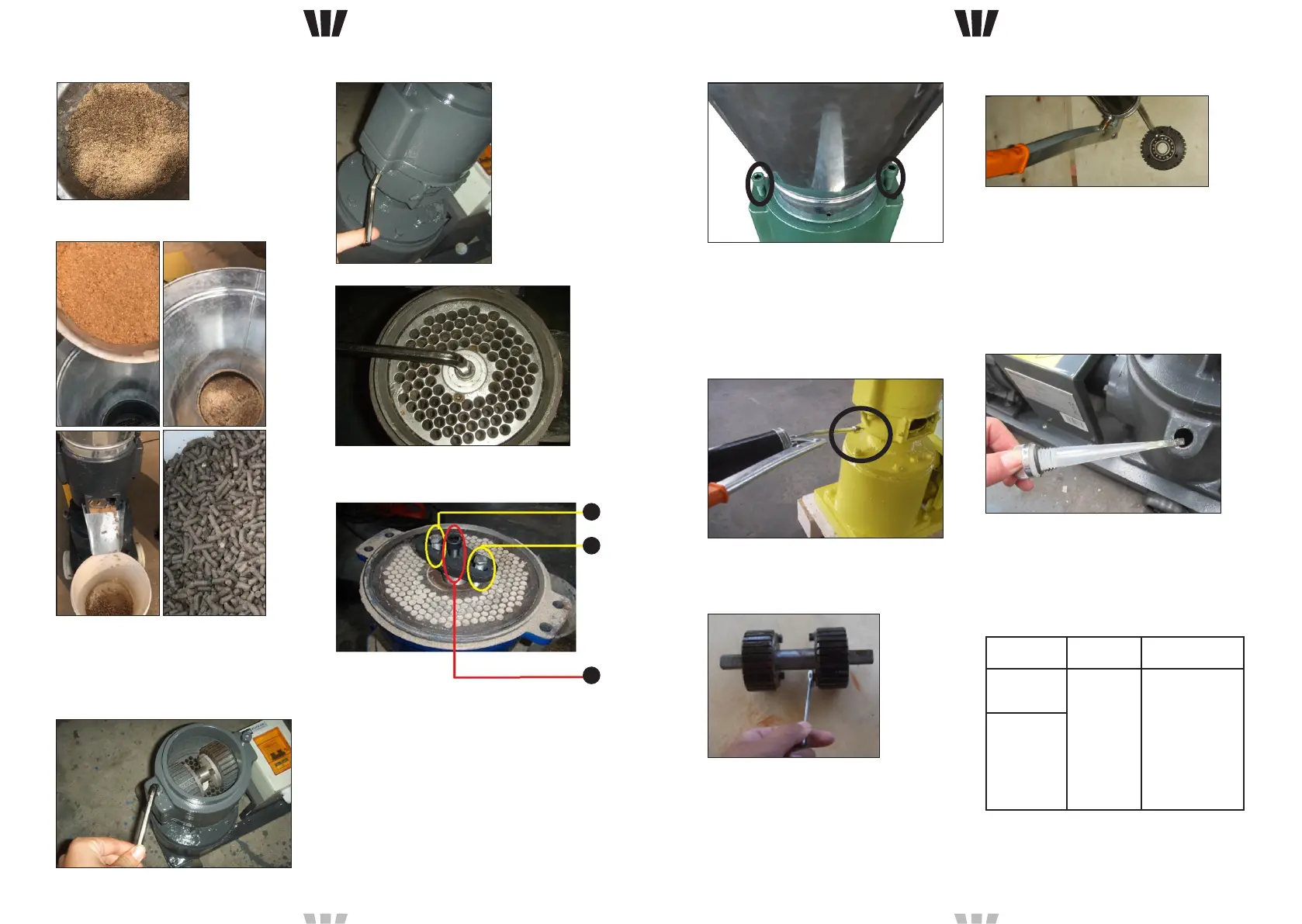

REPLACEMENT / REMOVAL OF THE DIE
To replace / remove the die, follow these steps:
• Disconnect the machine from the power supply.
• Unscrew the hopper and remove it from the machine.
• Remove the screws used to adjust the pressure
between the die and the rollers and remove the top
casing fastening screws. Remove the rollers.
14
EN
• Use an Allen key to unscrew the die.
• To remove the die, rst attach the bracket using
the screws marked as 1 and 2 in the picture. Then
slowly screw in the screw No. 3, the die will start to
rise slightly.
2
3
1
• When re-installing the die into place and re-
assembling the device, proceed in the reverse order
as during disassembly.
ADJUSTMENT OF THE ROLLERS
The distance between the rollers and the die should be in
the range of 0.1-0.3 mm. The die should be able to rotate
freely under the rollers.
The adjustment is made with the screws marked in the
drawing below.
