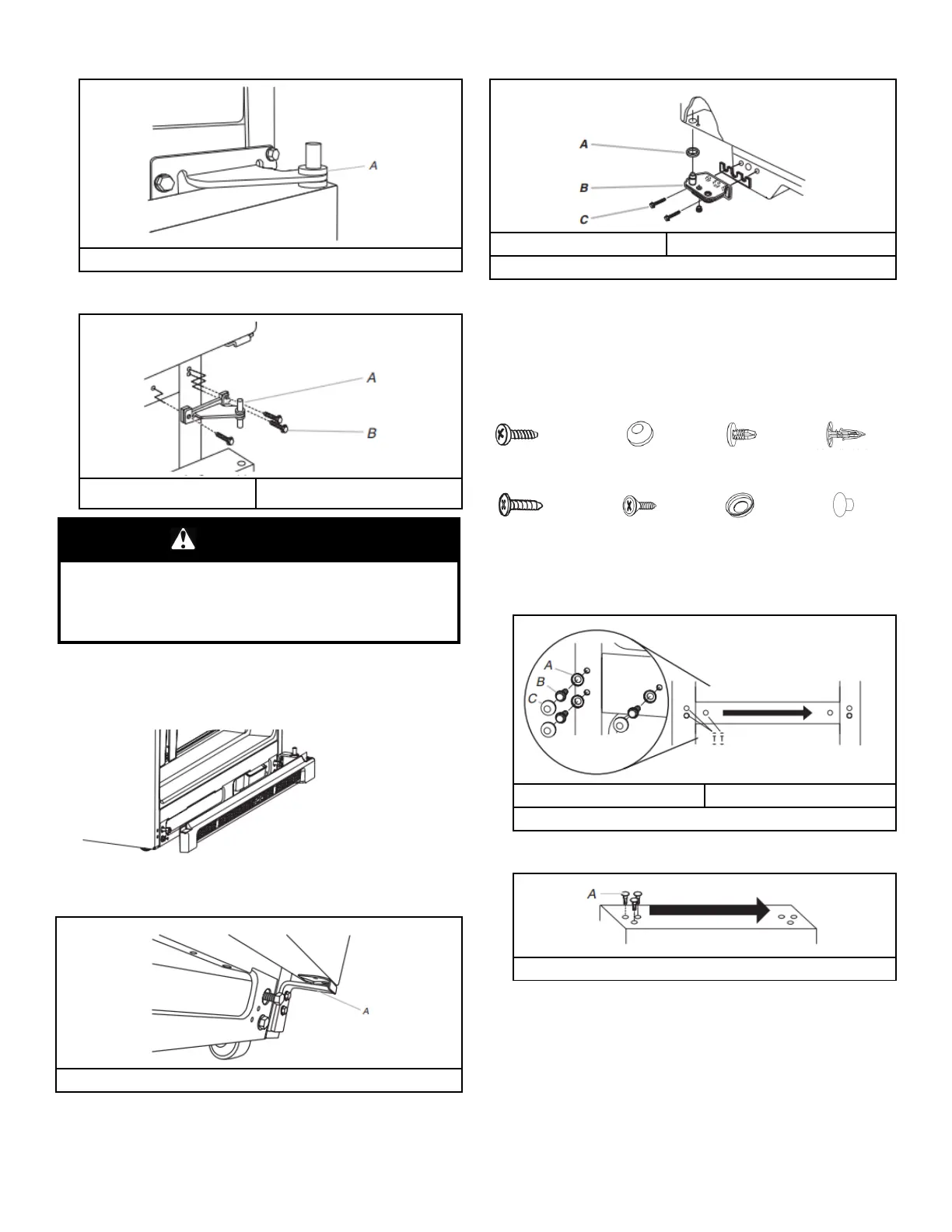

4. Remove the washer from the top of the Center Hinge pin.
A. Washer
5. Using a hex-head socket wrench, remove the three screws
from the center hinge and remove the hinge. Set aside.
A. Center hinge B. 5/16" hex-head hinge
screws
WARNING
Excessive Weight Hazard
Use two or more people to lift the appliance door.
Failure to do so can result in back or other injury.
6. Lift the refrigerator door off of the bottom hinge and set it
aside.
7. Remove the base grille from the bottom front of the
refrigerator.
8. Remove the parts for the bottom hinge as shown in the
Bottom Hinge graphics.
Bottom Hinge Style 1
A. Bottom hinge
Bottom Hinge Style 2
A. Spacer C. 5/16" hex-head hinge screws
B. Bottom Hinge
Reverse Doors and Hinges (optional)
IMPORTANT: If you want to reverse your doors so that they open
in the opposite direction, follow these steps. If you are not
reversing the doors, see “Replace Doors and Hinges.”
Style 1 - Standard Door Models
Graphics follow these instructions.
Door Stop
Screw
Dome Cap Cabinet Hinge
Hole Plug
Door Handle
Hole Plug
Door Handle
Sealing Screw
Flat-Head
Handle Screw
Dome Cap
Washer
Door Hinge
Hole Plug
Cabinet
1. Remove the three dome caps and the screws from handle
side and move them to opposite side.
A. Dome cap washers C. Dome Caps
B. Hex-head hinge screws
2. Remove cabinet hinge hole plugs from cabinet top and move
them to opposite side hinge holes as shown below.
A. Cabinet Hinge Hole Plugs
