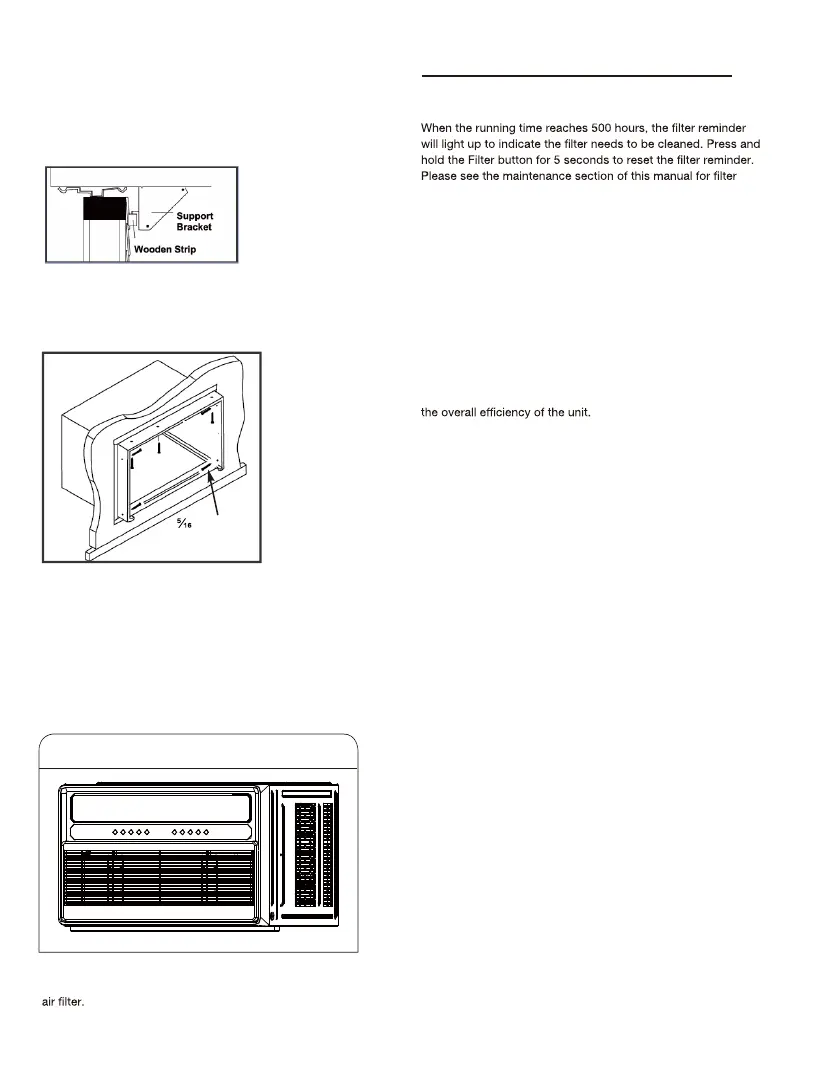

Other Features
Refer to the SUPPORT BRACKET
ASSEMBLY in the WINDOW MOUNTING
Section to assemble the support brackets.
A wooden strip nailed to the outside wall should be used in
conjunction with the angled sill support brackets.
Filter Reminder
cleaning instructions.
Display Auto Off
Display will dim after 30 seconds (or after 15 seconds in sleep mode)
Wake up the display by pressing any button.
Memory
if the air conditioner is turned off but stays connected to the power,
it will resume the previous settings (except the timer setting) when
it is turned on again.
Drain Water
This unit was designed to collect moisture from condensation in a
collection pan in the base of the unit. The collected water is
distributed by the rear fan on to the condenser coil. This aids in
It is normal to hear the water sloshing around when the fan is spinning.
5. Screw the cabinet to the wooden frame using shims as
below with 7 long Hex-head screws, remember to maintain
proper slope for water elirnination.
6. Install the chassis into the cabinet by following the steps
described in the WINDOW MOUNTING section.
Push the chassis into the cabinet. Reinstall the screws of
cabinet, and reattach the front facelate, front panel, and
OPTIONAL: Caulking and installation of the trim on the interior
wall may be done if desired.
Caulk the openings around the top and sides of the cabinet and
all sides of the wood sleeve to the opening.
NOTE: See the WINDOW MOUNTING instructions for the bottom
rail seal location.
ASSEMBLY & INSTALLATION-THRU-THE-WALL (CONT.)
" Long
Hex-head Screw
Installing the Chassis into the Cabinet
13
