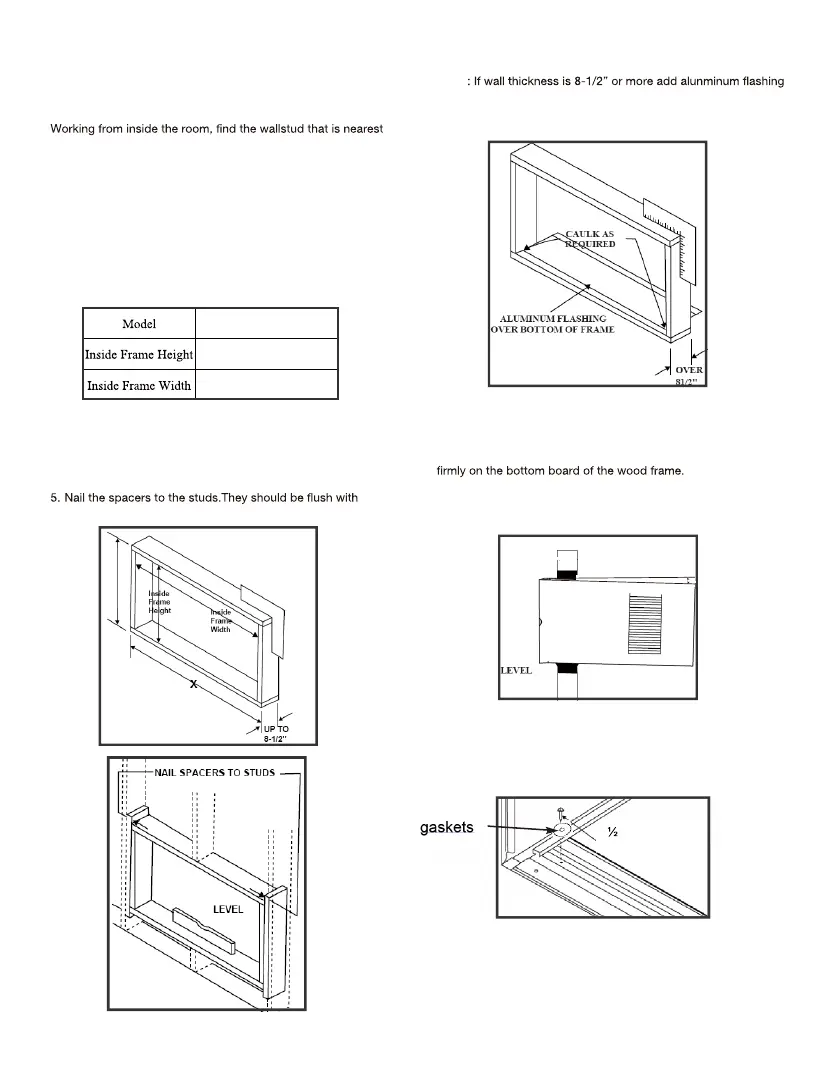

Prepare the Wall
1. Prepare the wall in frame construction (including brick and
stucco veneer).
the center of the installation area.
2. Cut a hole on each side of the center stud.
3. Measure between the inside edges of every other stud as shown
below.
Measure and cut an opening with the following dimensions
depending on your model.
WIDTH"X"= inside model plus twice the thickness of the framing
material used.
HEIGHT "Y"= inside model eight plus twice the thickness of framing
material used.
4. Build a wooden frame with the inside dimensions of
your model isted above (Measure twice).
The frame depth should be the same as the wall thickness.
Fill in extra space from the opening to the studs with wood
spacers as shown below.
the dry wall.
over the bottom of the frame opening to assure water is unable
to enter the area between the inner and outer wall.
Prepare and Install the Cabinet
1. Slide the chassis from the cabinet. Refer back to the REMOVE
CHASSIS instructions in the WINDOW MOUNTING section..
2. Place the cabinet into the opening with the bottom rail resting
3. Position the cabinet so it is tilted properly for water removal as
seen below.
4. Secure the bottom rail to the wood frame with two 1/2
"
Long Hex-head Screws and gaskets as shown below.
ASSEMBLY & INSTALLATION-THRU-THE-WALL (CONT.)
15K/18K/22K/24K
17.13 inch (435mm)
25.59 inch (650mm)
Y
About 3°
" Long
Hex-head Screw
NOTE
12
