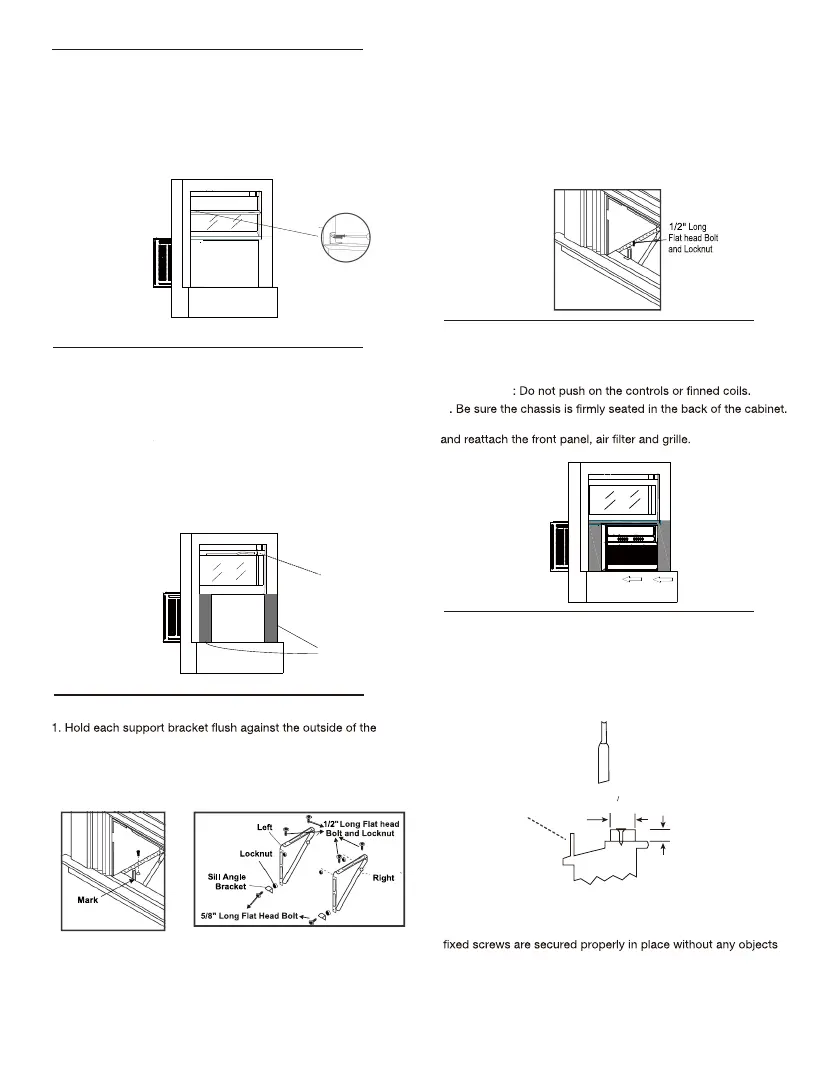

Step 10: Installing the Security Bracket
(Recommended)
Step 11: Filling the Gap Between Sashes
Applying the Panel Seals
Step 12: Install Support Brackets
Step 13: Installing the Chassis into the Cabinet
If AC is Blocked by Storm Window Frame
For security purposes, it is recommended to attach the security
bracket to the top of the window using two 1/2" screws to
prevent opening the window from outside. However, the security
bracket can be removed to allow you to open the window when
desired.
Trim the non-adhesive foam seal to the appropriate length and
insert between the window sashes.
fastened tightly from the AC unit curtain to the window frame.
Measure the length extended by the side panels, trim the panel
seals to the appropriate length, peel off the backings and apply
on the panels on both sides.
window sill. Tighten each bracket to the bottom of the cabinet
as shown below. Mark the brackets at top level of the window
sill and then remove.
2. Assemble the sill angle brackets to the support brackets at the
marked position as shown above. Hand tighten, but not all the
way for any changes that may need to be made later during
installation.
3. Install the support brackets (with sill angle brackets attached)
to the bottom of the cabinet as shown below.
4.Tighten all 6 bolts securely.
1. Using two or more people, lift the air conditioner and gently
side it into the cabinet.
IMPORTANT
3. Insert all screws removed during window installation (Step 3, 3C)
Add wood as shown. Remove the storm window frame/obstruction
before installing the window air conditioner. if the Storm Window
Frame must remain, be sure the drain holes or slots are not caulked
or painted shut. Accumulated rainwater or condensation must be
allowed to drain out.
Non-Adhesive
Foam Seal
Panel Seals *2
SASH
INSIDE
1-1
2" min
(38mm)
Storm window
frame or other
obstruction
Board thickness as
required, for proper
pitch to rear, along
entire sill.
Fasten with nails or
screws.
OUTSIDE
10
IMPORTANT: When opening the window, be sure that the
affecting their attachment to the side brackets and associated
window frame to prevent the unit from becoming unstable and
falling.
When open the window, be sure that all the screws are
2
