20
8. Replace the “49” spud with a “57” spud. Install the Propane
gas bake burner orifice spud, turning it clockwise until snug.
IMPORTANT: Do not overtighten.
A. Orifice spud
9. Position the back of the bake burner over the oven orifice, and
slide the tab on front of the bake burner into the front of the
oven.
10. Reattach the bake burner with 2 screws.
11. Insert the tabs on the rear of the flame spreader into the rear
of the oven.
12. Reattach the front tabs of the flame spreader to the oven with
2 screws.
13. Position the front of the oven bottom panel toward the front
frame and lower the rear of the oven bottom panel into the
oven.
14. Reattach the oven bottom panel with 2 screws.
Complete Installation (Natural Gas to Propane
Gas)
1. Refer to the “Make Gas Connection” section for properly
connecting the range to the gas supply.
2. Refer to the “Electronic Ignition System” section for proper
burner ignition, operation and burner flame adjustment.
IMPORTANT: You may have to adjust the “LO” setting for
each cooktop burner.
Checking for proper cooktop bake burner flame is very
important. The small inner cone should have a very distinct
blue flame 1/4" (0.64 cm) to 1/2" (1.3 cm) long. The outer cone
is not as distinct as the inner cone. Propane gas flames have a
slightly yellow tip.
3. Refer to “Complete Installation” in the “Installation Instructions”
section of this manual to complete this procedure.
NOTE: Make sure to save the orifices that have just been
replaced in the conversion.
Natural Gas Conversion
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Install anti-tip bracket to floor or wall per installation
instructions.
Slide range back so rear range foot is engaged in the
slot of the anti-tip bracket.
Re-engage anti-tip bracket if range is moved.
Do not operate range without anti-tip bracket installed
and engaged.
Failure to follow these instructions can result in death or
serious burns to children and adults.

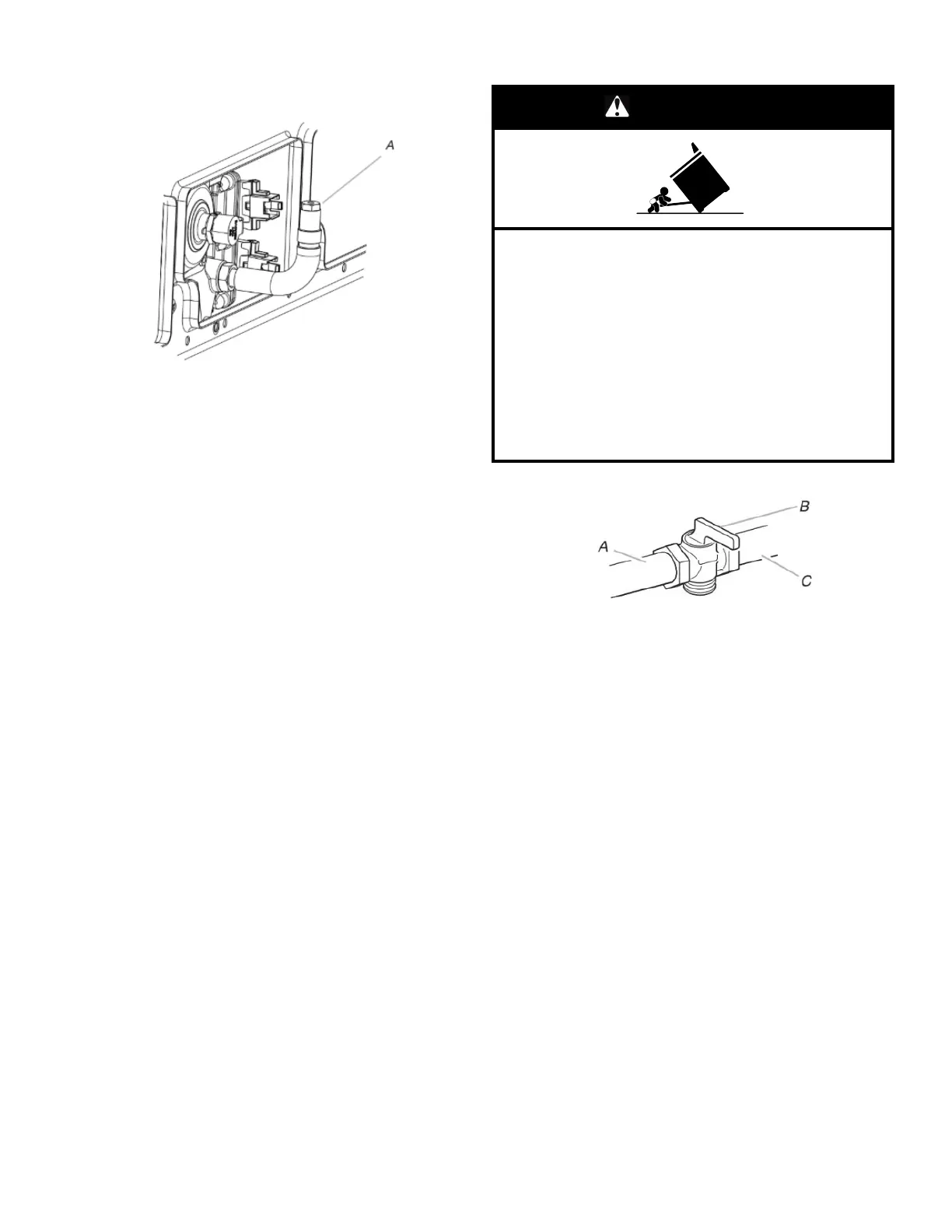

1. Turn manual shut-off valve to the closed position.
A. To range
B. Manual shut-off valve closed position
C. Gas supply line
2. Unplug range or disconnect power.
To Convert Gas Pressure Regulator (Propane Gas
to Natural Gas)
1. Remove the storage drawer. See the Storage Drawer section.
2. Locate gas pressure regulator at rear of the drawer
compartment.
IMPORTANT: Do not remove the gas pressure regulator.
3. Remove plastic cover from gas pressure regulator cap.
