19
3. Apply masking tape to the end of a 9/32" (7 mm) nut driver to
help hold the gas orifice spud in the nut driver while changing
it. Press nut driver down onto the gas orifice spud and remove
by turning it counterclockwise and lifting out. Set gas orifice
spud aside.

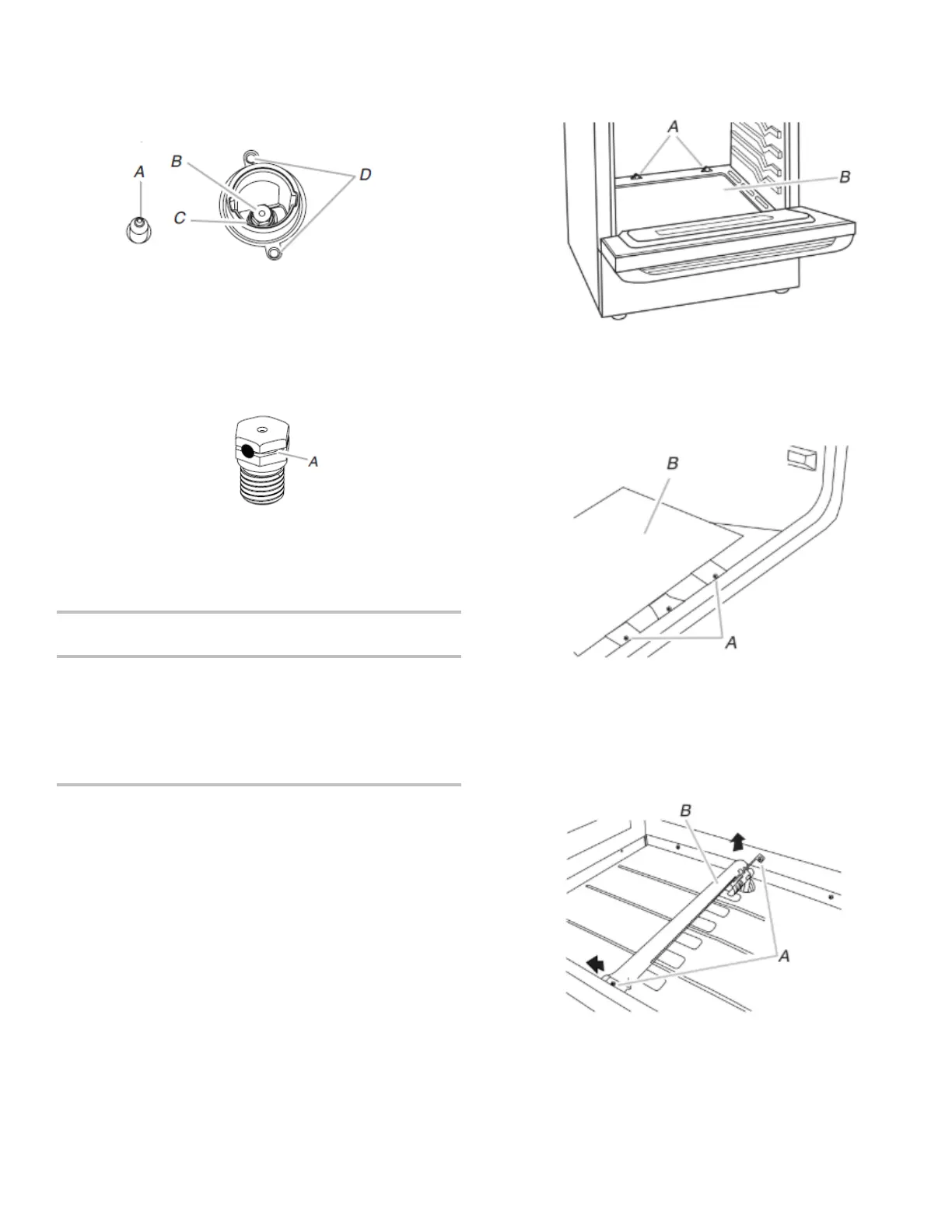

A. Igniter electrode
B. Orifice spud
C. Orifice spud holder
D. Screws
4. Remove the orifice spuds shipped in the literature package in
the oven. Gas orifice spuds are stamped with a number and
have a groove in the hex area. Replace the Natural gas orifice
spud with the correct propane gas orifice spud.
A.
Propane
groove
Refer to the following chart for correct Propane gas orifice
spud placement.
Propane Gas Orifice Spud Chart for Surface Burner
For WFGS4530S*
Placement Burner
Rating
Size (mm) ID Number
LF 14200 1.08 108AM
LR 8000 0.84 084AM
RF 14200 1.08 108AM
RR 5000 0.64 064AM
CTR 8000 0.84 084AM
NOTE: Refer to the Tech Sheet located on the rear cover for the
applicable individual burner BTU rating per fuel type.
5. Place Natural gas orifice spuds in the orifice spud bag.
IMPORTANT: Keep the Natural gas orifice spuds in case of
reinstallation with Natural gas.
6. Replace the burner base.
7. Replace burner cap.
8. Repeat steps 1-7 for the remaining burners.
To Convert Oven Bake Burner (Natural Gas to
Propane Gas)
1. Remove the oven racks.
2. Remove 2 screws at the rear of the oven bottom.
3. Lift the rear of the oven bottom up and back until the front of
the panel is away from the front frame. Remove from oven
and set it aside on a covered surface.
A. Screws
B. Oven bottom
4. Remove 2 screws from the front tabs of the flame spreader.
Lift the front of the flame spreader and pull forward to remove
tabs from rear of oven and set it aside on a covered surface.
A. Screws
B. Flame spreader
5. Remove 2 screws from the bake burner.
6. Slide the front of the bake burner to the side to remove tab
from front of oven. Lift the back of the bake burner off the oven
orifice, and set the bake burner aside.
A. Screws
B. Bake burner
7. Use a 3/8" (1 cm) nut driver or combination wrench and turn
the Natural gas bake burner orifice spud counterclockwise to
remove. The spud will be stamped with a “49.”
