16
3. You can check the burner flame by removing the flame
spreader or by using a mirror.
Remove flame spreader:
Remove 2 screws from the front tabs of the flame spreader.
Lift front of the flame spreader and pull forward to remove tabs
from rear of oven.

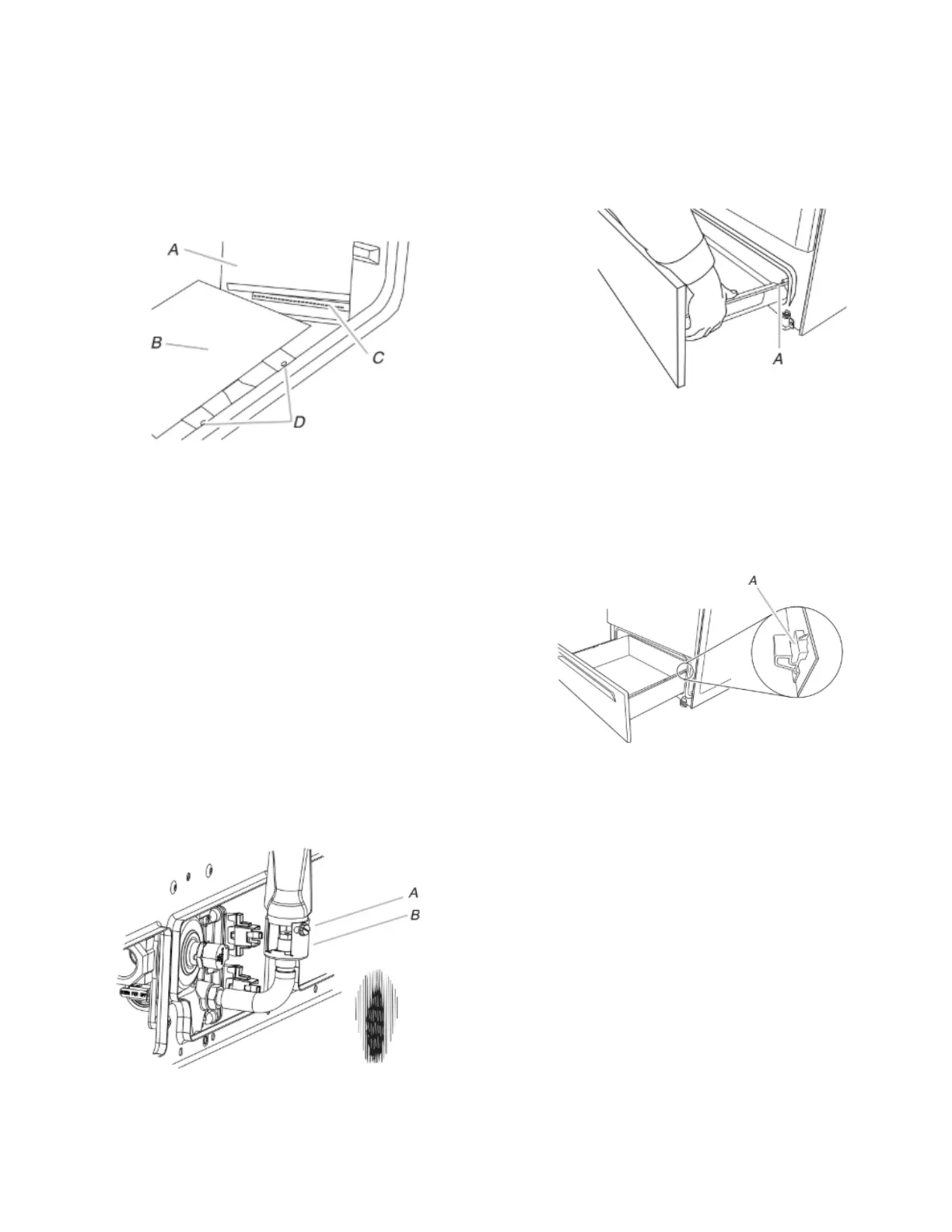

Using a mirror:
Insert a mirror to one side of the burner. Look into the mirror to
check flame.
A. Mirror
B. Flame spreader
C. Flame reflection
D. 2 screws
4. Push the BAKE pad.
5. Press the START pad.
The oven bake burner should light within 8 seconds. Under certain
conditions, it may take the burner up to 50 to 60 seconds to light.
Electronic igniters are used to light the bake burners.
Refer to the Quick Start Guide and online Control Guide for proper
operation of the oven controls.
Adjust Oven Bake Burner Flame (if needed)
1. Check the oven bake burner for proper flame.
This flame should have a 1/2" (1.3 cm) long inner cone of
bluish-green, with an outer mantle of dark blue, and should be
clean and soft in character. No yellow tips, blowing or lifting of
flame should occur.
2. If the oven bake flame needs to be adjusted, locate the air
shutter near the center rear of the range. Loosen the locking
screw and rotate the air shutter until the proper flame appears.
Tighten locking screw.
A. Locking screw
B. Air shutter
3. Push CANCEL/OFF when finished.
4. Reinstall flame spreader and oven bake burner cover.
Storage Drawer
The storage drawer can be removed. Before removing, make sure
drawer is cool and empty.
To Remove:
1. Pull the storage drawer straight back to the drawer stop.
A. Drawer stop notch
2. Lift up the front of the drawer and pull the drawer out.
To Replace:
1. Lift up the front of the drawer and place the rear of the drawer
inside the range so that the drawer stop notch is behind the
drawer glide.
2. Lower the drawer so that the edge of the slide rail drops into
the slot in the drawer glide.
3. Slowly push the drawer into the range.
A. Engage drawer glide.
NOTE: When properly installed, the rear slides on the bottom
of the drawer will engage the base rails and the drawer will not
tip when items are placed in the drawer.
