13
5. Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)

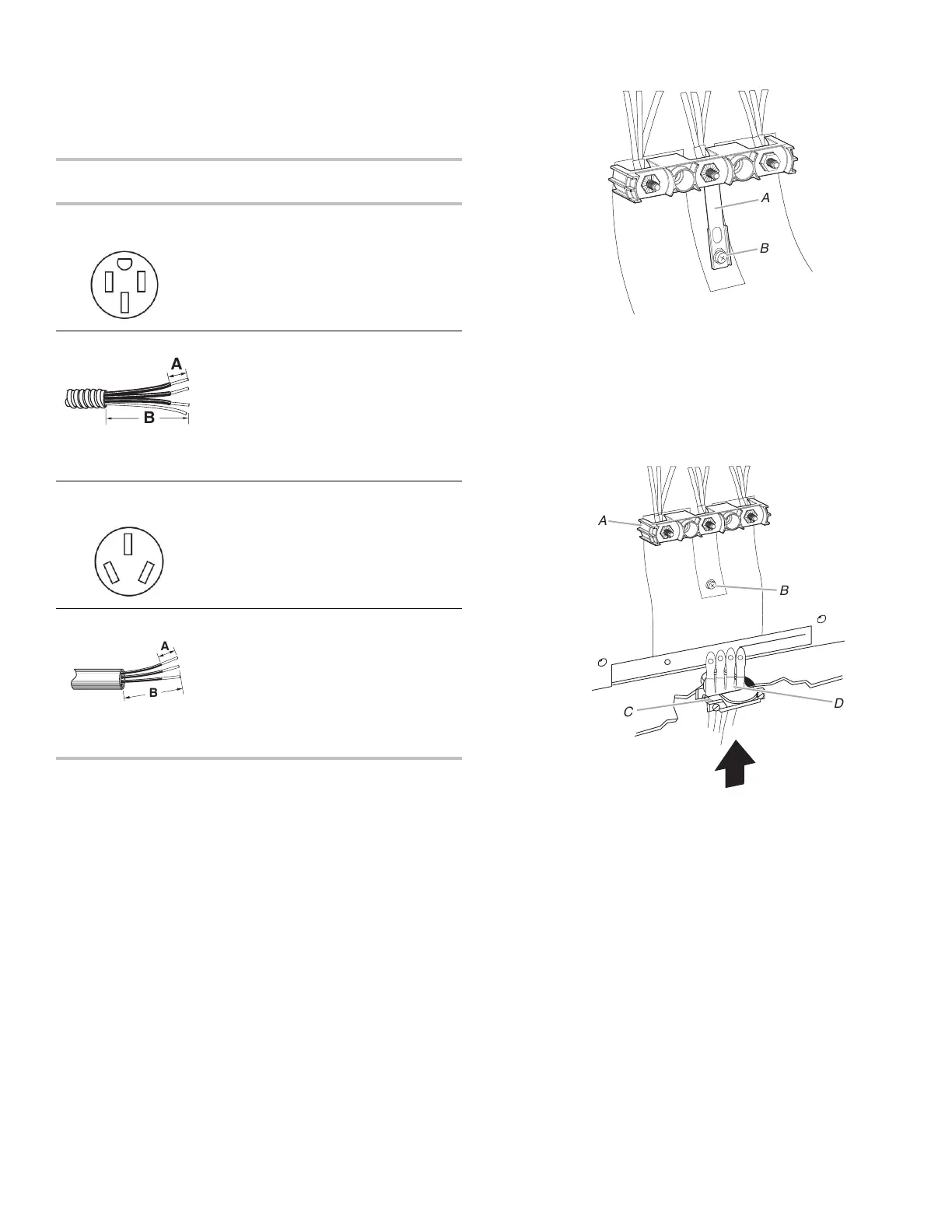

Electrical Connection Options
If your home has:
And you will be
connecting to:
Go to Section:
4-wire receptacle
(NEMA type 14-50R)
A UL Listed, 250 V
minimum, 40 A,
range power
supply cord
4-wire connection:
Power supply cord
4-wire direct
B
A
A. 3/8" (1 cm)
B. 5" (12 cm)
A circuit breaker
box or fused
disconnect
4-wire connection:
Direct wire
3-wire receptacle
(NEMA type 10-50R)
A UL Listed, 250 V
minimum, 40 A,
range power
supply cord
3-wire connection:
Power supply cord
3-wire direct
B
A
A. 3/8" (1 cm)
B. 3" (7.6 cm)
A circuit breaker
box or fused
disconnect
3-wire connection:
Direct wire
4-Wire Connection: Power Supply Cord
Use this method for:
� New branch-circuit installations (1996 NEC)
� Mobile homes
� Recreational vehicles
� In an area where local codes prohibit grounding through the
neutral
1. Part of metal ground strap must be cut out and removed.
A
B
A. Metal ground strap
B. Ground-link screw
2. Use a Phillips screwdriver to remove the ground-link screw
from the back of the range. Save the ground-link screw and
the end of the ground link under the screw.
3. Feed the power supply cord through the strain relief on the
cord/conduit plate on bottom of range. Allow enough slack to
easily attach the wiring to the terminal block.
A
B
D
C
A. Terminal block
B. Ground-link
screw
C. UL listed strain relief
D. Power supply cord wires
4. Use Phillips screwdriver to connect the green ground wire
from the power supply cord to the range with the ground-link
screw. The ground wire must be attached first.
