12

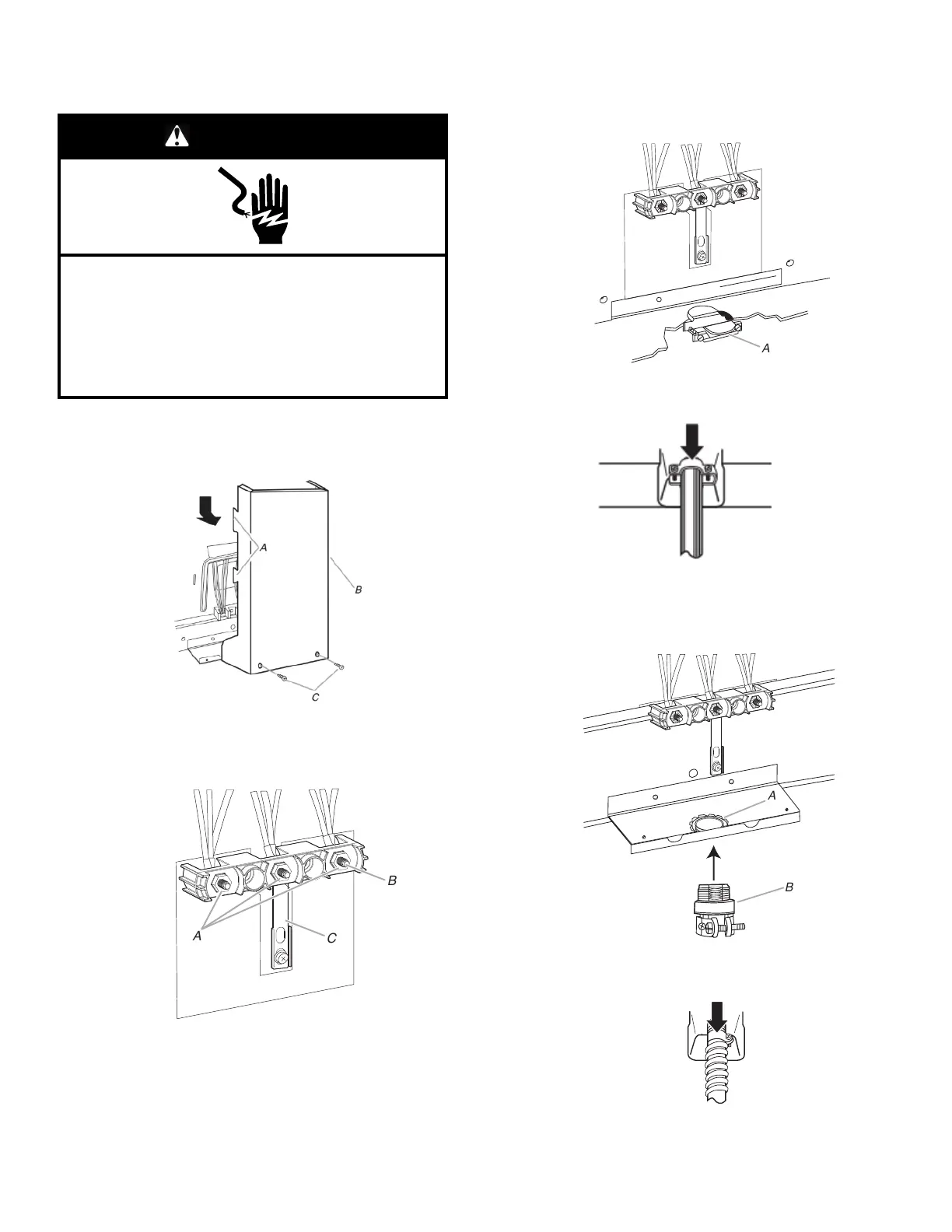

Electrical Connection - U.S.A. Only
Power Supply Cord
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 A power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Disconnect power.
2. Remove the terminal block cover screws located on the back
of the range. Pull cover down and toward you to remove cover
from range.
A. Two mounting tabs each side
B. Terminal block cover
C. Hex-head screws
3. Remove the three 10-32 hex nuts from the terminal posts.
A
C
B
A. 10–32 hex nuts
B. Terminal Posts
C. Ground Strap
4. Add strain relief.
Style 1: Power supply cord strain relief
� Remove the knockout for the power supply cord.
� Assemble a UL listed strain relief in the opening.
A
A. UL listed strain relief
� Tighten strain relief screw against the power supply cord.
Style 2: Direct wire strain relief
� Remove the knockout as needed for the flexible conduit
connection.
� Assemble a UL listed conduit connector in the opening.
A
B
A. Removable retaining nut
B. Conduit
� Tighten strain relief screw against the flexible conduit.
