10
Optional Accessory Parts Available:
Call us at our toll-free number or visit our website listed on the
Quick Start Guide for optional accessory part information.
First-Time Installations
Check local codes. Check existing electrical supply. See the
“Electrical Requirements” section. It is recommended that
electrical connections be made by a licensed electrical installer.

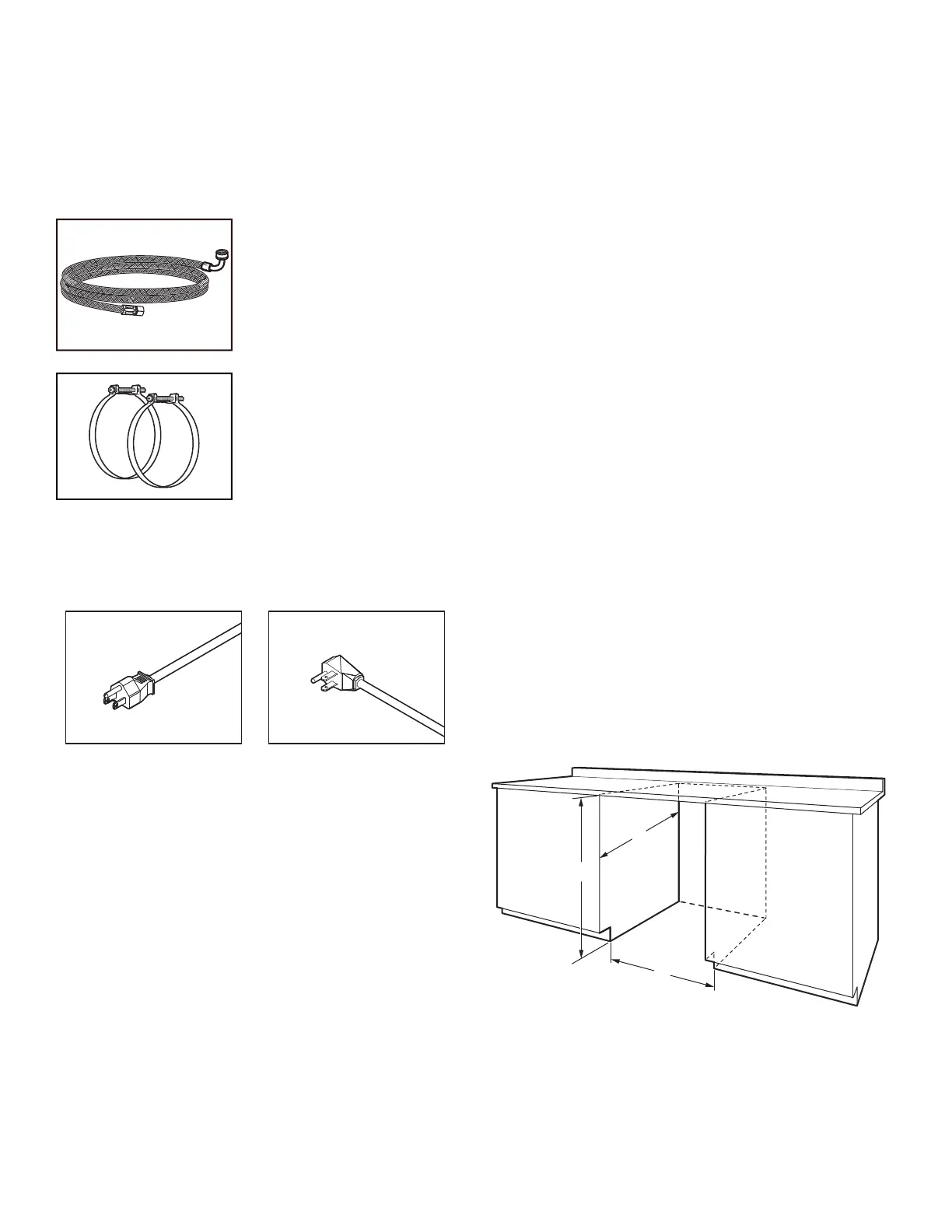

Additional Parts Needed (not provided):
3/8" (9.5 mm) to 3/4" (19 mm)
elbow fitting adapter with inlet
hose
Whirlpool Part Number,
W10278635RP, 6 ft (1.8 m)
inlet hose
Whirlpool Part Number,
8212486, 12ft (3.6 m) inlet hose
Screw-Type Clamps
1
1
/
2
"-2" (38 mm-50 mm)
(3 maximum)
NOTE: Be sure to purchase only Whirlpool factory-certified parts
and accessories for your appliance. Your installation may require
additional parts. To order, refer to the contact information
referenced in your Quick Start Guide.
For Power Cord
Power Cord Kit
Kit typically includes power cord (Cord Kit - Straight: Whirlpool
Part Number W11670634, Right Angle: Whirlpool Part Number
W11546624), Cable fitting.
NOTE: The Cord Kit - Straight: Whirlpool Part Number
W11670634 is recommended for most installations.
For proper installation, refer to the installation instructions
provided with the kit.
NOTE: Be sure to purchase only Whirlpool factory-certified parts
and accessories for your appliance. Your installation may require
additional parts. To order, refer to the contact information
referenced in your Quick Start Guide.
Location Requirements
Dishwasher must be fully enclosed (top, sides, back, and floor)
upon installation.
An optional moisture barrier accessory is also available for
installing underneath a wooden countertop.
Check location where dishwasher will be installed. The location
must provide:
� Convenient access for loading and unloading dishes. Corner
locations require a 2" (51 mm) minimum clearance between
the side of the dishwasher door and the wall or cabinet.
� Easy access to water, electricity, and drain:
• Grounded electrical supply is required.
• This dishwasher has a water-heating feature and also
requires a connection to a hot water supply line.
• Make sure pipes, wires, and drain hose are within the
shaded area shown in the “Cabinet Opening Dimensions”
section.
• Do not run drain lines, water lines, or electrical wiring where
they can interfere with or contact dishwasher legs.
• Shelter dishwasher and water lines leading to dishwasher
against freezing. Damage from freezing is not covered by
the warranty.
NOTE: If dishwasher will be left unused for a period of time
or in a location where it may be subject to freezing, have it
winterized by authorized service personnel.
� A square opening for proper operation and appearance.
� The cabinet front to be perpendicular to floor.
� A level floor.
Helpful Hint: If floor at front of opening is not level with floor at
rear of opening, shims may be used to level dishwasher. Optional
alignment method using a laser square; review the product help
videos.
NOTE: To avoid shifting during dishwasher operation, shims must
be securely attached to the floor.
� Do not install dishwasher over carpeted flooring.
Cabinet Opening Dimensions
Clearances
Check that all surfaces have no protrusions that would prohibit
dishwasher installation.
C
A
B
A. 32
5
/
16
"-35
5
/
16
" (820-900 mm) measured from the lowest point on the
underside of the countertop.
B. 22
1
/
16
" (560 mm) Minimum
C. 23
5
/
8
" (600 mm) Minimum, measured from narrowest point of opening.
