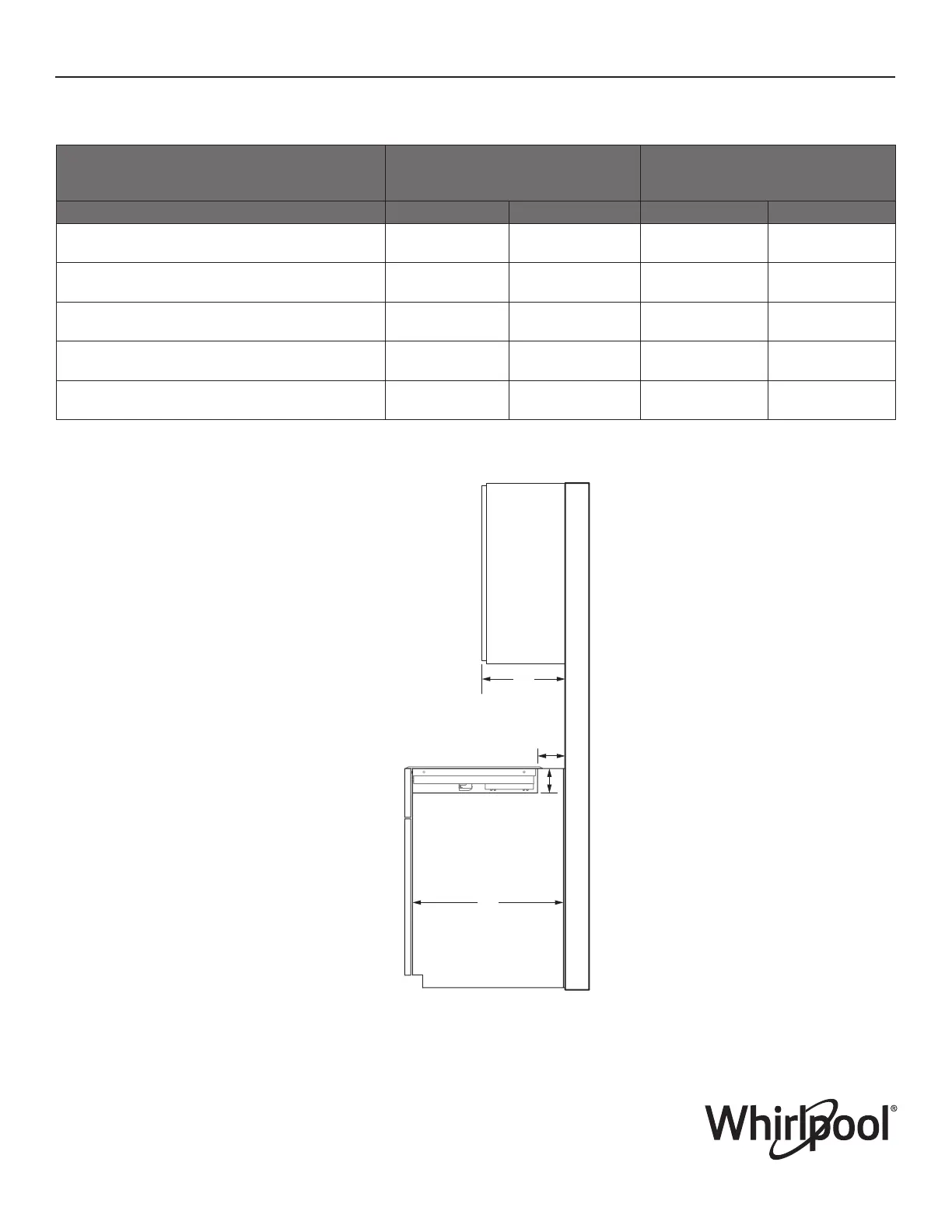

DIMENSION GUIDE
INDUCTION COOKTOP
IMPORTANT: Dimensional specications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All Whirlpool
®
appliances are appropriately UL, CUL or CSA approved.
5 of 21
OPENING/CLEARANCE DIMENSIONS
MODEL #
30" (78.2 cm) Cooktop
WCIT7530SB/WCIT7530SS/
WCIT7030SB/WCIT7030SS
36" (91.4 cm) Cooktop
WCIT7536SB/WCIT7536SS
Unit of Measurement in cm in cm
Recommended Upper Cabinet Depth (E) 13 33 13 33
Cutout to Wall Depth (if backwall is constructed of
non-combustible material) (F)*
1 2.5 1 2.5
Cutout to Wall Depth (if backwall is constructed of
combustible material) (F)*
1 2.5 1 2.5
Cabinet to Countertop Height (G) 3
15
/
16
10 3
15
/
16
10
Cabinet Depth (H) 23
1
/
4
59.1 23
1
/
4
59.1
*If the back wall is constructed of a combustible material and a backsplash is not installed, a 7
3
⁄
4
" (19.7 cm) minimum clearance is
required from the cutout or 6" (15.2 cm) minimum clearance from the back edge of the rangetop.
SIDE VIEW
E
F
*
G
H
