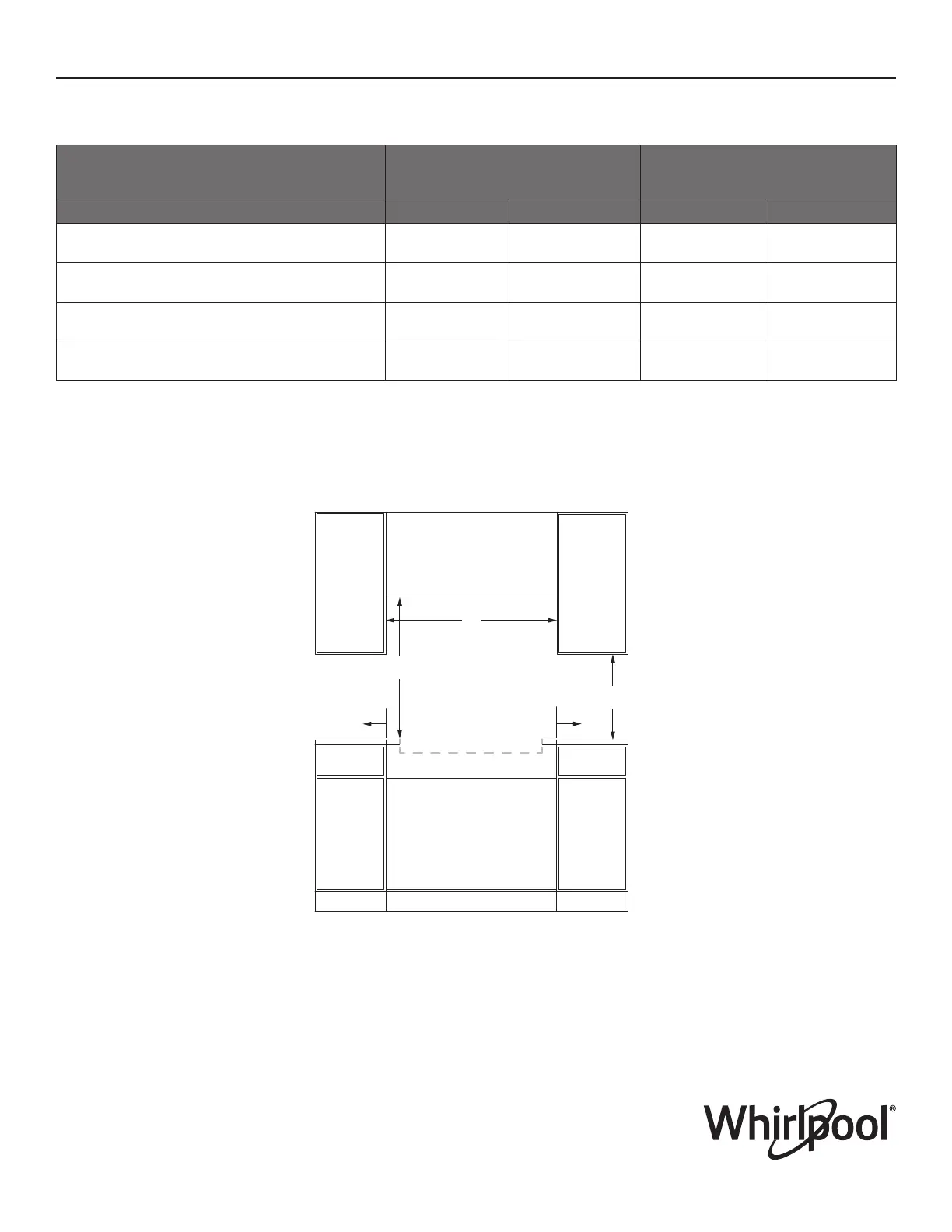

DIMENSION GUIDE
INDUCTION COOKTOP
IMPORTANT: Dimensional specications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All Whirlpool
®
appliances are appropriately UL, CUL or CSA approved.
4 of 21
OPENING/CLEARANCE DIMENSIONS
MODEL #
30" (78.2 cm) Cooktop
WCIT7530SB/WCIT7530SS/
WCIT7030SB/WCIT7030SS
36" (91.4 cm) Cooktop
WCIT7536SB/WCIT7536SS
Unit of Measurement in cm in cm
Combustible Area above Cooking
Surface Width (minimum) (A)
30 76.2 36 91.4
Bottom of Cabinet Height above Cooking Surface
(minimum) (B)*
30 76.2 30 76.2
Bottom of Cabinet Height above Countertop
(minimum) (C)
18 45.7 18 45.7
Distance to Fixed Wall or Combustible Material (D) 1 2.5 1 2.5
*If installing a hood above the cooktop, follow the hood instructions for dimensional clearances above the cooking surface.
FRONT VIEW
A
D
B*
C
D
