Je bekijkt pagina 7 van 15
Page7of15
©Copyright2018WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions

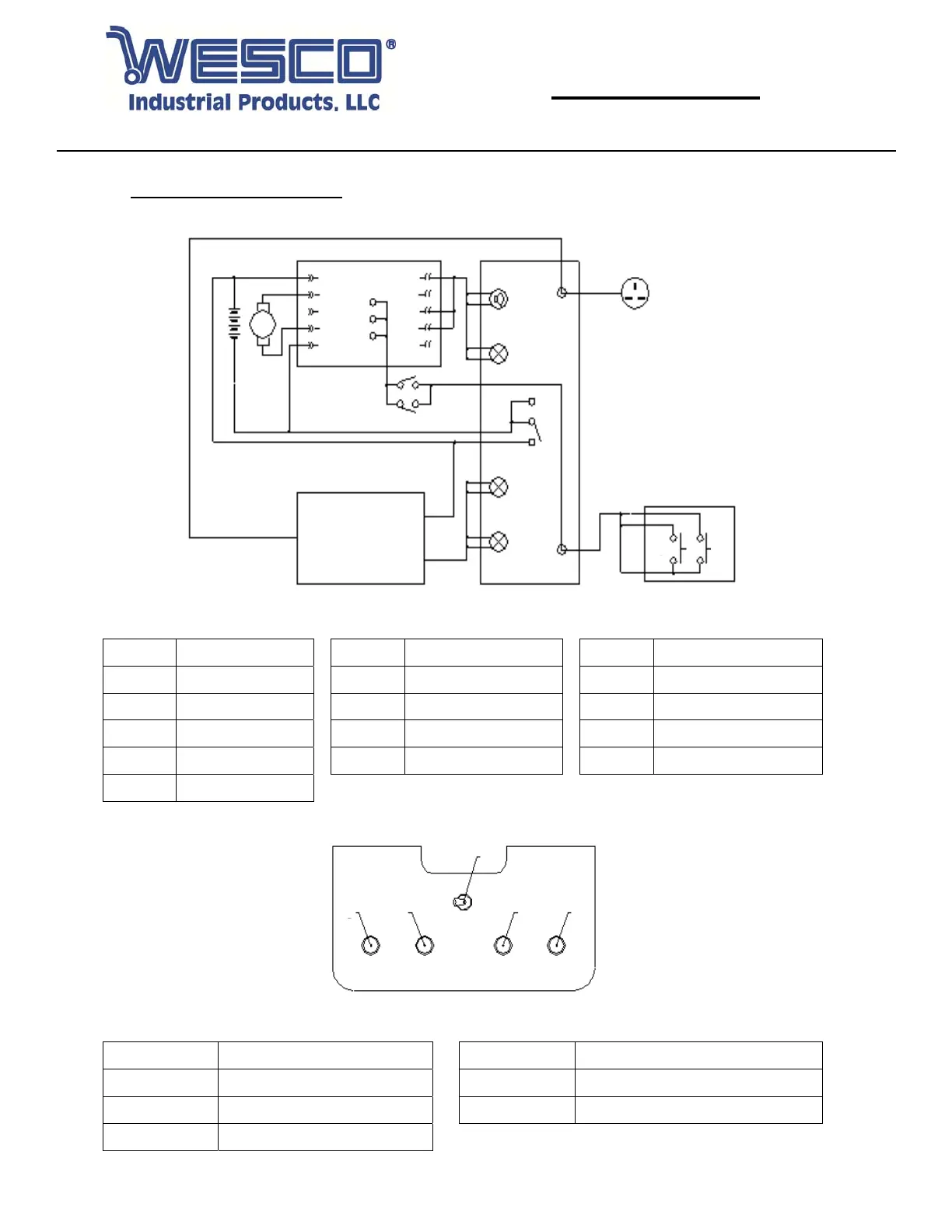

7. ELECTRICAL DIAGRAMS
7.3 Circuit Diagram
(Units Manufactured Before June 2014)
Figure 2
Item Description
Item Description
Item Description
E 24V DC Supply
K2 Up/Down Limit Switch
CD Charger Supply
CC Socket of Charger
CDQ Charger
SA Up Button
QZ Cut-Off Indicator
D DC Motor
K1 Power Supply Switch
CZ Charging Status
FM Buzzer
ZKB Main Control Circuit Board
XA Down Button
7.4 Electric Panel Diagram
(Units Manufactured Before June 2014)
Figure 3
Item Description
Item Description
1 Power Switch
4 Buzzer
2 Cut-Off Indicator
5 Charger Power Supply
3 Charging Status
Electric Office Lift
(Part # 272468)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFTER, READ
THESE INSTRUCTIONS ENTIRELY BEFORE USING.
SA
X
A
CC
FM
QZ
K1
CD
CZ
CDQ
K2
ZKB
D E
1
2
3
4
5
