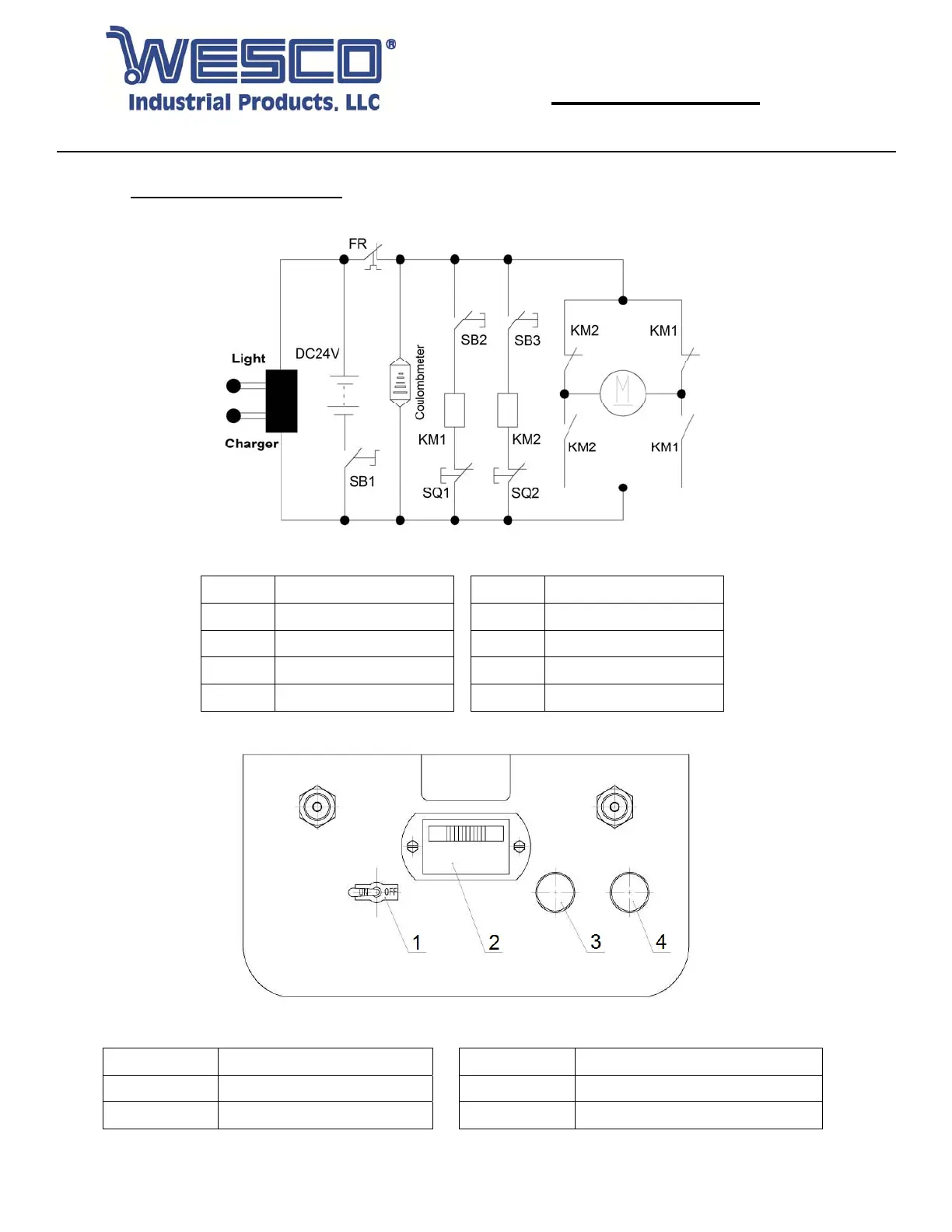

7. ELECTRICAL DIAGRAMS
7.1 Circuit Diagram
(Units Manufactured After June 2014)
Figure 2
Item Description
Item Description
FR Thermal Cutoff
KM1 Up Contactor
SB1 Power Supply Switch
KM2 Down Contactor
SB2 Up Limit Switch
SQ1 Up Limit Switch
SB3 Down Limit Switch
SQ2 Down Limit Switch
7.2 Electric Panel Diagram
(Units Manufactured After June 2014)
Figure 3
Item Description
Item Description
1 Power Supply Switch
4 Charging Status (Charged)
2 Power Indication
5 Charging Status (Charging)
Electric Office Lift
(Part # 272468)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFTER, READ
THESE INSTRUCTIONS ENTIRELY BEFORE USING.
