Electric Non-Telescoping High Lift Truck
(Part # 272460 & 272461)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR HIGH LIFT TRUCK,
READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
10. PART INFORMATION
(MODELS MANUFACTURED BEFORE 2010)

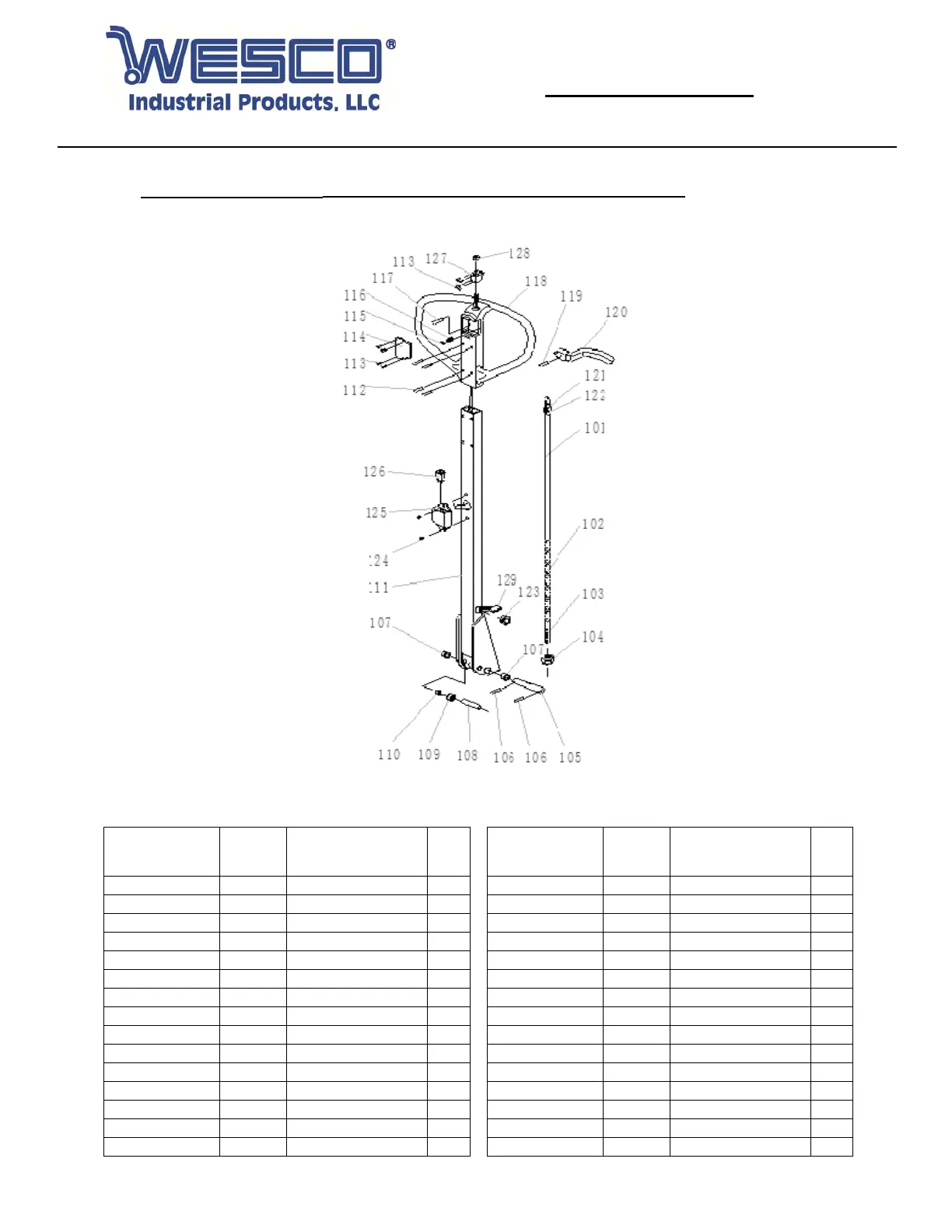

10.1 HANDLE PART DIAGRAM
10.2 HANDLE PART LIST
Wesco
Replacement
Part #
No. Description Qty
Wesco
Replacement
Part #
No. Description Qty
101 Release Rod 1 116 Spring 1
102 Chain 1 117 Pin 1
103 Adjusting Bolt 1 118 Handle 1
104 Adjusting Nut 1 119 Pin 1
105 Axle with Hole 1 120 Controlling Handle 1
106 Elastic Pin 2 121 Pull Board 1
107 Bushing 2 122 Pin 1
108 Roller Pin 1 123 Rubber Band 1
109 Pressure Roller 1 124 Screw 2
110 Bushing 1 125 Socket of Switch 1
111 Draw - bar 1 272474 126 Switch 1
112 Pin 4 127 Socket of Button 1
113 Screw 4 128 Button 1
114 Cover 1 129 Connector Plug 1
115 Ball 1 273057 101-129 Handle Assembly 1
