18
The supply wire will need to be the correct gauge as described by
the National Electrical Code and be rated to at least 167°F (75°C).
1 Wellslok adapter kit will use hex screws to tighten and allow
installation on countertops up to 1.5 inches (38 mm) thick.
The unit’s overall depth is 12.125 inches (308 mm) will sit
approximately 11.75 inches (298 mm) below the counter
surface depending on counter thickness.
When installing multiple units, each unit will need a space
of at least 2.125 inches (54 mm) between the cutouts on
the long dimension sides [A] and at least 3.625 inches
(92 mm) between cutouts on the short dimension side [B].
MDW100 Modular Dry Well
Installation Instructions
Printed in the U.S.A. • 2M-Z20755 •
Rev
B
•
05.2018
The owner is responsible for proper installation as
described above. Please refer to the owner’s manual
for information regarding installation or use.
Do not disconnect the control box from the modular unit.
i. Remove the knobs and faceplate from the control box. Pass the
control box through the countertop cutout, and then through
the apron cutout. This will require the box to be rotated so the
mounting tabs clear the hole. Next, lower and position the
modular section into countertop cutout.
ii. Before final seating of modular section to countertop, apply
a bead of silicone sealant to the underside of the grey gasket
material supplied on the mounting flange. From underneath,
insert screwdriver into the slots in the Wellslok frame and twist
clockwise to move the ears outward as required to secure the
flange tightly to countertop.1
iii. Mount the control box to apron cutout using #10 sheet metal [or
wood] screws to the facing side where the holes were drilled.
iv. Run wiring through the conduit knockout to the terminal block,
making connection as shown in the unit’s wiring diagram to the
correct power source.
v. Mount the front panel onto the control box using the provided
hardware and place the knob on. At this point, you should be
able to power on the unit and check for proper operation.
Do not install closer than 4.125 inches (105 mm) to front wall,
one [1] inch (25 mm) to back and side walls, and 6.75 inches
(171 mm) to a surface below the unit. If storage is to be used
underneath, it is recommended that a bae be placed 8.5
inches (216 mm) below the unit to avoid contact with elevated
temperatures. The unit will need to be accessible from the
bottom after installation is complete.
A proper electrical connection based on the units electrical
specifications will be necessary for installation. This must
be wired and connected by a licensed electrician. Electrical
installation will need to pass local electrical codes.

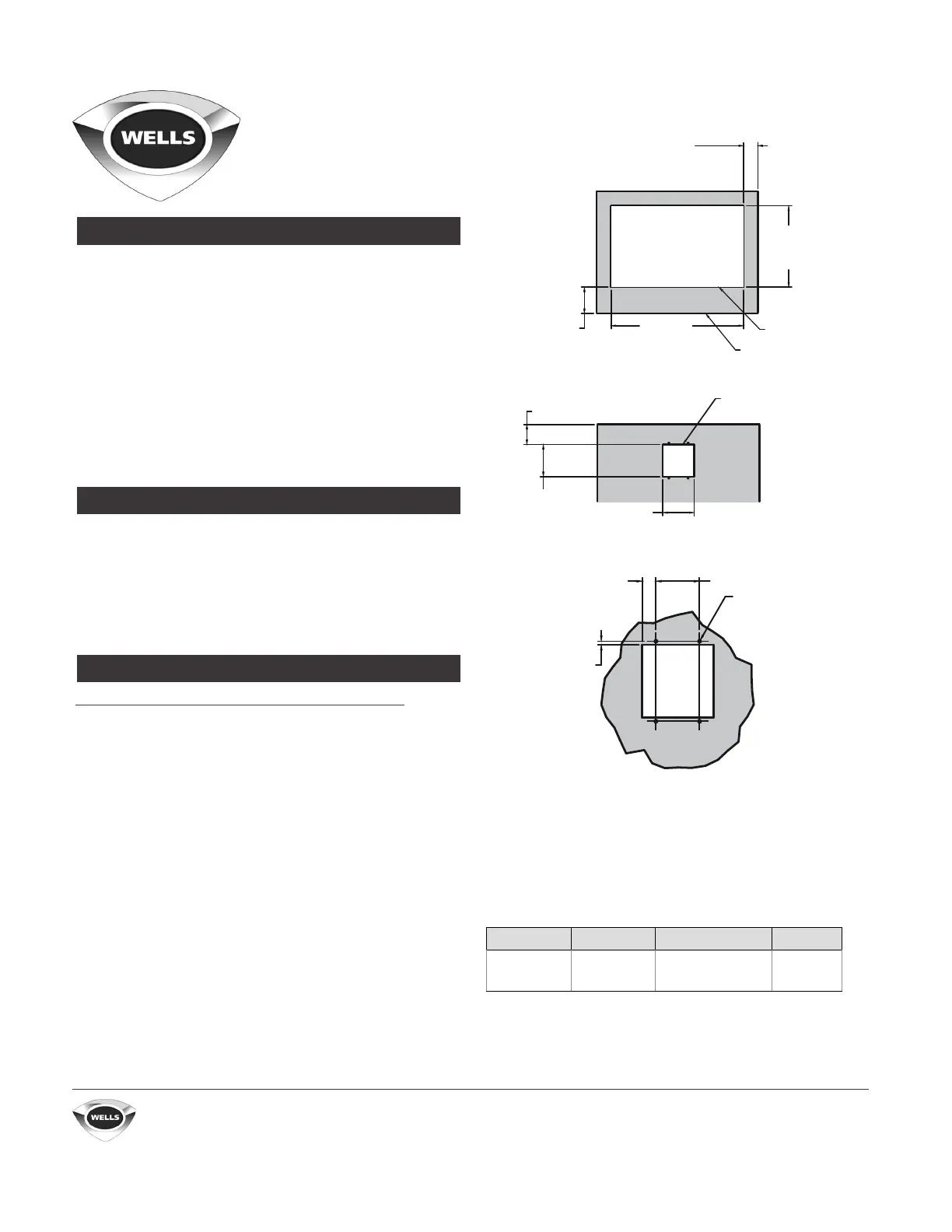

i. Lay out cutout dimensions on countertop and front apron.
ii. Lay out control panel mounting holes in counter apron using
the provided dimensions. The mounting holes should be
0.144 inch (3.7 mm) in diameter [drill size 27].
iii. Cut out the holes. On many countertops, reinforcement may
be needed to stiffen the countertop.
INSTALLATION INSTRUCTIONS
INSTALLATION REQUIREMENTS
FABRICATION
MODEL TOTAL kW VOLTS, PHASE AMPS
MDW100
0.61
0.8
208, 1Φ
240, 1Φ
2.9
3.3
3 in.
(76 mm)
7/8 in.
(22 mm)
1/4 in.
(6 mm)
0.144 inch ø
(3.7 mm ø)
[#27 drill]
4.125 in. (105 mm)
minimum clearance
on control side
2.25 in. (57 mm)
minimum clearance
on non-control side
dry well cutout
13.5 in.
(343 mm)
[B]
22.5 in.
(572 mm)
[A]
countertop
3.125 in.
(79 mm)
5 in.
(127 mm)
control cutout
see detail A
4.875 in.
(124 mm)
WELLS BLOOMFIELD, LLC
•
www.wellsbloomf ield.com
265 Hobson Street • Smithville, Tennessee 37166
Telephone 888 356 5362 • Fax 314 781 5445
