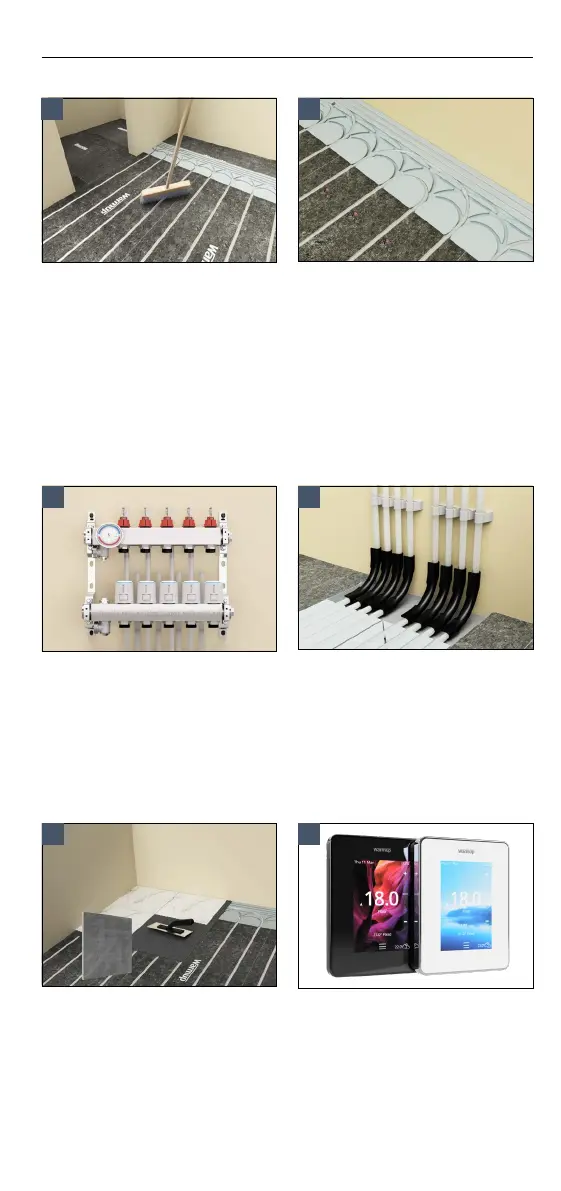

• Before installing the pipework in
the panels it is advised to sweep
orvacuumtheoorareatoclear
any debris.
• Use Warmup pipe bend supports
toholdtheowandreturnpipe
ata90°angleasitexitstheoor
towards the manifold.
Installation summary
• Install the pipe in line with the
projects working drawings,
pressing it into the grooves of the
Ultra-12 panels. Ensure the pipe is
securelyxedintothegrooves.
• Route a 6 mm channel into the
Ultra-12panelfortheoorsensor
to be recessed into and install
at least 300 mm into the heated
area it will be controlling.
•Layyourchosenoorcovering
inaccordancewithoor
manufacturers instructions.
6
9
7
10
• Measure and cut the pipe so
thatitreachesboththeowand
return ports on the manifold.
• Refer to the manifold manual
for detailed information on
mounting, pressure testing and
commissioning.
• Install your Warmup
thermostat referring to their
installation instructions. The
system must be connected to and
controlled with a thermostat and
sensor.
8
11
