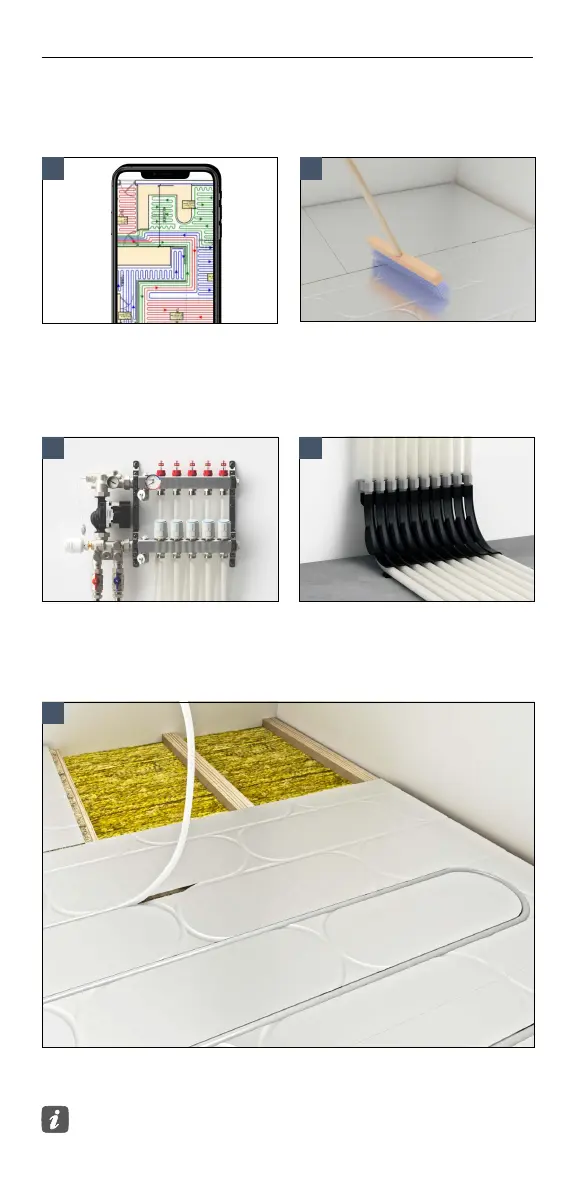

Step 3 - Lay the pipe
• Ensure there is excess ow and
return pipe at the manifold
location which can be cut later
after the pipe has been laid.
• Plan the circuit layout ensuring
that the ow and return pipes
can connect from the manifold
to their respective heated area
without crossing each other.
1
3
If the project has been supplied with a set of working drawings, follow
the provided pipe layout. Ensure each circuits details are recorded in the
commissioning log provided in the Warmup manifolds installation manual.
• Use Warmup pipe bend supports
where the pipe exits the oor at
the manifold location.
• Following the projects working drawings, begin laying the pipe, pressing
the pipe into the channels.
4
5
• Before installing the pipework in
the panels it is advised to sweep
or vacuum the oor area to clear
any debris.
2
Econna-12 panels are structural, therefore additional pipe
channels must not be routed.
