35
OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
Zerstäuberluft
Atomizing air
Mat. Druckregler
Mat. pressure reg.
Pumpe
Pump
POWER
0 1
B_03364
2117
15
22
12
24
25
352010 911 6 1
16
18
13 14
19
23
2478
26
27

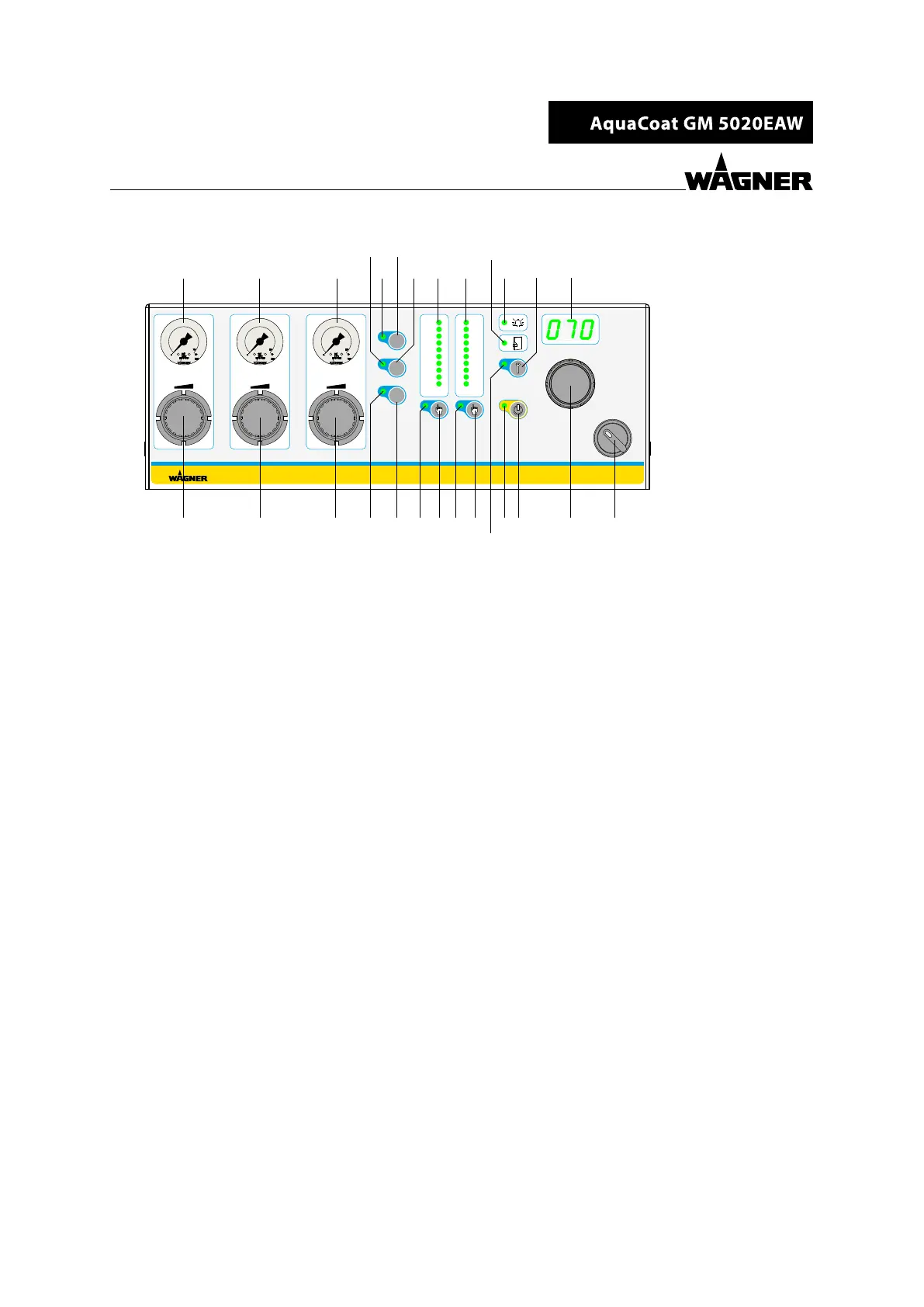

21 Illuminated display: "High voltage"
– Illuminates in green.
– Display range: 0-70 kV
– Single LED display: Nominal voltage.
– Bar display: Working voltage.
22 Illuminated display: "Spray current"
– Illuminates in green.
– Display range: 0–100 µA
– Single display: Spraying current limit.
– Bar display: Actual spraying current.
23 Illuminated display: "Door control"
– Illuminates in green when the cabinet door is closed.
24 Illuminated display: "Fault"
– Illuminates if there is a fault in the system.
25 Push button "Service"
26 Illuminated display: "Service"
27 LED display: 7 segments, three-digit number
– Indicates the target and actual values of high voltage and spray voltage.
– Display of error number about warnings and malfunctions.
– Information about the parameter setting.
