Technical Manual
WDGA with CANopen Interface
8 - Setting-up the encoder
© Wachendorff Automation GmbH & Co. KG
51
The next example shows how to use segmented SDO to write an 8 byte value into the
"High precision preset value" (object 6009h). This preset value will set the
corresponding "High Precision Position value" (6008h) to the designated value:
SDO write request for 8 bytes of data on object 6009h:
600h+ID
8
21h
00100001b
ccs=1,e=0,
s=1
09h
06h
00h
08h
00h
00h
00h
CAN-ID
DLC
Command
Object
L
Object
H
Sub-
Index
Byte0
Byte1
Byte2
Byte3
Table 8.25: SDO write access of object 6009h
The encoder confirms the segmented SDO transfer and requests the first segment:
580h+ID
8
60h
01100000b
scs=3
09h
06h
00h
00h
00h
00h
00h
CAN-ID
DLC
Command
Object
L
Object
H
Sub-
Index
Byte0
Byte1
Byte2
Byte3
Table 8.26: Acknowledgement of write access of object 6009h
Initializing segmented write access:

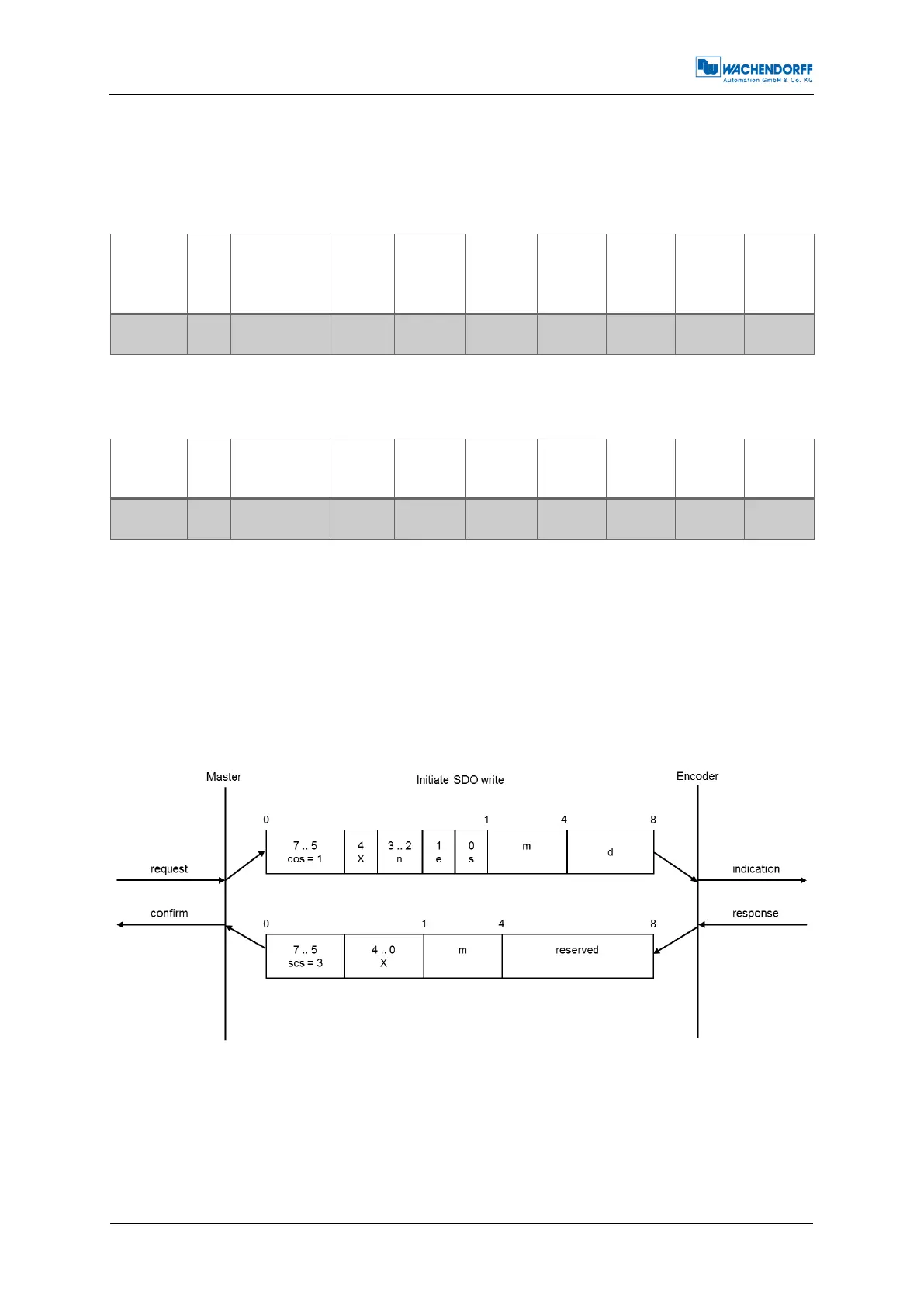

Figure 8.7: Initiate SDO write
