Technical Manual
speedMATE
4 - speedMATE Connect
© Wachendorff Automation GmbH & Co. KG
17
4.6 Advanced configuration

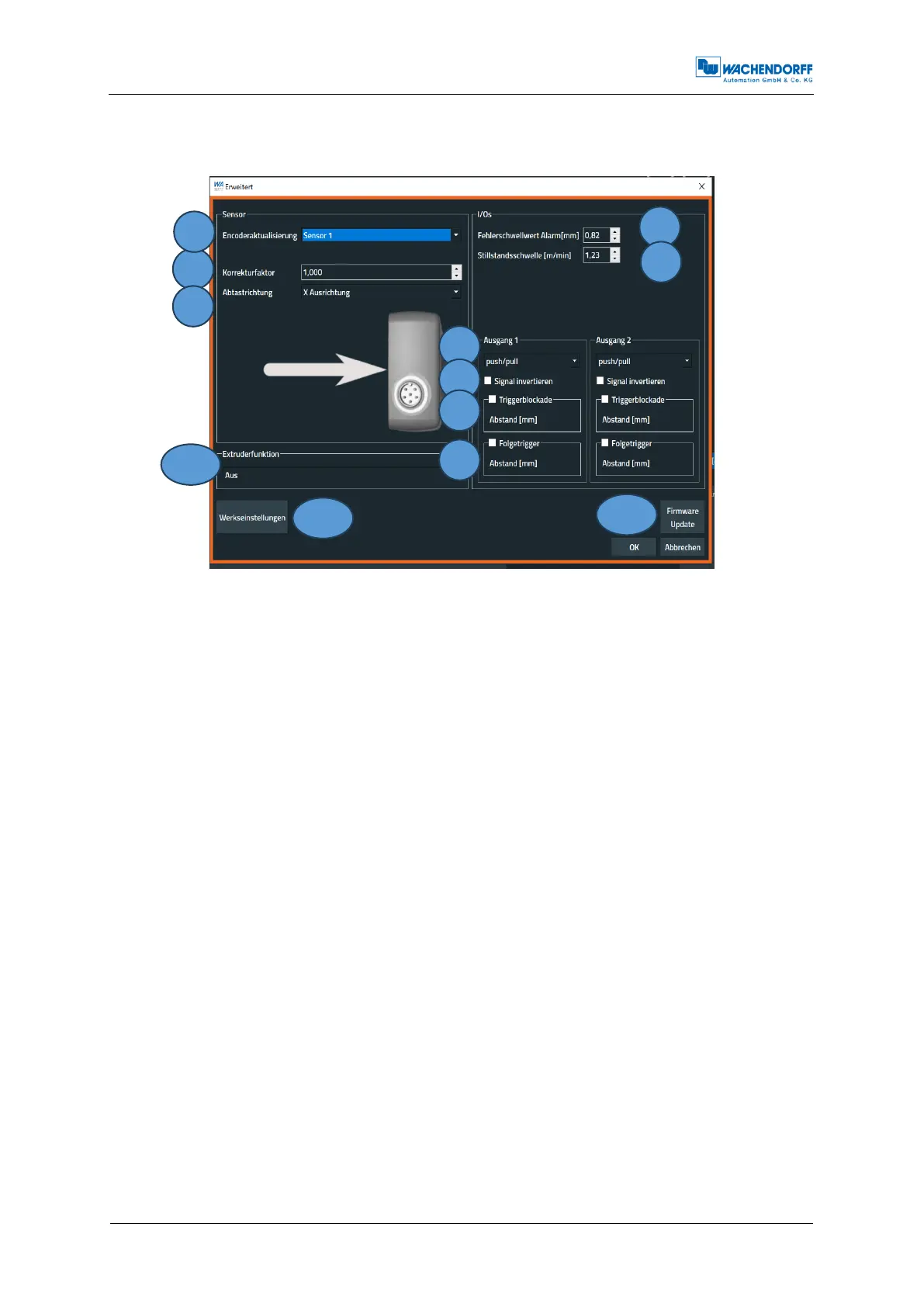

Figure 4.4: speedMATE Connect - Advanced configuration
1. Evaluation of the respective sensor. (For higher speeds or accelerations,
operation with only one sensor is recommended)
2. Calibration of the sensor to the exact speed.
3. Change between measuring directions X/Y
4. Limit value for triggering the error output if the difference between sensor 1 and
2 exceeds the set error threshold value.
5. Sensor sensitivity at standstill
6. Signal type trigger (npn / pnp / pushpull)
7. Change of trigger signal (high / low)
8. Suppresses all pulses within the specified distance that would be caused by a
standstill.
9. Outputs trigger pulses consecutively, even without a standstill.
10. After resetting to factory settings, the sensor must be restarted by
acknowledging the message.
11. After the update, the sensor must be restarted by acknowledging the message.
12. Blocks a backward movement of a product and continues counting the pulses
from this point when the forward movement resumes
2
3
4
5
6
7
8
9
10
11
12
1
