User manual - MA964802 11

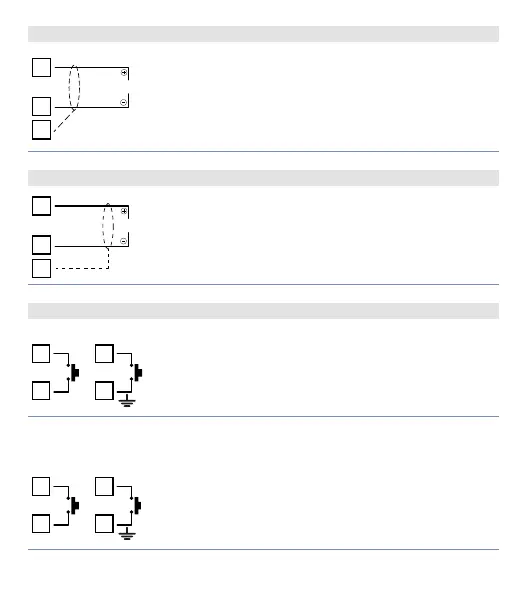

6.1.b COM1 serial port (Modbus master)
RS485
9
15
16
Shield/Schermo
COM1 B+
COM1 A-
COM1 C
For connection to Modbus slave devices
• RS485 interface
• 1/4 line load (up to 128 nodes on bus)
• Common mode power supply +/-25V
• Protection from failure +/-60V
• Modbus master or multimaster protocol
• RTU and Ascii mode.
6.1.c COM2 serial port (Modbus slave)
RS485
8
14
10
Shield/Schermo
COM2 B+
COM2 A-
COM2 C
For connection to a Modbus master device
• RS485 interface
• 1/4 line load (up to 128 nodes on bus)
• Common mode power supply +/-25V
• Protection from failure +/-60V
• Modbus slave RTU protocol
6.1.d Digital input DI.1
11
18
+24 V DC
PNP
DI.1
18
10
NPN
DI.1
•
PNP conguration
, to activate input DI.1, short circuit
terminals 11 (+24 Vdc) and 18 (DI.1).
(
Activation Vi > 8.7V Deactivation Vi < 7.2V
)
•
NPN conguration
, to activate input DI.1, short circuit
terminals 10 (GND) and 18 (DI.1).
(
Activation Vi < 7.2V Deactivation Vi < 8.7V
)
Digital input DI.2
11
12
+24 V DC
PNP
DI.2
12
10
NPN
DI.2
•
PNP conguration
, to activate input DI.2, short circuit
terminals 11 (+24 Vdc) and 12 (DI.2).
(
Activation Vi > 8.7V Deactivation Vi < 7.2V
)
•
NPN conguration
, to activate input DI.2, short circuit
terminals 10 (GND) and 12 (DI.2).
(
Activation Vi < 7.2V Deactivation Vi < 8.7V
)
