12 MA964802 - User manual

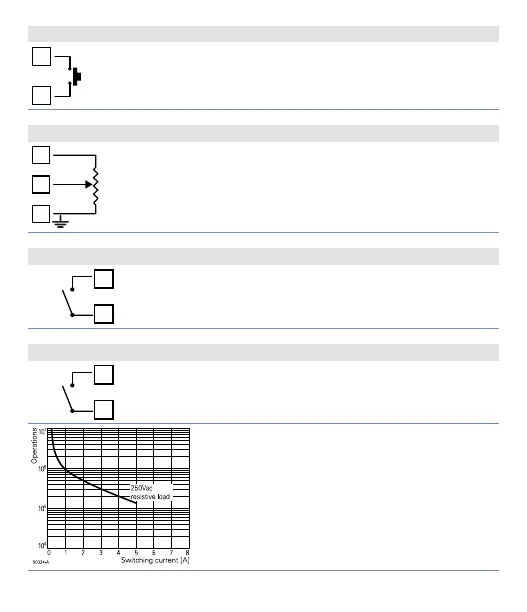

6.1.e Digital input DI.3
11
7
+24 V DC
DI.3
To activate input DI.3, short circuit the terminals 11
(+24 Vdc) and 7 (DI.3).
(
Activation Vi > 12.1V Deactivation Vi < 12.0V
)
6.1.f Potentiometer
11
10
17
+24 V DC
AI.1 Min 1k˜
For linear potentiometers
.
• Use potentiometers with a resistive value greater than
1KΩ.
• When using a shielded cable, the shield must be
connected to terminal 10 (GND).
6.1.g Q1 Relay Output
3
Q1
2A
230V
1/8Hp
4
2 A / 250 Vac contacts capacity for resistive loads.
NB
: see graph below
6.1.h Q2 Relay Output
1
Q2
2A
230V
1/8Hp
2
2 A / 250 Vac contacts capacity for resistive loads.
NB
: see graph below
Electrical endurance Q1 / Q2.
2 A, 250 Vac, resistive load, 10
5
operations.
20/2 A, 250 Vac, cosφ = 0.3, 10
5
operations.
