2. Install outer door housing assembly as outlined
in DOOR HANDLE INSTALLATION.
3. Check opening and closing operation of door.
4. Check steamer for proper operation and leaks
around door seal.
DOOR HINGE BEARINGS
Disconnect the electrical power to
the machine and follow lockout /
tagout procedures.

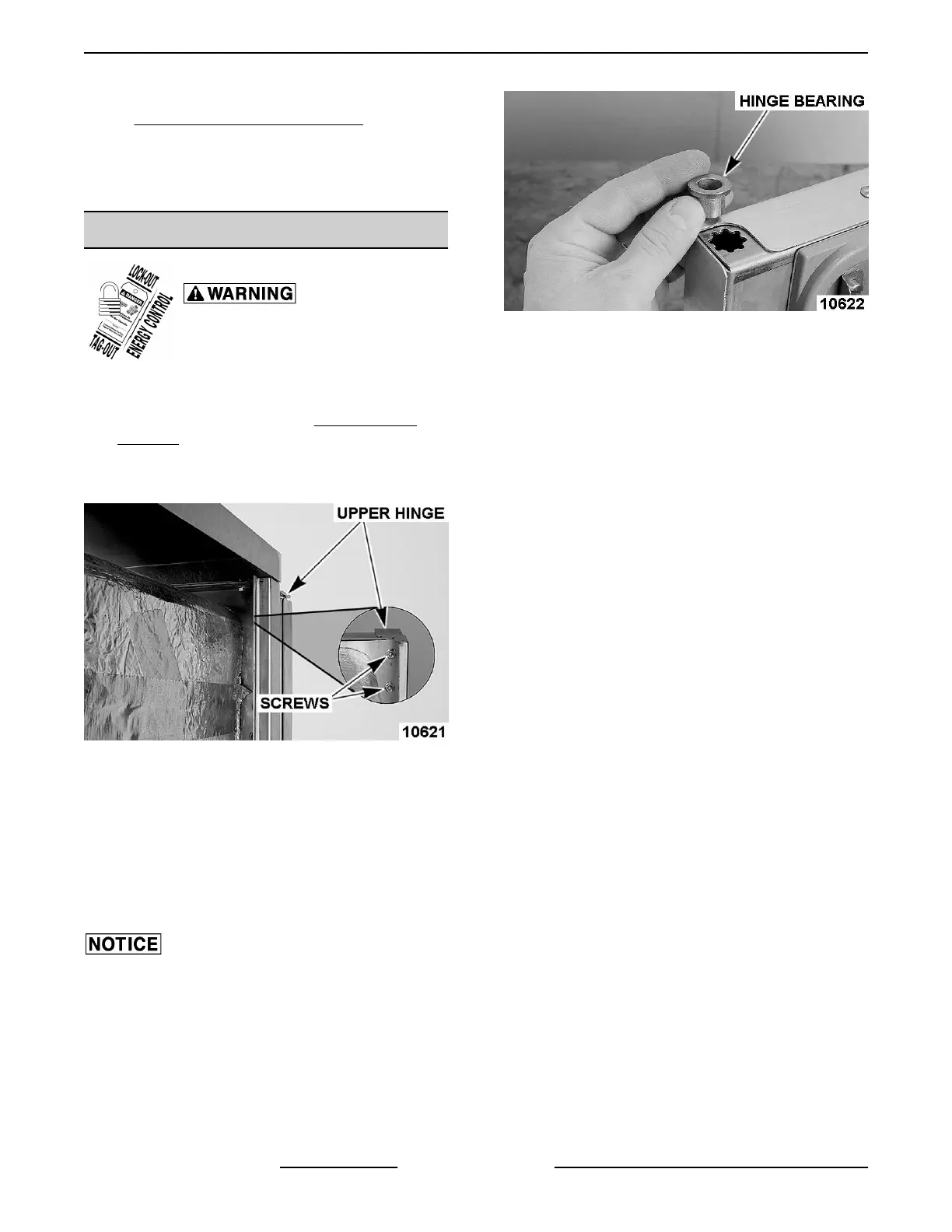

1. Close door.
2. Remove left side panel, see COVERS AND
PANELS.
3. Remove nuts from upper hinge located inside
front panel.
Fig. 45
4. Open door slightly, and while holding door, pull
upper hinge away from front panel.
5. Pull upper hinge out of upper door hinge bearing.
6. Lift door assembly up and off lower door hinge.
7. Pry hinge bearing out from door assembly.
8. Remove outer door housing.
Do not drive bearing into place. The inner door panel
could be damaged. Press bearing into position.
NOTE: When replacing door hinge bearings, replace
both hinge bearings.
9. Position replacement hinge bearing over hinge
opening in door assembly.
Fig. 46
A. Press hinge bearing fully into door assembly
using a C-clamp or equivalent.
10. Reassemble parts removed in reverse order.
11. Check door for fit and proper door gasket sealing.
C24EO SERIES ELECTRIC COUNTERTOP STEAMERS - REMOVAL AND REPLACEMENT OF PARTS
F25386 Rev. C (0421) Page 20 of 43
