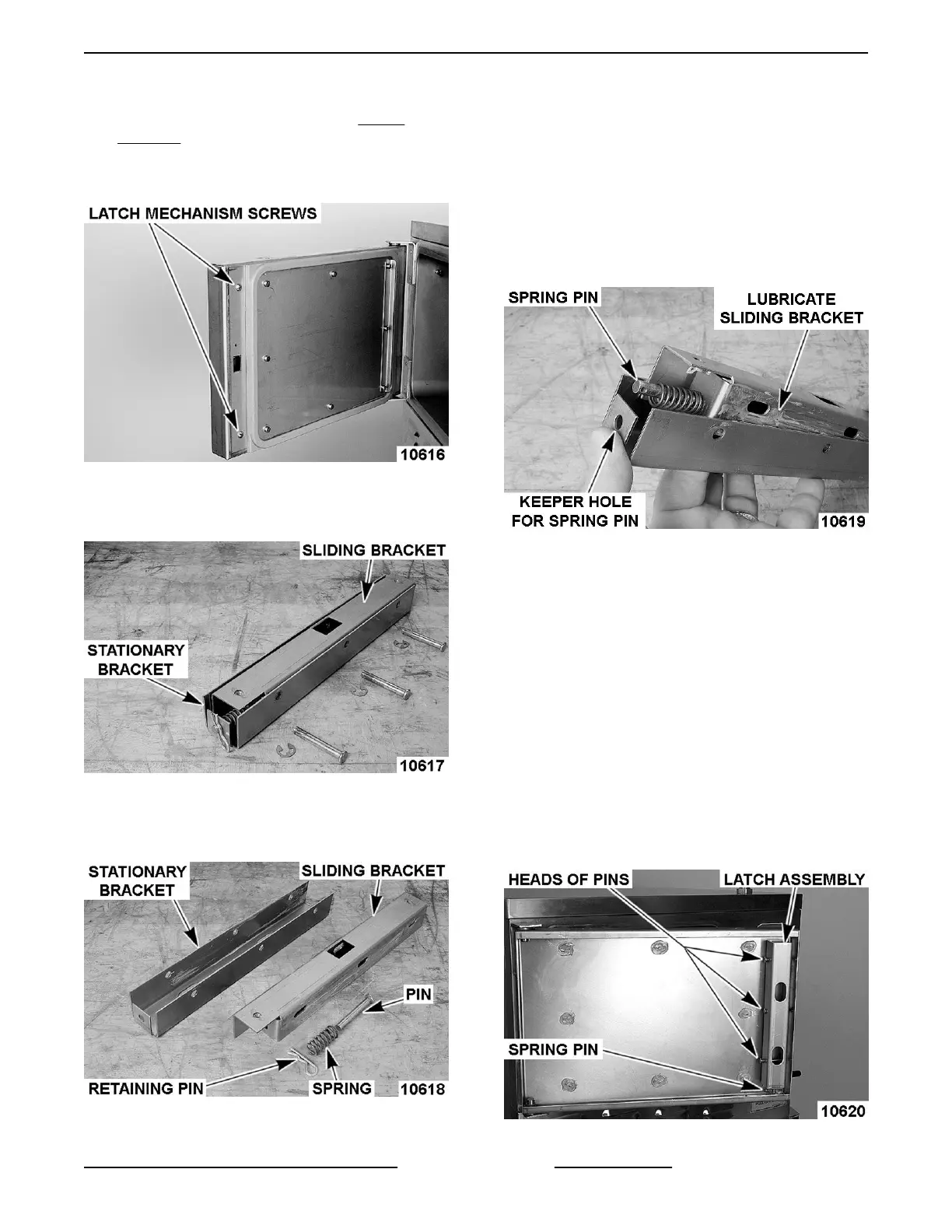

1. Separate outer door housing assembly from
inner door panel as outlined under DOOR
HANDLE.
2. Remove screws securing latch assembly to inner
door panel and remove latch mechanism.
Fig. 40
3. Remove E-clip from latch assembly pins and pull
pins from latch mechanism.
Fig. 41
4. Remove retaining pin from spring pin.
5. Separate sliding bracket from stationary bracket.
Fig. 42
ASSEMBLY
1. Apply Lubriplate 630AA to sides of sliding
bracket.
2. Insert spring pin into bottom of sliding bracket.
A. Place spring over spring pin.
3. Assemble sliding bracket into stationary bracket.
4. While holding head of spring pin against bottom
of sliding bracket, insert spring pin into keeper
hole in bottom of stationary bracket.
Fig. 43
A. Secure spring pin in place with retaining pin.
NOTE: Install pins such that heads of pins will be
facing inward toward hinge side of inner door panel
when latch assembly is installed.
5. Install pins to assemble stationary and sliding
brackets together.
A. Secure pins into position with E-clip.
INSTALLATION
1. Install latch assembly onto inner door panel with
spring pin toward bottom of door panel.
A. Apply Loctite 271 to threads of screws
before assembly and secure latch assembly
to inner door panel.
Fig. 44
C24EO SERIES ELECTRIC COUNTERTOP STEAMERS - REMOVAL AND REPLACEMENT OF PARTS
Page 19 of 43 F25386 Rev. C (0421)
