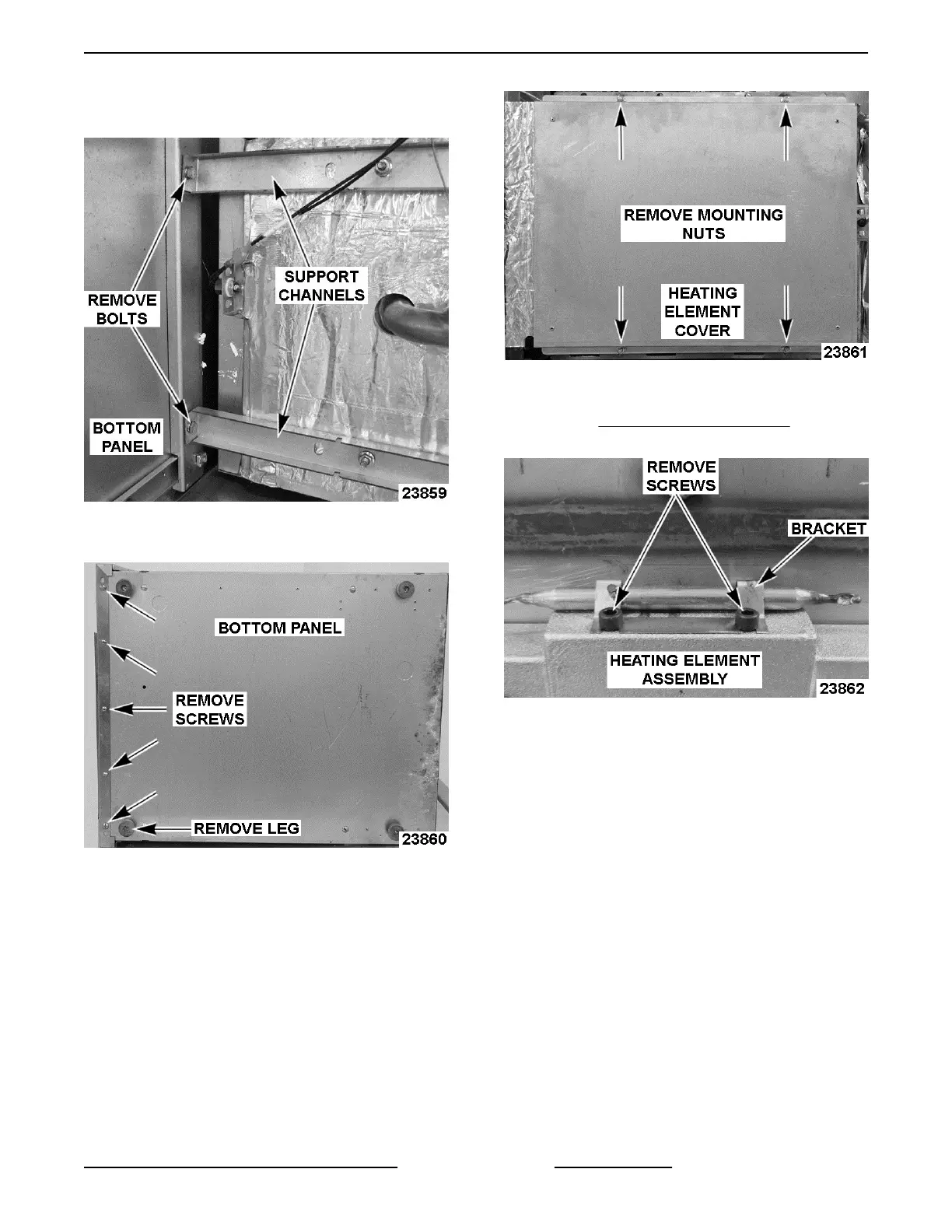

11. Remove bolts securing support channels to
bottom panel.
Fig. 19
12. Remove left front leg and bottom panel.
Fig. 20
13. Remove heating element cover.
Fig. 21
14. Remove heating element from steamer cavity.
Refer to: HIGH LIMIT THERMOSTAT. Discard all
element mounting hardware after removal.
Fig. 22
Heater Installation
NOTE: When performing heater Installation for 3 pan
unit with 240V supply, disconnect and insulate
element leads with orange, green, and red markers
(three 664W elements not used).
NOTE: Scrape off as much of the old thermal transfer
compound from underside of cooking compartment as
possible before installing replacement heater
element.
1. Completely and evenly coat contact face of
heating element assembly with thermal transfer
compound using notched trowel. Use
approximately one 13.5 oz. tube of thermal
transfer compound to cover the surface.
C24EO SERIES ELECTRIC COUNTERTOP STEAMERS - REMOVAL AND REPLACEMENT OF PARTS
Page 13 of 43 F25386 Rev. C (0421)
