Blower Air Pressure (COLD)
NOTE: Initial adjustment of blower air pressure should only be made from a cold starting condition.
1. Turn gas supply off.
2. Remove Cabinet Base Front Panel.
3. Remove plug on the outlet side of gas valve and install manometer. Refer to Fig. 45.

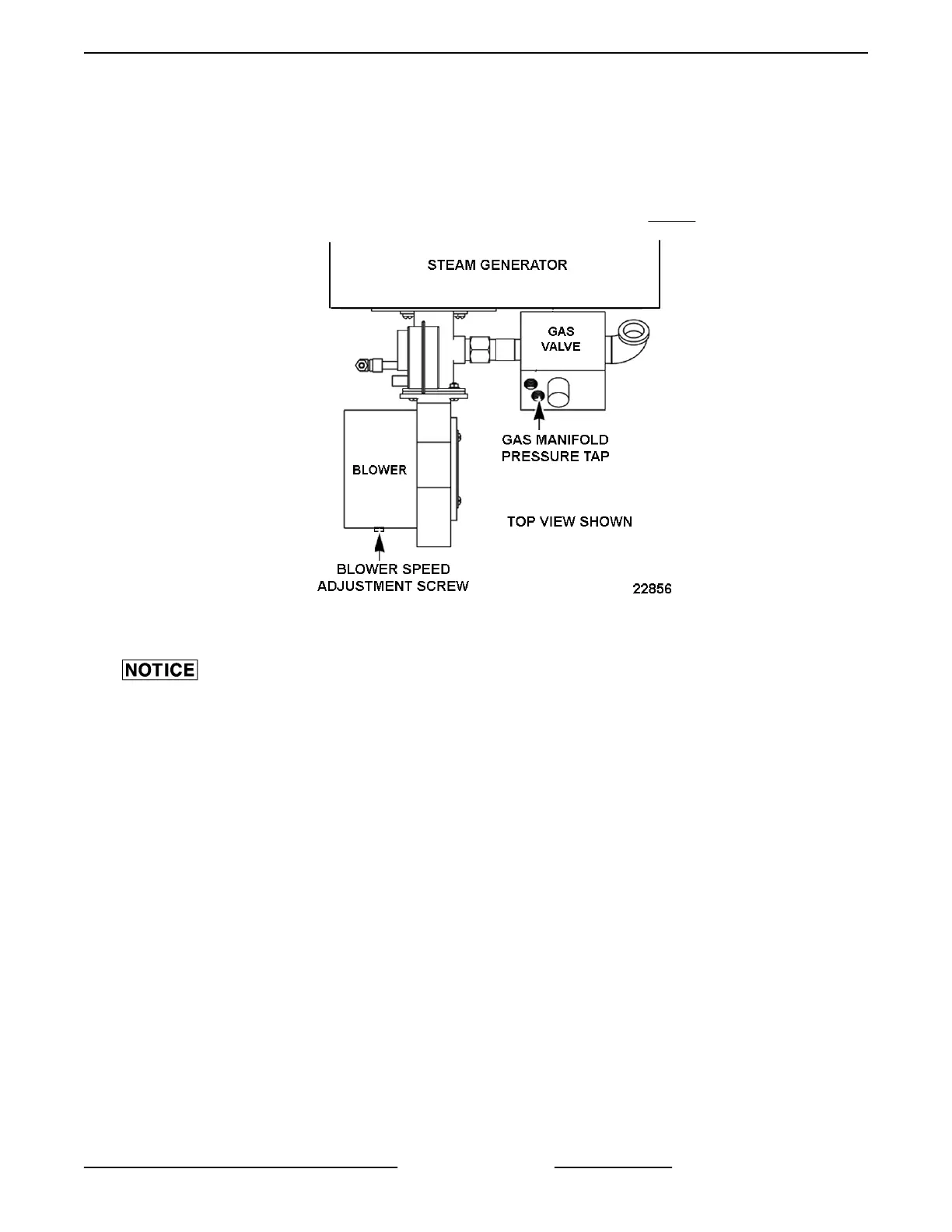

Fig. 45
4. Disconnect 24VAC transformer lead wire.
Disconnecting 24 VAC transformer lead wire will prevent ignition sequence from starting when power switch
is on.
5. Verify manometer reading is zero.
NOTE: If ignition module is powered up when checking blower settings it will also affect the blower speed.
6. On Older Machines Only, to access blower speed adjustment screw:
A. Remove 4 screws securing blower shroud to blower.
B. Re-install screws only and continue with next step.
7. Connect power to machine and turn main power switch on.
8. Allow steam generator to fill (approximately 3 to 5 minutes).
NOTE: When water level reaches the low level cut off probe (LLCO) the blower will turn on but ignition module
will not begin sparking to light main burner.
9. Check blower air pressure.
• Reading should be 0.33" to 0.35" WC (cold). If pressure is not correct, adjust blower speed potentiometer
as necessary to achieve correct pressure (clockwise to increase, counterclockwise to decrease).
10. Disconnect power from machine. Leave power switch on to prevent steam generator from draining.
A. Connect 24 VAC transformer lead.
B. Turn gas supply on and connect power to machine (ignition sequence will immediately start). If ignition
module has status LED(s), the ignition sequence can be monitored via LED flash codes.
C24GA AND C24DA SERIES CONVECTION STEAMER - SERVICE PROCEDURES AND ADJUSTMENTS
Page 23 of 65 F35425 Rev. E (0119)
