14
Oscilloscope Inspection
1. Set the Switch in the Oscilloscope Probe as 10X and Connect the
Oscilloscope with CH1 Channel.
Align the slot in the probe with the plug in the CH1 connector BNC, and then
tighten the probe with rotating it to the right side.
Connect the probe tip and the ground clamp to the connector of the probe
compensator.
2. Perform AutoSet.

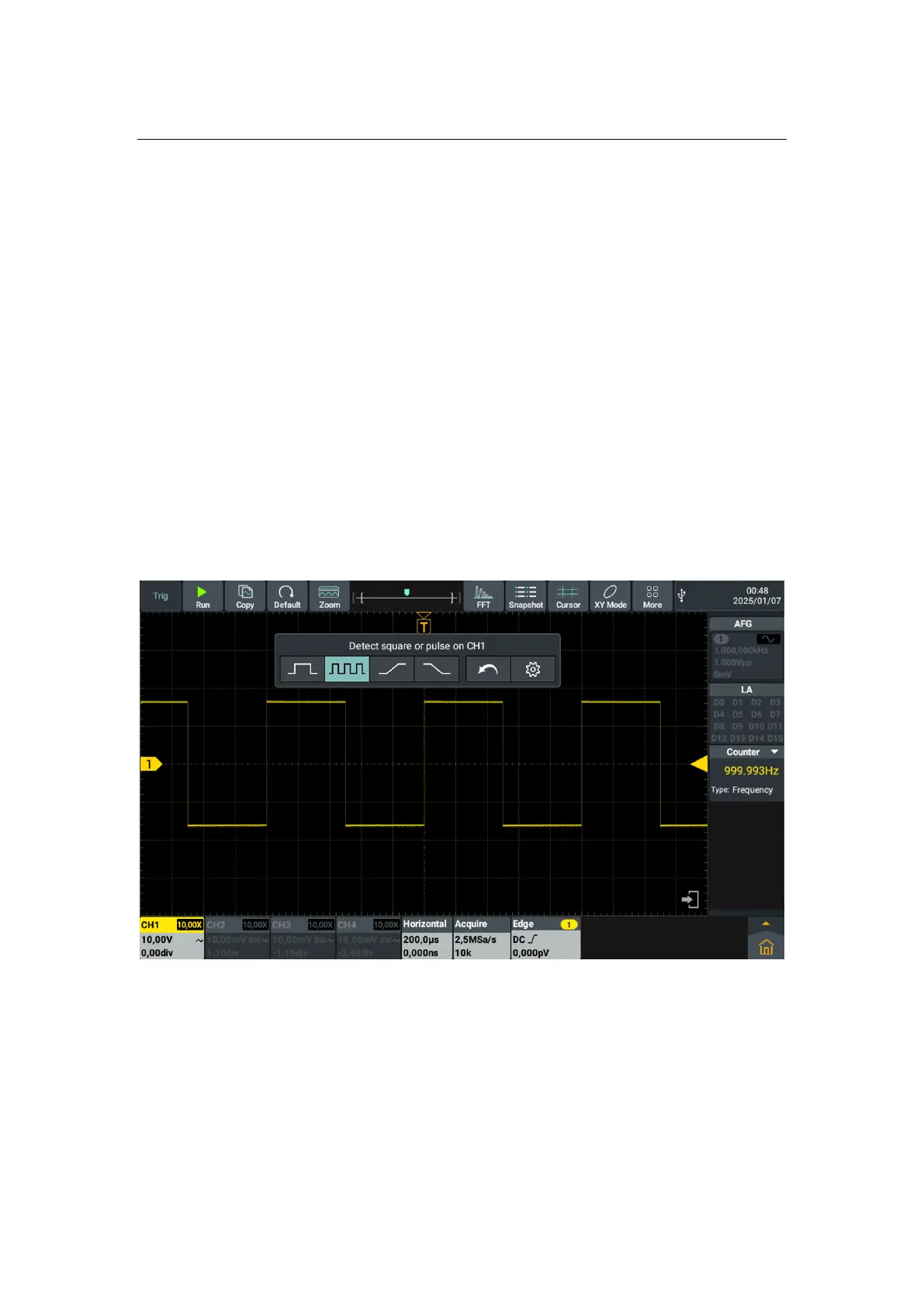

The square wave of 1 kHz frequency and about 3.3V peak-peak value will
be displayed in several seconds (see Figure 3-4). Check CH2, CH3 and
CH4 by repeating Step 2 and Step 3.
Figure 3-4:AutoSet
How To Implement The Probe Compensation
When connect the probe with any input channel for the first time, make
this adjustment to match the probe with the input channel. The probe which is
not compensated or presents a compensation deviation will result in the
