Getting Connected cont...
13
The GIG MAN has one guitar (1/4"), one keyboard (1/4") and two microphone (1/4"/XLR). Remember that both the XLR and ¼" cannot be used
simultaneously.
To connect MICROPHONES via ¼" mic cables, connect the XLR-end of the cable into the MICROPHONE until it locks into place and connect the ¼"
plug into either of the MIC 1 or 2 jacks on the GIG MAN.
To connect MICROPHONES via XLR mic cables, connect the XLR-F end of the cable into the MICROPHONE until it locks into place and connect the
XLR-M end into either of the BALANCED MIC 1 or 2 jacks on the GIG MAN's rear panel.
To connect a GUITAR, connect a ¼" instrument cable from the GUITAR's ¼" output to the GIG MAN's ¼" GUITAR input.
To connect a KEYBOARD, connect a ¼" instrument cable from the KEYBOARD's ¼" output to the GIG MAN's ¼" KEYBOARD input.
Intsruments
AC Device Connections
The GIG MAN has an AC power outlet on the rear panel to provide power to a connecting device. Please note that a device with a power
consumption rating over 200W should not be connected as that exceeds the allowable power feed. Doing so may cause serious damage to
both devices and may void your warranty.
Microphone/Instrument Input Connection
After making your main system connections, it is time to get your microphones and instruments connected and ready for performing. Before you get
started with your connections we recommend to take the following tips into consideration:
When connecting instruments, refrain from using defective cables as they can cause significant noise and loud pops, posing a threat to system
speakers.
When using effects devices for instruments, such as pedals/stomp boxes, use caution when connecting a chain of multiple effects devices as the
output voltage may change and possibly overload the GIG MAN's input channel.
When connecting a guitar, longer cables are recommended to prevent guitar feedback from occurring
LOW HI ECHO
MIC EFFECTS
REPEAT
DELAY
VOCAL
CANCEL
VOCAL
PARTNER
MIC1 MIC2 VOL1 VOL2
MIC VOLUME
GUITAR
VOL.
KEYBOARD
VOL.
HEADPHONES
VOL.
AV3 INPUT
PLAYER KEY CONTROLLER
b
#
MUSICC VOLUME
REPEAT
L/R
MUTE
F-SCAN
B-SCAN
NEXT
PREV
PBCSTOP
PAUSE
PLAY
EJECT
DIGITAL AUDIO
COMPACT
DIGITAL AUDIO
COMPACT
PRO DIGITAL ECHO
MULTI-FORMAT PLAYER/MIXING AMPLIFIER
INPUT
AV1
AV2
AV3
POWER
STANDBY
GIGMAN
VCD
EQ ON
EQ OFF
MUSIC EQ
60Hz
+12dB
-12dB
0dB
+12dB
-12dB
0dB
200Hz400Hz
1KHz 3KHz
6KHz
16KHz
60Hz200Hz400Hz
1KHz 3KHz
6KHz
16KHz

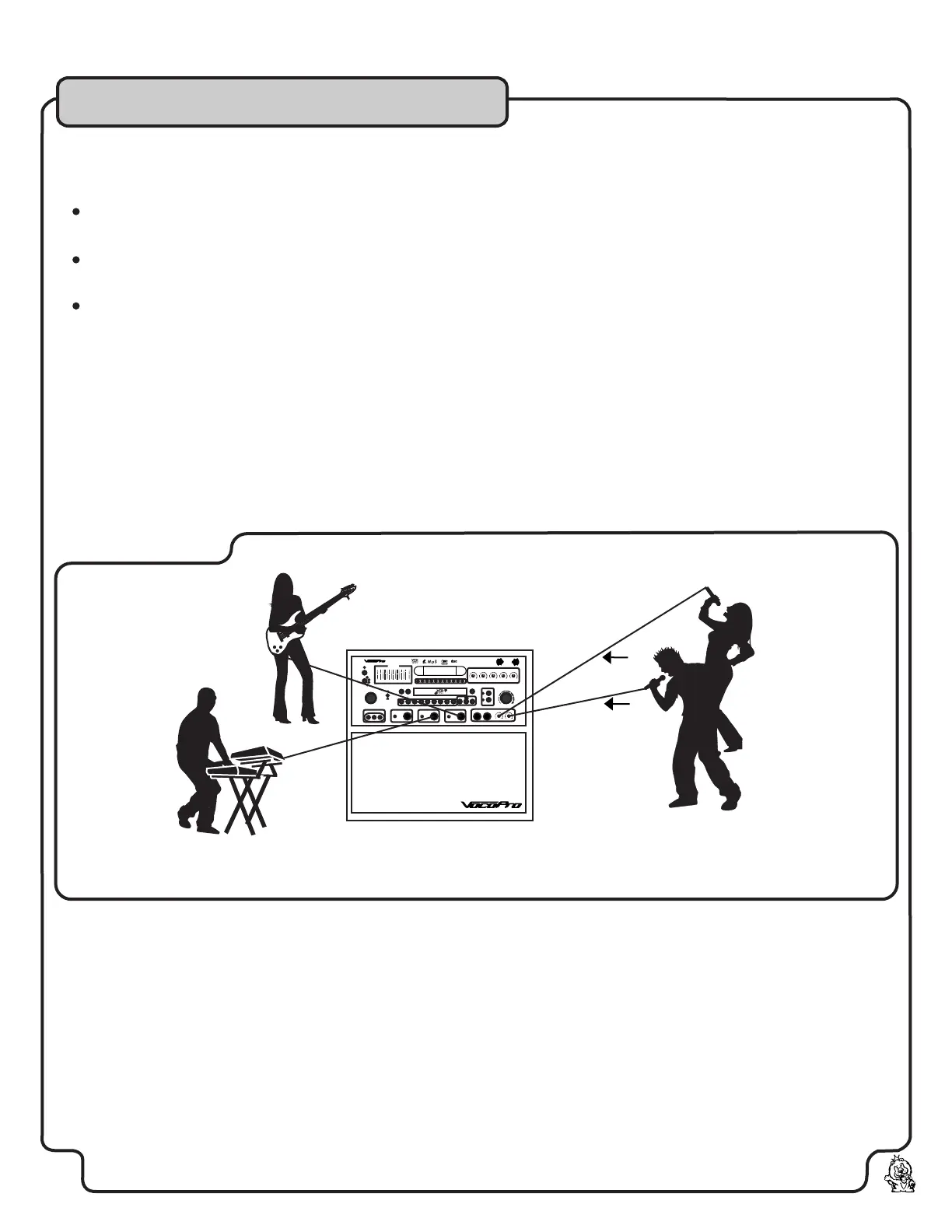

To Mic 1 Input
To Mic 2 Input
*The Balanced XLR
Mic Inputs on the Rear
Panel Can Be Used
Instead of the 1/4" Mic
Inputs
