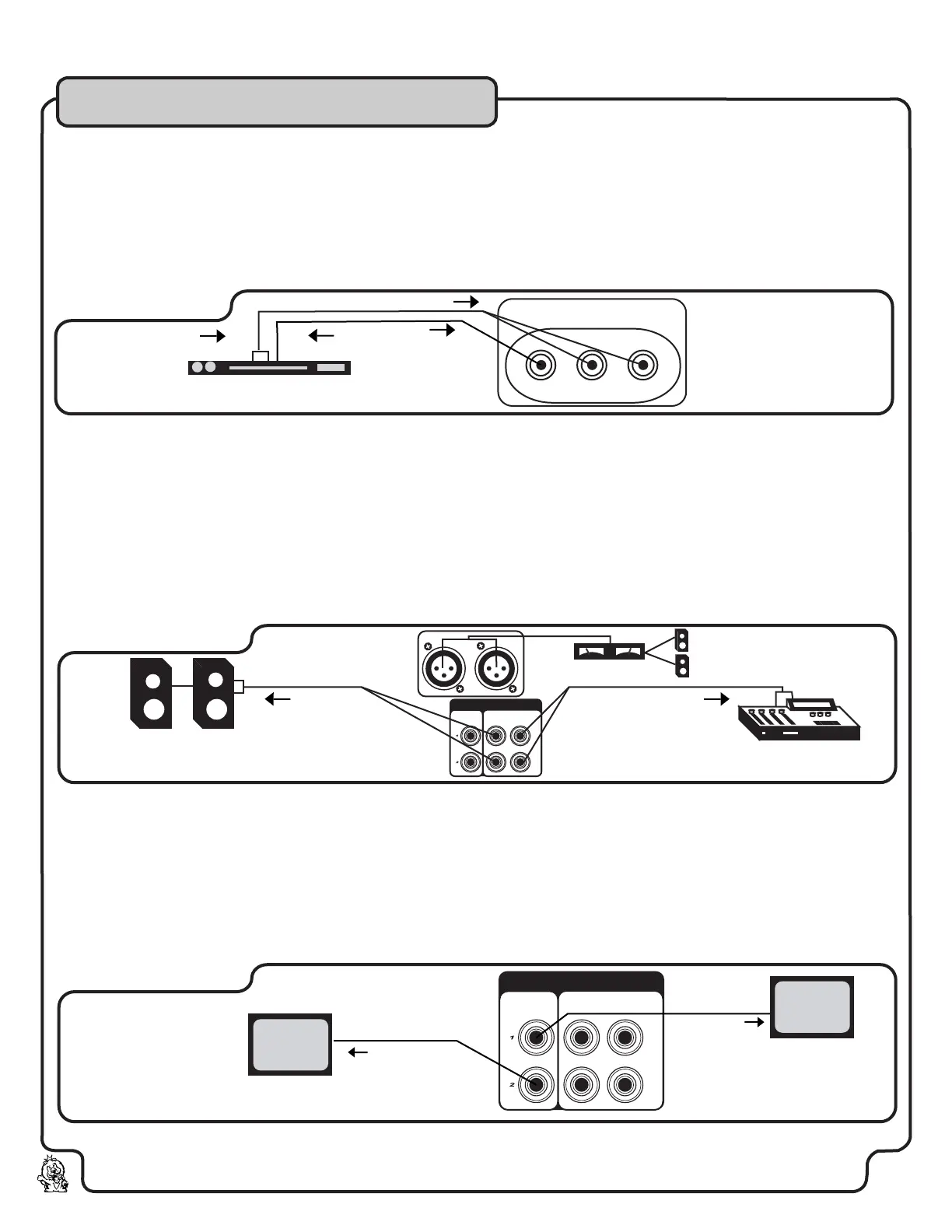

Getting Connected
AV Input Connections
12
To connect an AV source player, use an RCA-type AV cable with red, white and yellow colored plugs.
For AUDIO, connect the L and R AUDIO OUTPUT jacks from the source player to the L (white) and R (red) AUDIO INPUT jacks on the GIG MAN, using
the AV channel of your choice.
For VIDEO, connect the VIDEO OUTPUT jack on the source player to the yellow VIDEO INPUT jack on the GIG MAN, using the same channel you
connected the audio to.
Audio Output Connections
To connect audio output to external devices, there are three available channels: AUDIO OUTPUT 1 & 2 (RCA) and BALANCED AUDIO OUTPUT (XLR).
All three OUTPUTS can be connected simultaneously
For AUDIO OUTPUT 1 & 2, using an RCA-type audio cable, connect the left and right AUDIO/LINE/AUX INPUT jacks on the external device to the left
and right AUDIO OUTPUT 1 or 2 jacks on the GIG MAN.
For BALANCED AUDIO OUTPUT, using two XLR-type audio cables, connect the left and right AUDIO/LINE IN jacks on the external device to the left
and right BALANCED AUDIO OUTPUT jacks on the GIG MAN's rear panel.
Video Output Connections
The GIG MAN has two VIDEO OUTPUT channels with RCA-type jacks for connection to TV's or monitor devices.
To connect VIDEO, using an RCA-type patch cable, connect the VIDEO IN jack of your television or monitor device to either the VIDEO OUT 1 or 2
jacks on the GIG MAN. Both VIDEO OUTPUTS can be connected simultaneously
AV Input
Audio Output
Video Output
A/V Device
To Audio Out
AV3 INPUT
To Video Out
To Audio In
To Video In
AUDIENCE
TV
To Video In
VIDEO
OUT
AUDIO
OUT
L
R
POWERED STAGE
MONITORS
VIDEO
OUT
AUDIO
OUT
L R
To Audio In
To Audio In
STAGE
TV
To Video In
External Amplifier
Recording Device
