Getting Connected
TV/MONITOR
VCR
RF Output
TV Antenna In
Video Out
Video In

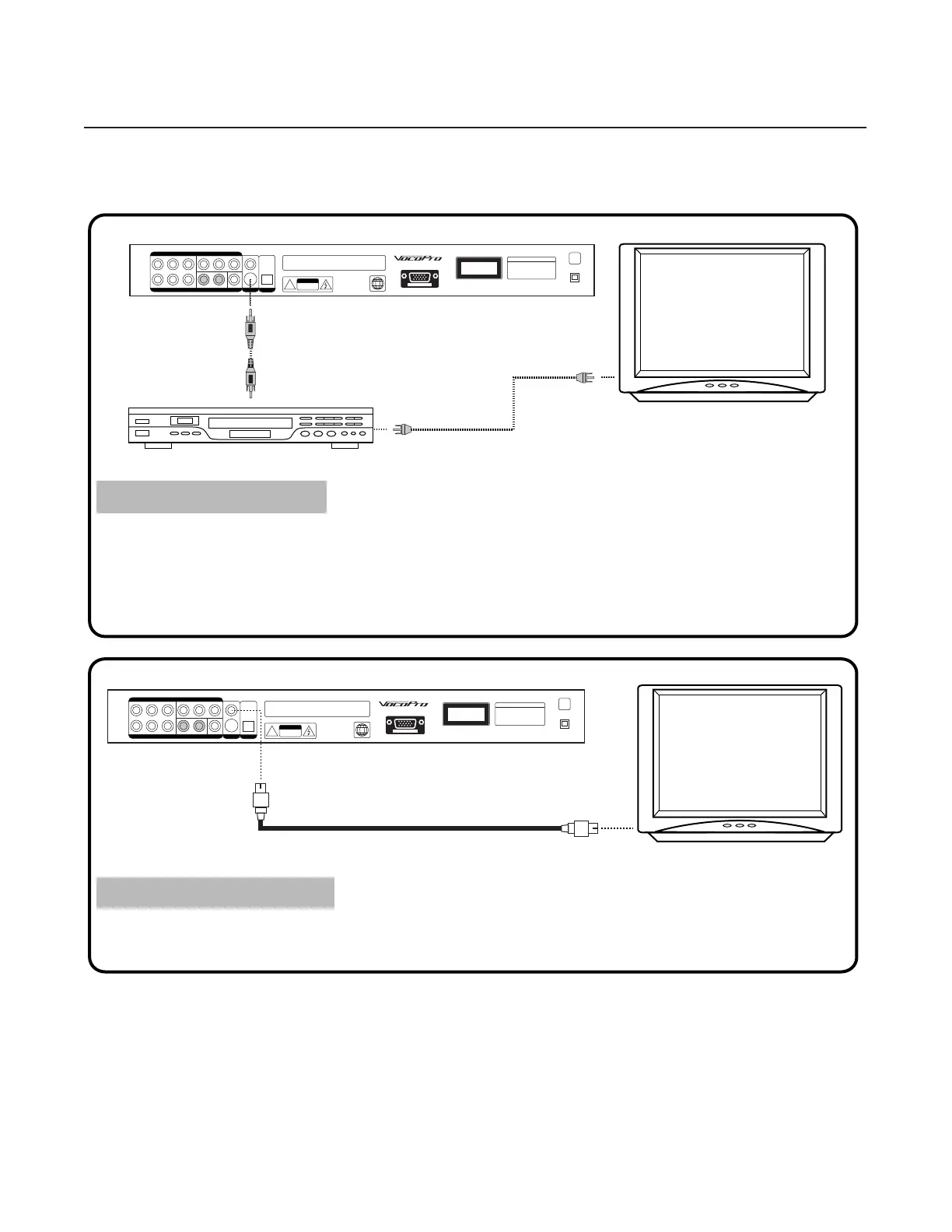

Connecting to a TV with a VCR
You can also use a VCR to connect video to a TV with no RCA video input. You will need an RCA cable and
a 75-ohm "coaxial" type cable. Using the RCA video cable, connect one end to the VIDEO OUTPUT jack on
the DVG-380K and connect the other end of the cable to the VIDEO INPUT of a VCR. Then, using the
75-ohm "coaxial" type cable, connect one end to the RF OUTPUT of the VCR, and connect the other end to
the 75-ohm TV ANTENNA INPUT jack.
TV
Cable not included
Connecting to a TV with S-Video
Using an S-Video cable, connect one end to the DVG-380K’s S-VIDEO OUTPUT jack and connect the
other end to the S-VIDEO IN jack on your television.
